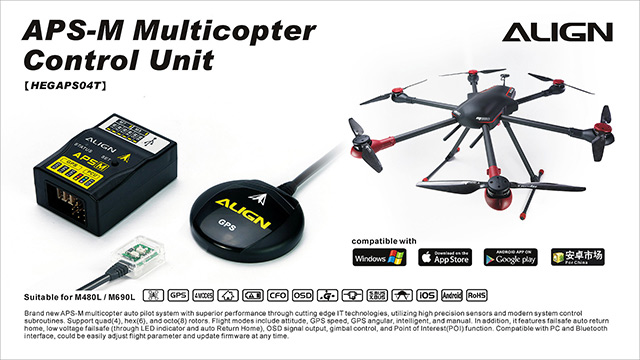

ALIGNRC APS-M Multicopter Control Unit ALIGN APS-M 멀티콥터 컨트롤러. 탁월한 비행 성능으로 호평 받은 ALIGN사의 APS-M 멀티콥터 컨트롤러 시스템. 현존하는 대부분의 디지털 버스를 지원 합니다! ●Suitable for M480L / M690L or 4 rotors +, 4 rotors X, 6 rotors +, 6 rotors X...Multicopters
●Brand new APS-M multicopter auto pilot system with superior performance through cutting edge IT technologies, utilizing high precision sensors and modern system control subroutines.
●With higher performance, precision sensors and superior reliability platform.
●Equipped with automatic return home function with remote activation ability from R/C transmitter. When RC transmitter signal is lost, multicopter will automatically fly back to home position.
●APS-M provides 3 intelligent flight modes: CFO, HCL, and POI.
●Provides real-time OSD flight data output function.
●RoHS certified.
●Compatible with PC and Bluetooth interface, could be easily adjust flight parameter and update firmware at any time.
●Also fully support with Futaba, Spektrum and JR S. BUS/S.BUS and DSM2/DSMX/DSMJ/DMSS system.
●APS-M Multicopter Control Unit Download:(Click) 본 제품을 사용하기 위해서는 별도의 PCU가 필요합니다.
<제 원> ●Input Voltage:DC4.5V~8.4V.
●Operating Current Consumption:<250mA@ 4.8V.
●Operating Frequency:400Hz
●Operating Temperature:-20° ~ 65°C(-4° ~ 149 °F)
●Hovering Precision (Depending on Satellite Status):Horizontal ±1m, Vertical ±1m
●Highest Flight Speed:Horizontal 15m/sec, Vertical 6m/sec
●Maximum Altitude Restriction:700m(2297ft) above the takeoff point
●Maximum Angular Speed:ALE 115° /sec, ELE 115° /sec, RUD 145° /sec
●Maximum Tilting Angle:30 degrees
●Supports External Peripherals:G2 / G3 Gimbal、OSD+FPV Video Transmitter
●Supports Multicopter Configurations: 4 rotors +, 4 rotors X, 6 rotors +, 6 rotors X, 8 rotors +, 8 rotors X
●Dimension / Weight: 49x34.3x20mm / 21.27g <구 성 품> ●APS-M Multicopter Control Unit x 1
●APS-M Signal Wire Set ×1 (around 280mm)x 1
●APS-M Signal Wire x 3
●External Status LED x 1
●Multicopter GPS Sensor x 1
●USB Cable Set x 1
●External Status LED Sided Mounting Tape x 2
●APS-M Sided Mounting Tape x 2
●GPS Sided Mounting Tape x 2
|
