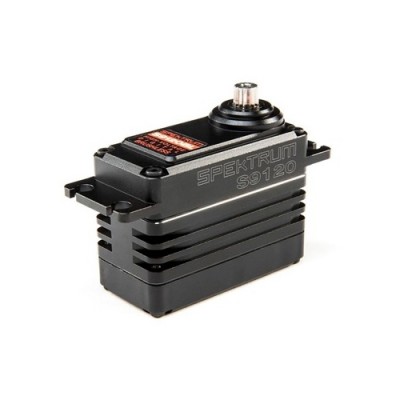

The Spektrum S9120BL 1/5 Digital Brushless High Speed High Torque Metal Gear Servo was developed to give 1/5 enthusiasts the huge torque and precision that can only come from brushless technology. Starting with a full aluminum case design with improved support for pins holding the gears, and an aluminum top plate with re-designed bearing house, the S9120 is tough. Brushless motor technology delivers more power than any previous Spektrum servo – the S9120 is rated at 1454 oz-in of torque, with a speed of 0.21 sec/60? at 8.4V. Additional improvements include a stealth black design and a thicker 18awg detachable wire. Plus, this servo is already race proven, having won the 2020 1/5 Worlds Buggy Class at So Cal Nitro.

Specifications:

Application: 1/5 scale off-road

Bushing Or Bearing: Bearing

Connector Wire Gauge: 18 AWG

Connector Wire Length: 6 in (152mm)

Deadband: Micro sec: <1

Gear Material: Steel

Height: 1.84 in (27.2mm)

Length: 2.47 in (62.7mm)

Motor Type: Brushless

Servo Operating Voltage: 6.0 - 8.4V (HV)

Servo Size Category: Custom

Speed: 0.29 sec/60 deg @ 6.0V, 0.23 sec/60 deg @ 7.4V, 0.21 sec/60 deg @ 8.4V

Spline Count: 15 Teeth (15T Mega)

Torque: 1173oz-in (84.47 kg-cm) @ 6.0V, 1209 oz-in (87.06 kg-cm) @ 7.4V, 1453.5 oz-in (104.66 kg-cm) @ 8.4V

Type: Surface

Weight: 6.3 oz (178.6g)
