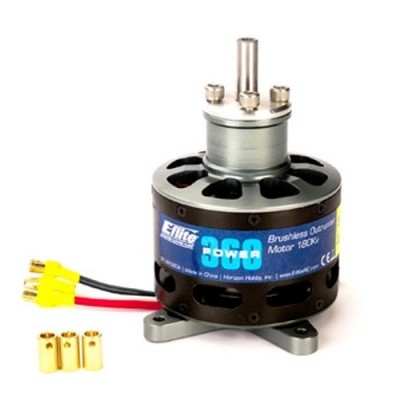

[E-FLITE] Power 360 Brushless Outrunner Motor, 180Kv 초대형 토크형 모터
판매가격499,000 원회원 가입시 추가 할인
적립금4,990 원
물류창고
C
재고 물류창고 ∞개있음
상품번호QA19444※ 전화문의시 상품번호를 알려주세요
위에서 옵션을 선택하세요.
구매 수량
바로구매
장바구니
실시간 카톡 문의
Email Us
Contact Us

장바구니 담기
장바구니에 담았습니다.
지금 확인하시겠습니까?
장바구니 보기   계속 쇼핑하기
이미지 상품명 선택
기타 필요한 옵션상품 총합계:
0원
옵션 상품을 포함하여 장바구니 담기 >

믿을 수 있는 팰콘샵, 6가지 안심 약속

99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004

Features


  • Ideal for giant-scale airplanes requiring up to 6000 watts of input power
  • High-torque alternative to inrunner brushless motors
  • Designed in collaboration with World Aerobatic Champion Quique Somenzini
  • Equivalent to a 50cc–60cc gas engine
  • For high-power airplanes weighing 15 to 25 pounds (6.8 to 11.0 kilograms)
  • External rotor design for better cooling
  • Includes 4-bolt propeller mount, 12mm prop shaft center-tapped with 10–32 threads
  • High-quality construction with ball bearings and hardened 10mm steel shaft
  • Includes X-mount and 6.5mm gold bullet connectors
  • Slotted 20-pole outrunner design
  • Requires 160A–200A HV brushless ESC


Overview


Peace of mind is priceless and modelers who value it most choose E-flite? brushless motors. Just ask anyone who’s flown with them. E-flite brushless motors consistently provide the kind of power and reliability that transform a modeling experience—no matter what you’re flying. Whether you’re a sport modeler or scale master, E-flite has the brushless power system to truly realize your plane’s full potential.

The E-flite Power 360 brushless electric motor is designed to deliver clean and quiet power equivalent to or surpassing the power of a 360-size 2-stroke glow engine for sport and scale airplanes weighing 15 to 40 pounds (6.8 to 11.0 kg), 3D airplanes up to 25 pounds (8.28 kg), or models requiring up to 6000 watts of power.


Specifications


Type: Brushless Outrunner
Size: Power 360
Wire Gauge: 13 AWG
# of Turns/Windings: 8mm bullet
Recommended Prop Range: 24 x 10 to 25 x 12
Voltage: 44.4V
RPM/Volt (Kv): 180Kv
Resistance (Ri): 0.0019Ω
Idle Current (Io): 6.1A @ 40.0V
Continuous Current: 130A
Maximum Burst Current: 150A
Cells: 12S LiPo
Speed Control: 160A+ Brushless
Weight: 44 oz (1240 g)
Overall Diameter: 3.45 in (90mm)
Shaft Diameter: 0.39 in (10mm)
Shaft Length: 1.25 in (32mm)
Overall Length: 5.15 in (130mm)
