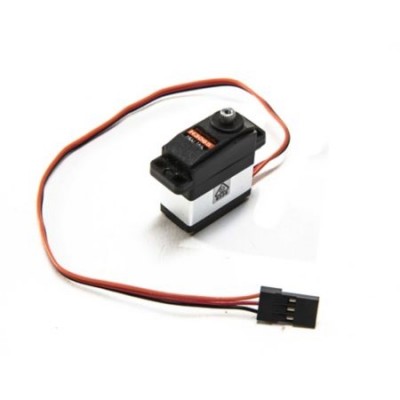

[SPEKTRUM] H3065 Mid-Torque Ultra-Speed Micro Heli Tail Servo
![[팰콘샵] SPMSH3065 [SPEKTRUM] H3065 Mid-Torque Ultra-Speed Micro Heli Tail Servo](/shop/data/goods/1617772021133.jpg)
품절
재입고 알림 신청하기
실시간 문의 (오전10시~오후6시)
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
| 서보 상세 제원 | |
|---|---|
| 토크 | 1.1 kg/cm |
| 속도 | 0.029 sec/60° |
| 규격 | 23 x 12 x 29.6 mm (가로x세로x높이) |
| 무게 | 12.9g |
| ※ 토크는 높을수록, 속도는 낮을수록 좋습니다. | |
Overview
Overview
Upgrade your 250-450 size heli tail servo with the high speed and accurate H3065 Servo. Touting a blazing fast .029 transit speed and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor.
Specifications
- Application
- 250 - 450 size heli, tail
- Bearing
- Single
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Connector Wire Gauge
- 22 AWG
- Connector Wire Length
- 7.87" (200mm)
- Deadband
- 2
- Gear Material
- Metal
- Height
- 1.17" (29.6mm)
- Length
- 0.91" (23mm)
- Programmable
- No
- Servo Operating Voltage
- 4.8 - 6.0V
- Servo Type
- Digital
- Speed
- 0.029 sec/60° @ 6.0V, 0.036 sec/60deg @ 4.8V, 0.029 sec/60deg 6V
- Torque
- 15.75 oz-in (1.1kg-cm) @ 6.0V,
- Type
- Digital sub micro
- Weight
- 0.46 oz (12.9 g)
- Width
- 0.47" (12mm)
