Modern street racing's roots go back to Woodward Avenue, Michigan in the 1960s when the three main Detroit-based American car companies were producing high-powered performance cars. A private racing venue was not always available, and therefore the race would be held illegally on public roads.

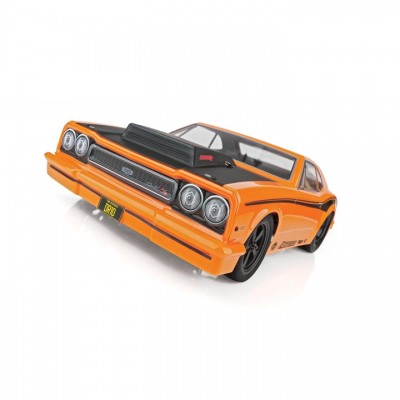

Based on the 9-time R.O.A.R. Short Course National Championship platform, the DR10 Drag Race Car features a water-resistant high-power Reedy brushless speed control and 3300kV brushless motor, a 2.4GHz 2-channel radio system, as well as our ALL NEW DVC (Dynamic Vehicle Control) receiver unit with built-in adjustable digital gyro. Add to that a Reedy metal-gear, digital, high-torque servo and a water-resistant enclosed receiver box.
Comparison Chart
| Model Version | Electronics Included | ||||
|---|---|---|---|---|---|
| Part # | Name | Motor | Radio, Servo, ESC, Receiver | Charger | Battery |
| #70025 | DR10 Drag Race Car RTR | brushless | included | none | none |
| #70025C | DR10 RTR LiPo Combo | brushless | included | #27201 Compact Balance Charger | #751 LiPo |
| #70026 | DR10 Drag Race Car RTR, green | brushless | included | none | none |
| #70026C | DR10 RTR LiPo Combo, green | brushless | included | #27201 Compact Balance Charger | #751 LiPo |
| #70028 | DR10 Drag Race Car RTR, purple | brushless | included | none | none |
| #70028C | DR10 RTR LiPo Combo, purple | brushless | included | #27201 Compact Balance Charger | #751 LiPo |
Features
- Based on the 9-time R.O.A.R. National Champion short-course race truck platform
- 2.4GHz 2-channel radio with new DVC (Dynamic Vehicle Control) receiver featuring built-in adjustable gyro
- Three-position wheelie bar with optional large wheels included
- High-torque, metal-gear Reedy servo with spring style servo saver
- Powerful Reedy 3300kV brushless motor

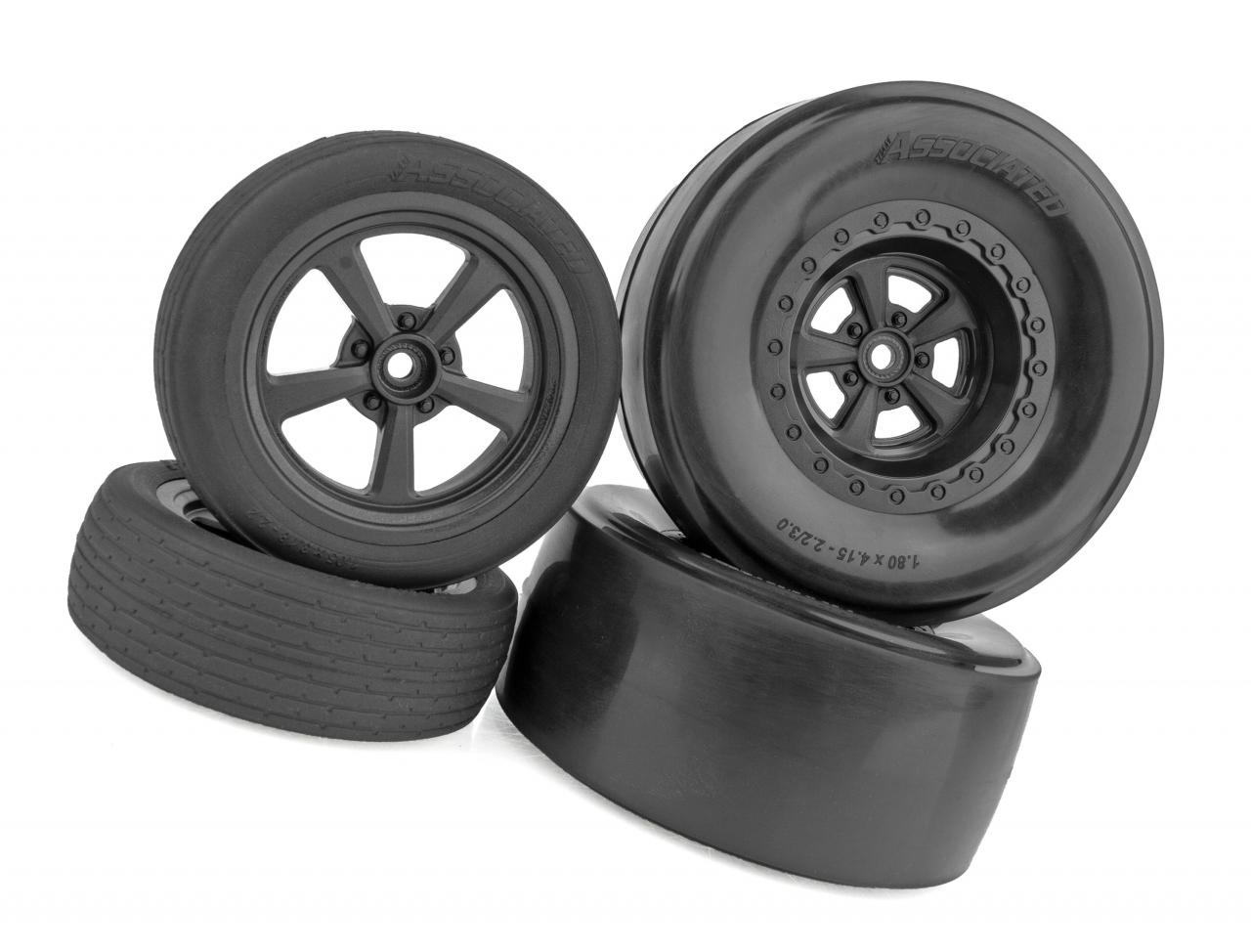

- Lightweight front drag tires
- Durable and lightweight aluminum top shaft
- Low center-of-gravity molded composite chassis with hook-and-loop battery straps that accommodate both NiMH and 2/3S LiPo battery packs
- Metric hardware throughout
- 18 precision, rubber-sealed ball bearings
- Durable front and rear wide body mounts
- 2.6:1 ratio gearbox with heavy-duty sealed gear differential and externally adjustable slipper clutch
- Adjustable suspension geometry
- Vertical ball ends for roll center adjustments, front and rear
- Many Factory Team options already available!
Vehicle Specifications
| Power Source: | Electric |
|---|---|
| Terrain: | On-Road |
| Body Style: | Other |
| Scale Size: | 1:10 Scale |
| Assembly Level: | Ready-To-Run* |
| Length: | 609.6mm (24in) |
| Width: | 272mm (10.71in) |
| Wheelbase: | 322mm (12.68in) |
| Weight: | 1850g (4.08lbs) |
| Internal Gear Ratio: | 2.60:1 |
| Drive: | 2WD |
Required to Complete
- #70025, 70025C, 70026, 70026C 70028, 70028C: Four (4) AA batteries (#302 Reedy AA Alkaline) used in the transmitter
- #70025, 70026, 70028: NiMH or LiPo battery with High Current T-Plug (#751 Reedy WolfPack 2S LiPo or #755 Reedy WolfPack 3S LiPo)
- #70025, 70026, 70028: Charger for battery used (#27201 Reedy balance Charger -- for LiPo, LiFe)
Manuals/Documents
- Instruction Manual (7.63MB)
- #29185 Reedy SC600-BL Brushless ESC Manual (1.89MB)
- #29203 XP120 Radio manual (9.87MB)
- DR10 Drag Race Car RTR -- press release (774.71kB)
- DR10 Drag Race Car RTR, green -- press release (714.42kB)
- DR10 Drag Race Car RTR, purple -- press release (732.16kB)
- DR10 RTR Features -- handout (436.21kB)
- LiPo Safety Instructions (272.71kB)
- Reedy Sensorless Brushless Motor Manual (816.03kB)
- Scale Mini Boxes (315.34kB)
- #29185 Reedy SC600-BL Brushless ESC Manual (1.89MB)
- #29203 XP120 Radio manual (10.02MB)
- DR10 Reakt Drag Body, purple -- press release (456.60kB)
- LiPo Instruction Manual 2017 (327.08kB)
- Reedy Sensorless Brushless Motor Manual (816.03kB)
