High power—low weight

Innovation is excellence; so, when DLE added innovations that included improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 less than four pounds and cranks out over six horsepower from a durable and long-lasting engine.

Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you'll find.

Features:

• Efficient, light design for high power-to-weight ratio
• Light piston for fast acceleration, excellent compression and low vibration
• CNC-machined parts for high performance and long life
• Enlarged crankshaft bearings
• Increased piston/cylinder contact area
• Two petal reed valve
• Muffler included for optimized power
• Spark plug
• Spiral wire wrap

Specifications:
Stock Number: DLEG0061
Displacement: 61.0 cc (3.7 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 3.86 lb (1.75 kg)
Output: 6 hp @ 7,500 rpm

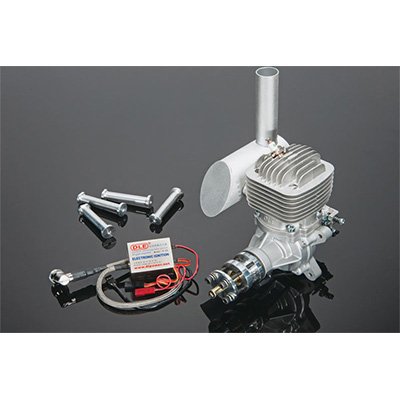

Includes: Electronic ignition module, muffler, spark plug, standoffs, spiral wire wrap & connector safety clips.
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 22x10, 23x8, 23x10, 24x8

DLE-61 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack ((Voltage regulator required if LiPo or LiFe pack is used.)
Gas/Oil Mix: 30:1
Replacement Spark Plug: DLEG6126
Static Thrust: 33 lb (15kg) @ 328 ft (100m) altitude; 28.7 lb (13 kg) @ 5,900 ft (1.8 km) altitude
Weight Breakdown: Engine: 3.02 lb (1.373 kg); Muffler: 3.9 oz (110 g); Ignition Module: 3.9 oz (110 g); Mount: 4.5 oz (128 g); Miscellaneous: 1.2 oz (34 g)

Recommended Products
HCAM6416 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ2210 Xoar 22x10 PJA Beechwood Propeller

Recommended Options
DLEG6126 DLE 61-Z26 Spark Plug DLE61
FPWM0290 FlightPower 5A Voltage Regulator (if LiPo or LiFe pack is used)
HCAM6436 Hobbico LiFeSource 6.6V 2100mAh NiMH Pack
XOAQ2308 Xoar 23x8 PJA Beechwood Propeller
XOAQ2310 Xoar 23x10 PJA Beechwood Propeller
XOAQ2408 Xoar 24x8 PJA Beechwood Propeller
DLEQ0551 Propeller Drill Guide 55, 55RA, 60T, 61
