Single cylinder power that's silky smooth.

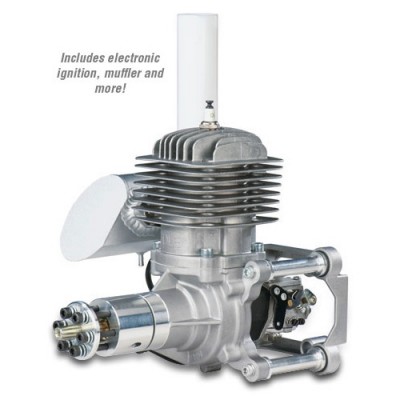

For giant-scale enthusiasts the DLE-85 is not only an impressive powerhouse, it's also an amazing value as well! Vibration — a real concern for a single cylinder engine this large — is kept in check by the included vibration-dampening engine mount. An extension on the exhaust lessens the chances of having to modify the cowl, and will flex or pop off during a hard landing, helping to protect the engine.

• Included mount secures the engine while reducing vibration that could damage the airframe.
• Included exhaust extension can be cut to fit the model and prevents residue buildup inside the cowl.
• The ignition module will accept 4.8-8.4V power sources and the optional DLE tachometer (DLEG5525).
• Large outlet stinger on muffler allows the engine to breathe better and produce more power.

Specifications:
Stock Number: DLEG0085
Displacement: 85 cc (5.18 cu in)
Bore: 2.047 in (52 mm)
Stroke: 1.574 in (40 mm)
Total Weight: 5.62 lb (2.55 kg)
Output: 8.5 hp @ 7500 rpm
Includes: ignition module, spark plug, engine standoffs, vibration-dampening engine mount & muffler with exhaust extension
Requires: unleaded gasoline, oil, ignition battery & propeller
Suggested prop sizes: 25x10, 26x9, 27x8

Technical Data:
Compression Ratio: 9.5:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG8526
Weight Breakdown: Engine: Engine: 4.29 lb (1,944 g); Muffler: 8.11 oz (230 g); Ignition 4.27 oz (121 g); Motor Mounts: 8.5 oz (241 g); Hardware: 0.49 oz (14 g)

Recommended Products:
HCAM6436 Hobbico LiFeSource 6.6V 2100mAh 10C LiFe Pack
XOAQ2510 Xoar 25x10 PJA Beechwood Propeller

Recommended Options:
DLEG8526 DLE85-R26 Spark Plug DLE-85
DLEQ1111 DLE Prop Drill Guide DLE-85, 111 & 120
FPWM1212 FlightPower FPRX 7.4V 2100mAh LiPo Battery
FPWM0290 FlightPower 5A Voltage Regulator (required for LiPo or LiFe use)
DLEG5525 DLE Onboard Digital Tachometer

See your favorite hobby retailer for additional recommendations.
See engine manual for proper break-in procedure.
