Features:

• Three crank bearings, simple design for lighter weight
• Double V-type reed valves, bottom induction
• Automatic electronic ignition
• Customized carburetor
• Special aluminum alloy crankcase
• Advanced CNC machining
• High quality sealed bearings

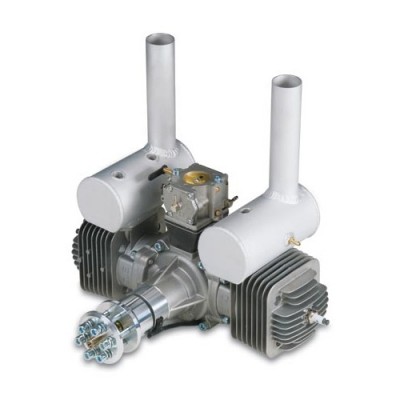

• Horizontally opposed twin cylinders for low vibration
• High power-to-weight ratio
• Includes mufflers, mount and standoffs

Specifications:
Stock Number: DLEG0170
Displacement: 170 cc (10.37 cu in)
Bore: 2.05 in (52 mm)
Stroke: 1.57 in (40 mm)
Weight: 9.06 lb. (4.11 kg)
RPM Range: 1,100-7,500
Output: 17.5 hp @ 7500 rpm
Requires: Gasoline, oil, ignition battery & propeller
Includes: electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, throttle arm extension, mount & mounting template
Suggested Propellers: 30x12 & 32x10

Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required for LiFe or LiPo use.)
Compression Ratio: 9.5:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG1826
Weights (individual): Engine: 7.83 lb (3.55 kg); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160 g)

Recommended Products:
DLEQ1701 DLE Engines Propeller Drill Guide DLE-170/DLE-222
ONXM2205 Onyx NiMH Receiver 6.0V 2000 AA Flat Universal Plug
XOAQ3012 Xoar 30x12 Beechwood Propeller

Recommended Options:
DLEG1826 170-G26 Spark Plug DLE170
FPWM1212 FlightPower FPRX 7.4V 2100mAh LiPo Battery
FPWM0290 FlightPower 5A Voltage Regulator
HCAM6436 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ3210 Xoar 32x10 Beech Propeller

See your favorite hobby retailer for additional recommendations.
See engine manual for proper break-in procedures.
