[SPEKTRUM] 예약 A4040 MT/HS Micro Metal Gear HV Servo
![[팰콘샵] SPMSA4040 [SPEKTRUM] 예약 A4040 MT/HS Micro Metal Gear HV Servo](/shop/data/goods/fm100053649_1792148914.jpg)
품절
재입고 알림 신청하기
실시간 문의 (오전10시~오후6시)
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
| 서보 상세 제원 | |
|---|---|
| 토크 | 7 kg/cm |
| 속도 | 0.1 sec/60° |
| 규격 | 28 x 14 x 31 mm (가로x세로x높이) |
| 무게 | 26g |
| ※ 토크는 높을수록, 속도는 낮을수록 좋습니다. | |
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
- High Voltage (HV) capable (4.8-8.4v input range)
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz

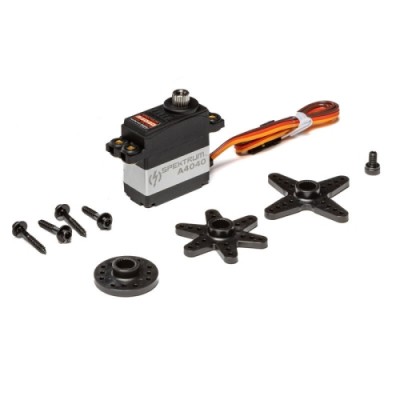

A4040 HV Mid Torque High Speed Digital Micro MG Servo
The Spektrum™ A4040 digital micro, metal gear servo offers extraordinary performance for park flyer size (15-25 size) and specialty aircraft applications. High voltage capable, the A4040 can produce 7.0kg-cm (96 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A4040 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A4040 delivers reliability, consistency and performance that are second to none.
The Spektrum™ A4040 digital micro, metal gear servo offers extraordinary performance for park flyer size (15-25 size) and specialty aircraft applications. High voltage capable, the A4040 can produce 7.0kg-cm (96 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A4040 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A4040 delivers reliability, consistency and performance that are second to none.
| Bearing | Single BB |
| Bushing Or Bearing | Bearing |
| Deadband | <1µs |
| Gear Type | Metal |
| Input Voltage | 4.8V-8.4V |
| Material | Aluminium |
| Servo Speed | 0.16 sec/60 deg @ 6.0V; 0.12 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 40-99 oz-in |
| Motor Type | Brushed |
| Overload Protection | No |
| Product Height | 1.23" (31 mm) |
| Product Length | 1.1" (28 mm) |
| Product Weight | 0.9oz (26g) |
| Product Width | 0.54" (14 mm) |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Servo Size Category | Mini and Micro |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Torque | 84 oz-in (6.05kg-cm) @ 6.0V; 91 oz-in (6.55kg-cm) @ 7.4V; 96 oz-in (7kg-cm) @ 8.4V |
