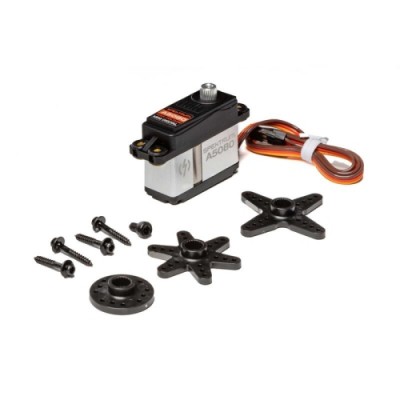

[SPEKTRUM] 예약 A5080 MT/HS Mini Digital HV Servo
![[팰콘샵] SPMSA5080 [SPEKTRUM] 예약 A5080 MT/HS Mini Digital HV Servo](/shop/data/goods/fm100053650_1792148914.jpg)
품절
재입고 알림 신청하기
실시간 문의 (오전10시~오후6시)
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
| 서보 상세 제원 | |
|---|---|
| 토크 | 9.4 kg/cm |
| 속도 | 0.094 sec/60° |
| 규격 | 36 x 15 x 30 mm (가로x세로x높이) |
| 무게 | 34g |
| ※ 토크는 높을수록, 속도는 낮을수록 좋습니다. | |
Features
- High Voltage (HV) capable (4.8 8.4v input range)
- Mini size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
- High Voltage (HV) capable (4.8 8.4v input range)
- Mini size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
A5080 Mid Torque Mid Speed Mini Digital HV MG Servo
The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.
The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.
| Bearing | Single BB |
| Bushing Or Bearing | Bearing |
| Deadband | <1µs |
| Gear Type | Metal |
| Input Voltage | 4.8V-8.4V |
| Material | Aluminium |
| Servo Speed | 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 100-199 oz-in |
| Motor Type | Brushed |
| Overload Protection | No |
| Product Height | 1.18" (30 mm) |
| Product Length | 1.4" (36 mm) |
| Product Weight | 1.2 oz (34g) |
| Product Width | 0.59" (15 mm) |
| Programmable | No |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Servo Size Category | Mini and Micro |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Torque | 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V |
Horizon Hobby 예약 상품 입고 일정
- 예약 상품은 매월 말에 본사(공장)에 주문이 들어갑니다.
- 본사에 재고가 있는 경우, 다음달에 입고됩니다.
- 본사에 재고가 Back Order 상태(일시 품절)인 경우, 본사에서 제작이 된 후 입고되므로 다소 시간이 지연될 수 있습니다.
- 배터리의 경우 본사의 추가 검수 및 선박으로만 운송되므로, 다른 상품에 비해 다소 시간이 지연될 수 있습니다.
- 몇 개월 이상 소요될 수 있으며, 예약 대기중 품절될 수 있습니다. 품절시 환불 처리만 가능합니다.
