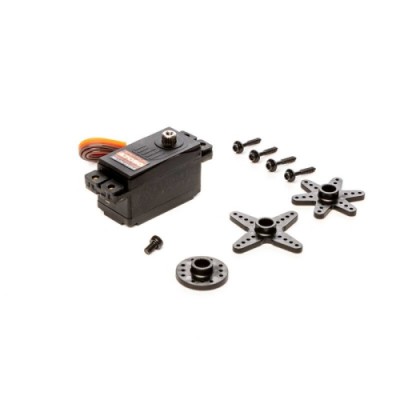

[SPEKTRUM] 예약 A7090 Brushless Low Profile Metal Gear HV Servo
![[팰콘샵] SPMSA7090 [SPEKTRUM] 예약 A7090 Brushless Low Profile Metal Gear HV Servo](/shop/data/goods/fm100053653_1792148915.jpg)
품절
재입고 알림 신청하기
실시간 문의 (오전10시~오후6시)
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
| 서보 상세 제원 | |
|---|---|
| 토크 | 18 kg/cm |
| 속도 | 0.068 sec/60° |
| 규격 | 41 x 21 x 25 mm (가로x세로x높이) |
| 무게 | 50g |
| ※ 토크는 높을수록, 속도는 낮을수록 좋습니다. | |
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Low profile design to fit into tighter spaces and shallow wing pockets
- Impressive torque and speed in a standard low profile servo size (18kg-cm and .068 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
- High Voltage (HV) capable (4.8-8.4v input range)
- Low profile design to fit into tighter spaces and shallow wing pockets
- Impressive torque and speed in a standard low profile servo size (18kg-cm and .068 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
A7090 High Torque High Speed Brushless Low Profile MG HV Servo
The low profile Spektrum™ A7090 brushless digital metal gear servo offers superb performance at a great price for standard aircraft applications. High voltage capable, the A7090 can produce an impressive 18 kg-cm (250 oz-in) of torque at blazing fast 0.068 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting brushless motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise holding power. Like all Spektrum servos, the A7090 delivers reliability, consistency and performance that are second to none.
The low profile Spektrum™ A7090 brushless digital metal gear servo offers superb performance at a great price for standard aircraft applications. High voltage capable, the A7090 can produce an impressive 18 kg-cm (250 oz-in) of torque at blazing fast 0.068 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting brushless motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise holding power. Like all Spektrum servos, the A7090 delivers reliability, consistency and performance that are second to none.
| Bearing | Dual BB |
| Bushing Or Bearing | Bearing |
| Deadband | <1µs |
| Gear Type | Metal |
| Input Voltage | 4.8V-8.4V |
| Material | Aluminium |
| Servo Speed | 0.17 sec/60 deg @ 6.0V; 0.091 sec/60 deg @ 7.4V; 0.068 sec/60 deg @ 8.4V |
| Maximum Servo Torque | 200-349 oz-in |
| Motor Type | Brushless |
| Overload Protection | No |
| Product Height | 0.99" (25 mm) |
| Product Length | 1.6" (41 mm) |
| Product Weight | 1.8 oz (50g) |
| Product Width | 0.81" (21 mm) |
| Programmable | No |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Servo Size Category | Custom |
| Servo Type | Digital |
| Spline Count | 23 - Tooth |
| Torque | 205 oz-in (14.76kg-cm) @ 6.0V; 215 oz-in (15.5kg-cm) @ 7.4V; 250 oz-in (18kg-cm) @ 8.4V |
Horizon Hobby 예약 상품 입고 일정
- 예약 상품은 매월 말에 본사(공장)에 주문이 들어갑니다.
- 본사에 재고가 있는 경우, 다음달에 입고됩니다.
- 본사에 재고가 Back Order 상태(일시 품절)인 경우, 본사에서 제작이 된 후 입고되므로 다소 시간이 지연될 수 있습니다.
- 배터리의 경우 본사의 추가 검수 및 선박으로만 운송되므로, 다른 상품에 비해 다소 시간이 지연될 수 있습니다.
- 몇 개월 이상 소요될 수 있으며, 예약 대기중 품절될 수 있습니다. 품절시 환불 처리만 가능합니다.
