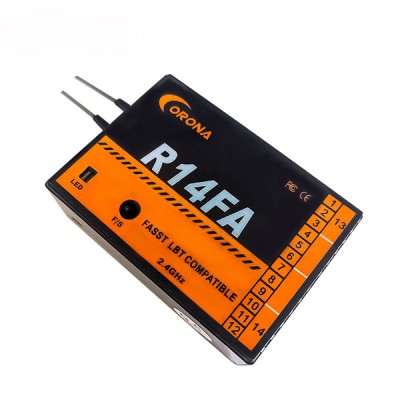

[CORONA] R14FA Futaba FASST 호환 2.4Ghz 14채널 수신기
![[팰콘샵] R14FA [CORONA] R14FA Futaba FASST 호환 2.4Ghz 14채널 수신기](/shop/data/goods/1646368203620.jpg)
판매가격59,800 원회원 가입시 추가 할인
적립금590 원
물류창고
E
재고추가 재고 없음
상품번호QA55176※ 전화문의시 상품번호를 알려주세요
고객선호도★★★★★ 5.0 (4개)
품절
재입고 알림 신청하기
실시간 문의 (오전10시~오후6시)
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
CORONA R14FA 2.4Ghz 14CH Fasst Compatible Reciver (Compatible with futaba Fasst 14SG 16SZ 18MZ HV )
Compatibility:
FASST 2.4G Air Systems(7CH Mode/Multi Mode):6EX,7C,TM-7,TM-8,T8FG,T10C,
TM-10,T10CG,14SG,T12Z,T12FG,TM-14,T14MZ,etc.
FASST 2.4G Surface Systems(C1 Mode):3PK,4PK,etc
Operating Current:
70mA @ FASST 7ch mode normal and 110 mA max,
80mA @ FASST multi-channel mode normal and 110 mA max
Operating Voltage: 4.0 ~10V
70mA @ FASST 7ch mode normal and 110 mA max,
80mA @ FASST multi-channel mode normal and 110 mA max
Operating Voltage: 4.0 ~10V
Latency:
7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode,
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
Sensitivity: about -96dBm
Bind procedure:
Turn on the FASST transmitter
Connect the battery to the receiver while pressing receiver's F/S button.
The Dual-color LED's continuous will cycle through the following:
Red LED light (searching radio signal)
Green LED light (acquired the radio signal)
Red LED off (bind ok)
Green LED flashes 10 times (ID store in memory)
Green LED lights solid (normally operation)
Fail-safe setting:
There are two ways to set the Failsafe setting on the CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver.
1.TX-failsafe Features: This method is to set failsafe on the FASST transmitter and has priority (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.
2.RX-failsafe Features: Turn on FASST transmitter and turn on the CORONA 2.4GHz Spread Spectrum Receiver, put all the sticks and switches to where give the control inputs you want if the receiver looses signal and Press the F/S button down for about 5 - 6 seconds while the Green LED light solid (Rx in normal operation), then release the button. You will see the Red LED will flash for about 4 - 5 seconds. (Note: The Red LED will FLASH high speed to indicate the RX-failsafe is turned on OR FLASH low speed to indicate
7mS for high speed PPM (HS), 14mS for low speed PPM (LS) @ FASST multi-channel mode,
8ms for high speed PPM (HS), 16mS for low speed PPM (LS) @ FASST 7ch mode
Sensitivity: about -96dBm
Bind procedure:
Turn on the FASST transmitter
Connect the battery to the receiver while pressing receiver's F/S button.
The Dual-color LED's continuous will cycle through the following:
Red LED light (searching radio signal)
Green LED light (acquired the radio signal)
Red LED off (bind ok)
Green LED flashes 10 times (ID store in memory)
Green LED lights solid (normally operation)
Fail-safe setting:
There are two ways to set the Failsafe setting on the CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver.
1.TX-failsafe Features: This method is to set failsafe on the FASST transmitter and has priority (works on channel 3 only under FASST 7ch mode or on multiple-channels under FASST multi-channel mode) while the receiver is working on, just like the FUTABA receivers.
2.RX-failsafe Features: Turn on FASST transmitter and turn on the CORONA 2.4GHz Spread Spectrum Receiver, put all the sticks and switches to where give the control inputs you want if the receiver looses signal and Press the F/S button down for about 5 - 6 seconds while the Green LED light solid (Rx in normal operation), then release the button. You will see the Red LED will flash for about 4 - 5 seconds. (Note: The Red LED will FLASH high speed to indicate the RX-failsafe is turned on OR FLASH low speed to indicate
Includes:
1 x R14FA receiver
