[HITEC] HLS12-30380-6V 리니어 서보
![[팰콘샵] HLS12-30380-6V [HITEC] HLS12-30380-6V 리니어 서보](/shop/data/goods/1648653401208.jpg)
판매가격132,000 원회원 가입시 추가 할인
적립금1,320 원
물류창고
C
E
재고
물류창고 ∞개있음
상품번호QA68941※ 전화문의시 상품번호를 알려주세요
고객선호도★★★★★ 5.0 (2개)
Email Us
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
![[팰콘샵] HLS12-30380-6V [HITEC] HLS12-30380-6V 리니어 서보](http://buyrc.co.kr/Upload/DEditor/product/20220329105658.png)
Description
- Hitec HLS12 Series 6V Linear Actuator 30mm 380:1
- Control System: PWM
- Operating Voltage Range: 6 V
- Operating Temperature Range: -10 ~ +50 °C
- Motor Type: Cored Metal Brush
- Controller (MCU): 32bit programmable Digital
The Hitec HLS12 Series 6V Linear Actuator 30mm 380:1 features a 30 mm Stroke and a 100 mA No-Load Current. It offers a Cored Metal Brush Motor and provides a maximum static force of 200 N or above.

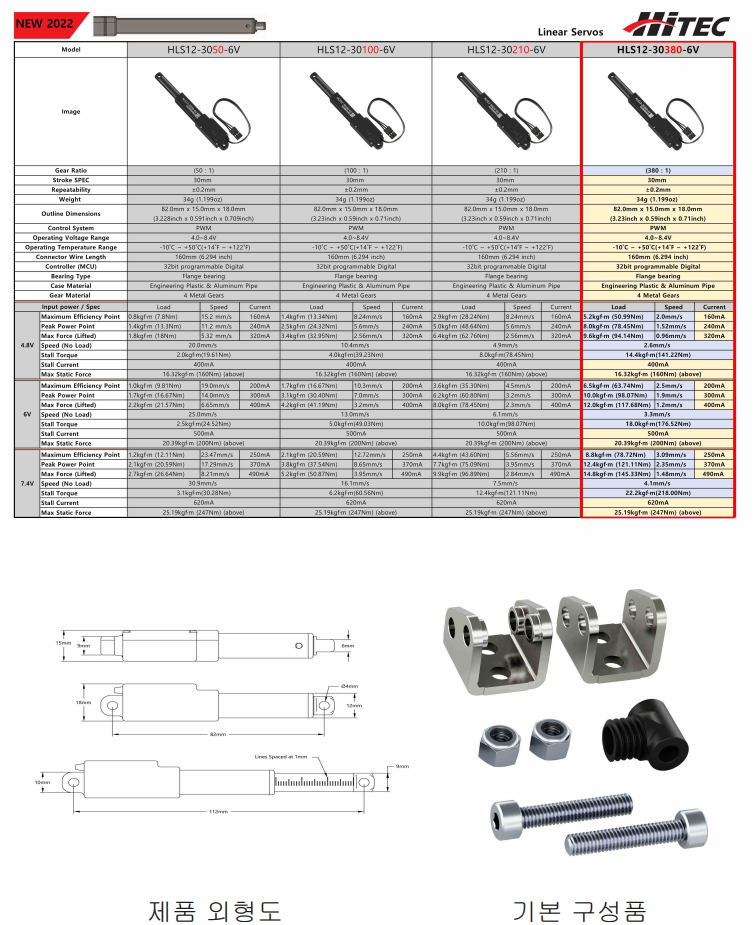

Specifications
- Gear Ratio: 380:1
- Stroke: 30 mm
- No Load Speed: 3.3 mm/s
- No Load Current: 100 mA
- Maximum Efficiency Point: Load: 6.5 kg (65 N) | Speed: 2.5 mm/s | Current: 200 mA
- Peak Power Point: Load: 10 kg (100 N) | 1.9 mm/s | Current: 300 mA
- Max Force (Lifted): Load: 15 kg (130 N) | 1.2 mm/s | Current: 400 mA
- Control System: PWM
- Operating Voltage Range: 6 V
- Operating Temperature Range: -10 ~ +50 °C
- Motor Type: Cored Metal Brush
- Storage Temperature Range: -30 ~ +80 °C (-31 ~ +176 °F)
- Controller (MCU): 32-bit programmable Digital
- Lead Screw: LEAD 5 mm
- Voltage: 6 V
- Stall Torque: 18 kg (180 N)
- Stall Current: 500 mA
- Max Static Force: 200 N (above)
- Repeatability: ±0.2 mm
- Max Side Load (Extended): 40 N
- Ball Bearing: Flange bearing
- Case Material: Engineering Plastic & Aluminum Pipe
- Gear Material: 4 Metal
- Weight: 34 g
What's Included
- 1 x Hitec HLS12 Series 6V Linear Actuator 30mm 380:1
