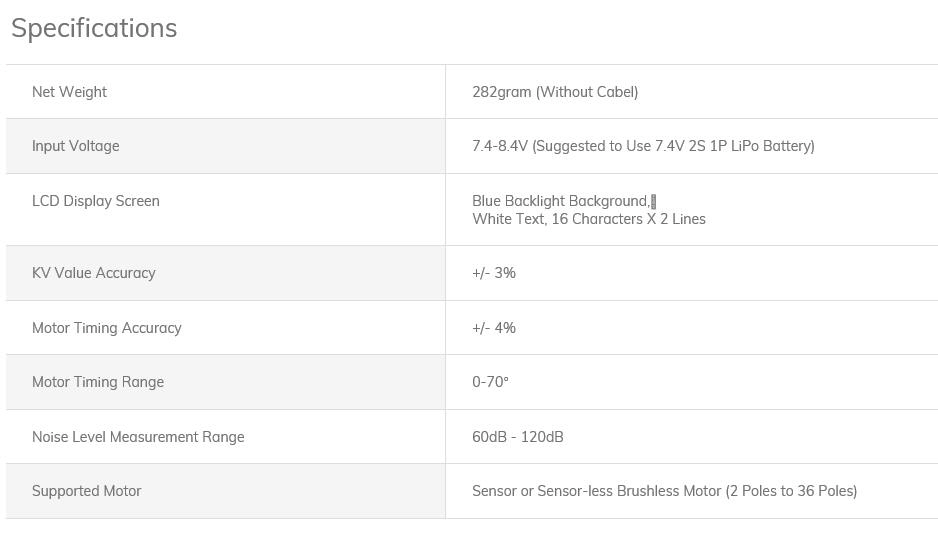

Specification:

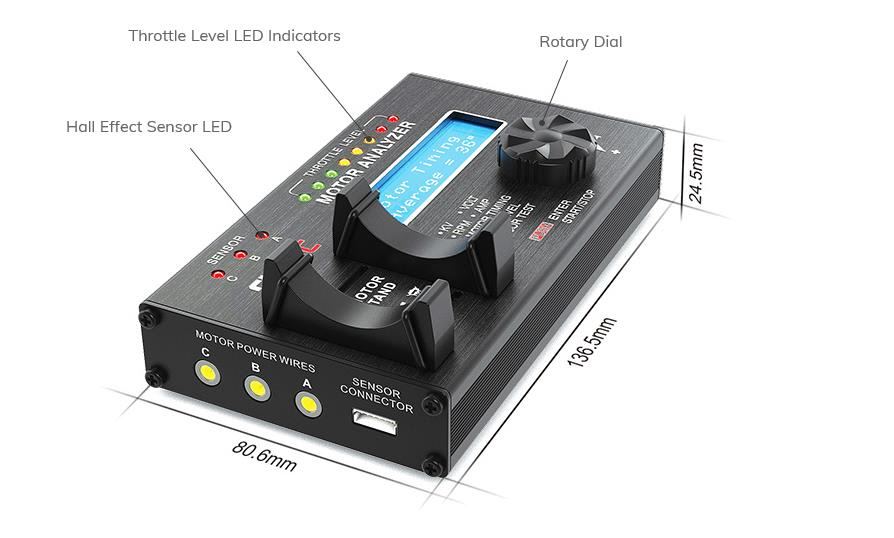

• Size: 80.6 x 136.5 x 24.5mm
• Net Weight: 282gram (Without Cabel)
• Input Voltage: 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery)
• LCD Display Screen: Blue Backlight Background, White Text, 16 Characters X 2 Lines
• KV Value Accuracy: +/- 3%
• Motor Timing Accuracy: +/- 4%
• Motor Timing Range: 0-70°
• Noise Level Measurement Range: 60dB - 120dB
• Supported Motor: Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles)
• Current Drawn Less Than 30A at 8.4V Without Loading

Include:

• SkyRC Blushless Motor Analyzer (1 pc)
• Motor Sensor Cable (1 pc)
• Motors cables with 3.5mm banana connector and Crocodile Clip (1 pc)
• DC Input Power Cable with XT60 connector and 4.0mm banana connectors (1 pc)
• DC Input Power Cable with XT60 connector and Tamiaya connector (1 pc)
• Manual
