»óÇ°»ó¼¼¼³¸í

KC ÀÎÁõ¹øÈ£: R-R-T6S-K4

±âº» ÃæÀü ´ÜÀÚ´Â XT60 ÀÔ´Ï´Ù. ¹èÅ͸® ´ÜÀÚ°¡ XT60 ÀÌ ¾Æ´Ï¸é º¯È¯ÀèÀÌ ÇÊ¿äÇÕ´Ï´Ù.

ISDT is renowned for its ergonomically designed, small, state-of-the-art battery chargers and accessories. The K4 smart charger continues this great pedigree of efficient and user-friendly chargers.

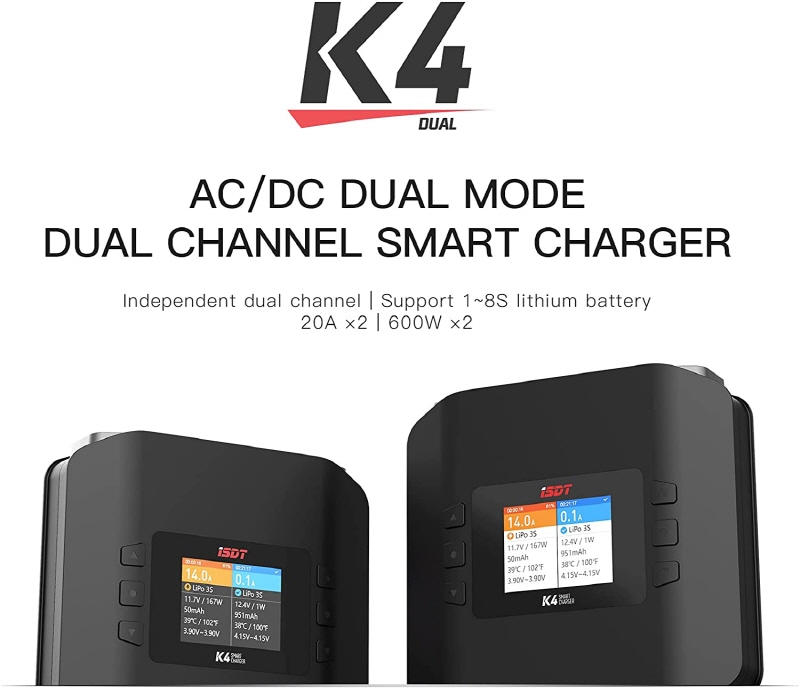

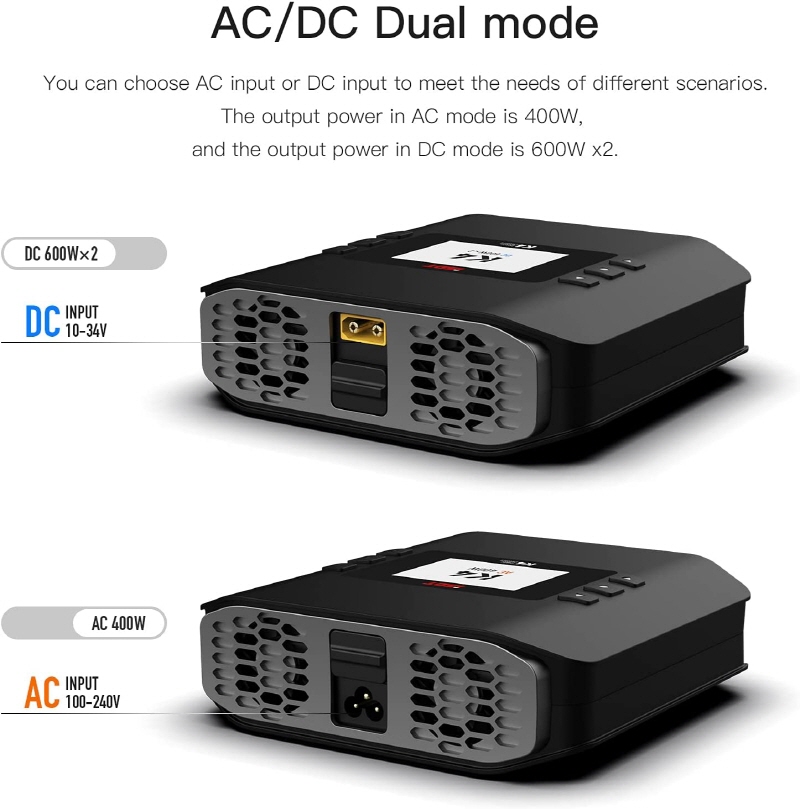

The ISDT K4 is a simple to use, yet powerful, no-nonsense dual input (AC/DC) charger that can charge two battery packs simultaneously. It has the ability to charge 2 x 8S LiPo, LiIon, or LiFe, 7S LiHV, 14S Pb, or 18S NiMh/NiCd battery packs at up to 20A. Also, each channel can operate independently of each other, meaning that two different sizes or different chemistry batteries can be charged at the same time. You can even combine both channels in parallel for synchronous balance charging to achieve even more output power. The max charging current on AC power is 400W per channel, and on DC power it is an incredible 600W per channel. The six programming keys (3 per channel) are simple and intuitive to use in conjunction with the color LCD display screen.

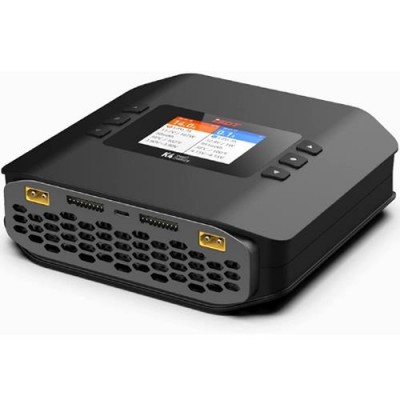

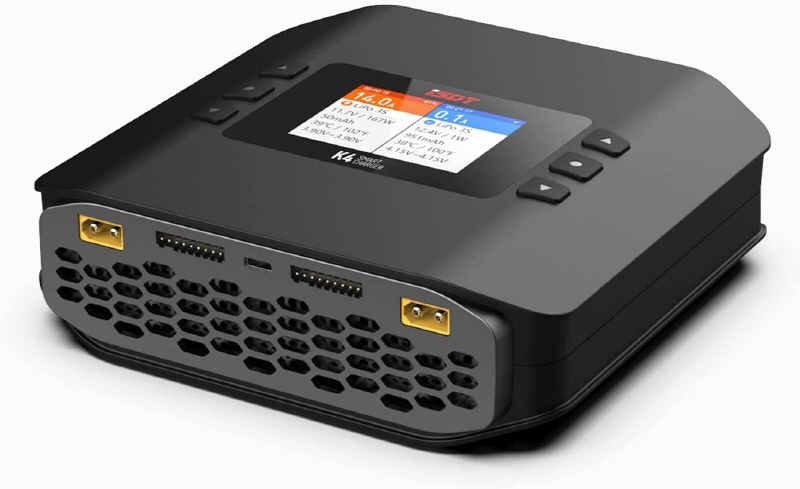

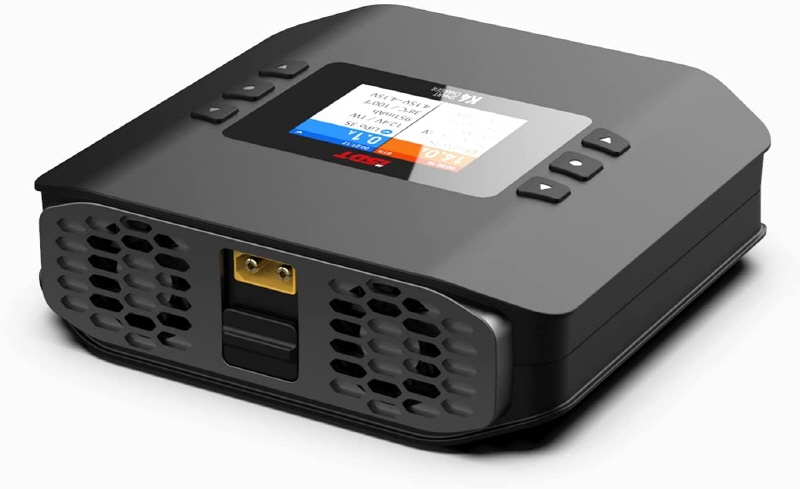

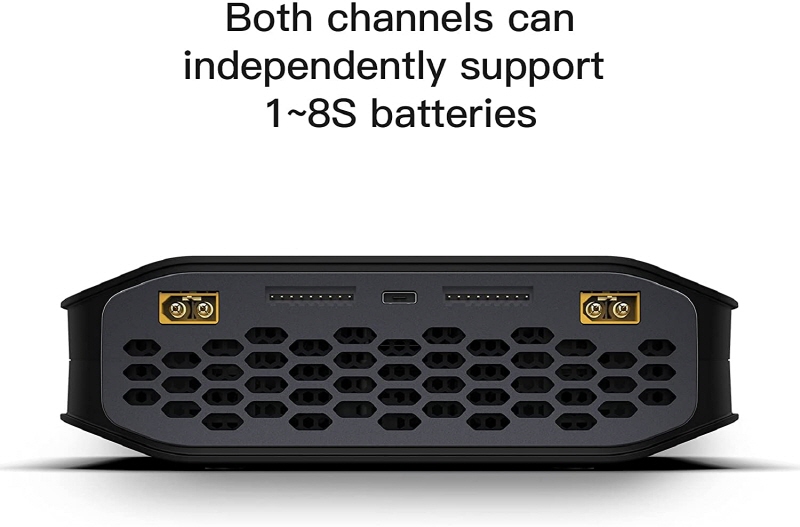

To cater for better cooling, the unit has a carefully designed, and optimized internal structure. This is coupled with a ball-raced fan to promote an active cooling system. Outputs include 2 x XT60 male connectors for charging, 2 x XH-JST 8S balance ports, and a micro USB port for updates. The power input of 10~34V (DC) is connected to the charger via a female XT60 connector, and for AC use a mains power lead with an EU plug is supplied.

Features:
• Will operate from DC and AC power sources

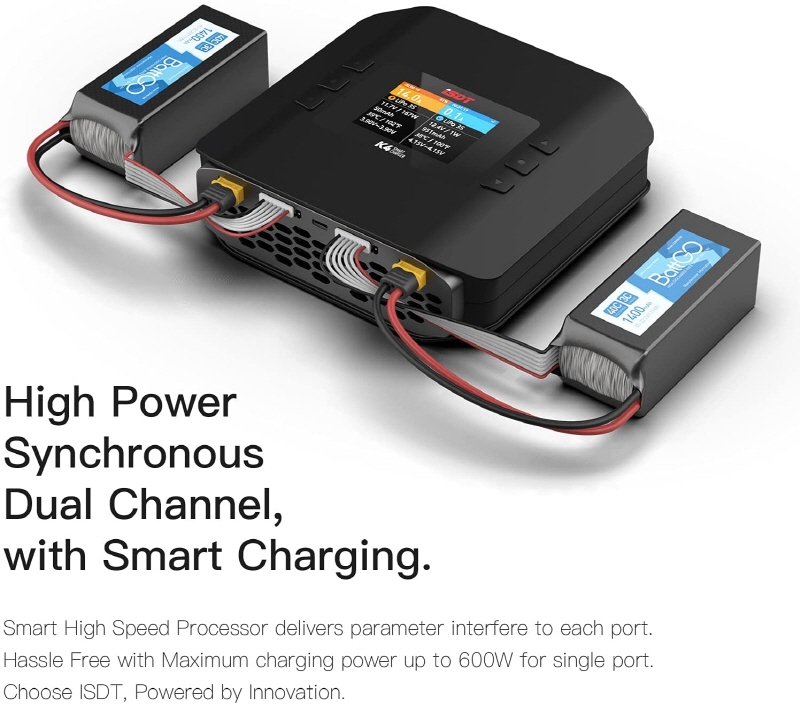

• Ability to charge 2 battery packs independently
• Can charge 2 different chemistry batteries simultaneously
• Will charge 2 x battery packs at up to 600W per channel on DC power, or 400W per channel on AC power
• Easy to use push-button programming

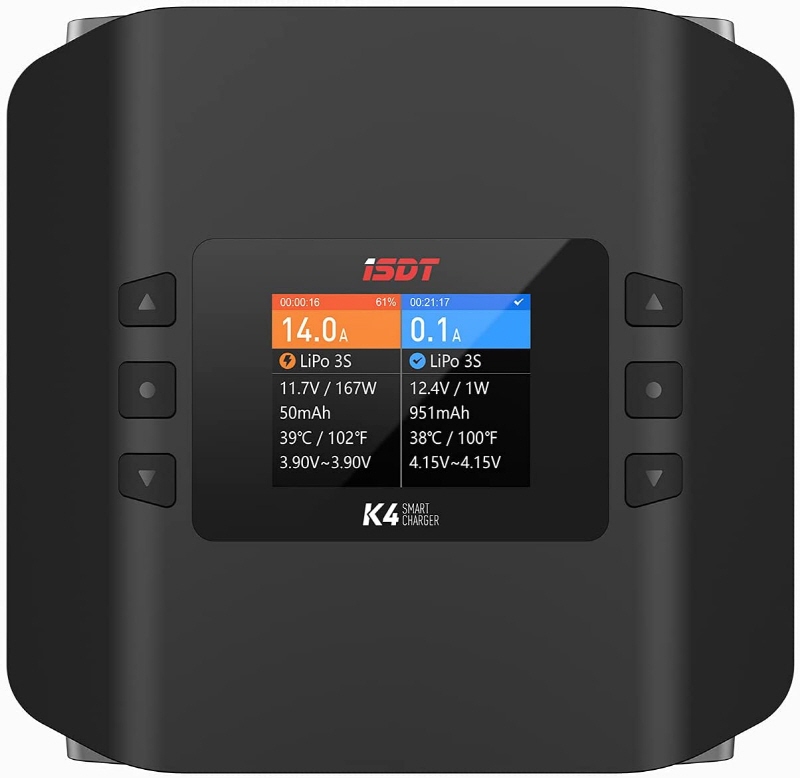

• Color LCD display screen with wide viewing angle
• Ball-raced fan promotes efficient, active cooling

Specs:
Model: ISDT K4 Dual Port 1~8S 400~600W x 2 AC/DC Smart Charger
Input Voltage: 10~34V DC/100~240V AC
Output Voltage: 1~34V DC
Max Input Current: 45A
Charging Current: 0.2~20A x 2
Max Charging Power: 400W AC/600W DC x 2
Max Discharging Power: 30W x 2
Parallel Charging Power/Current: 800W/35A
Parallel Discharging Power/Current: 60W/3A
Balance Current: 1.5A/Cell

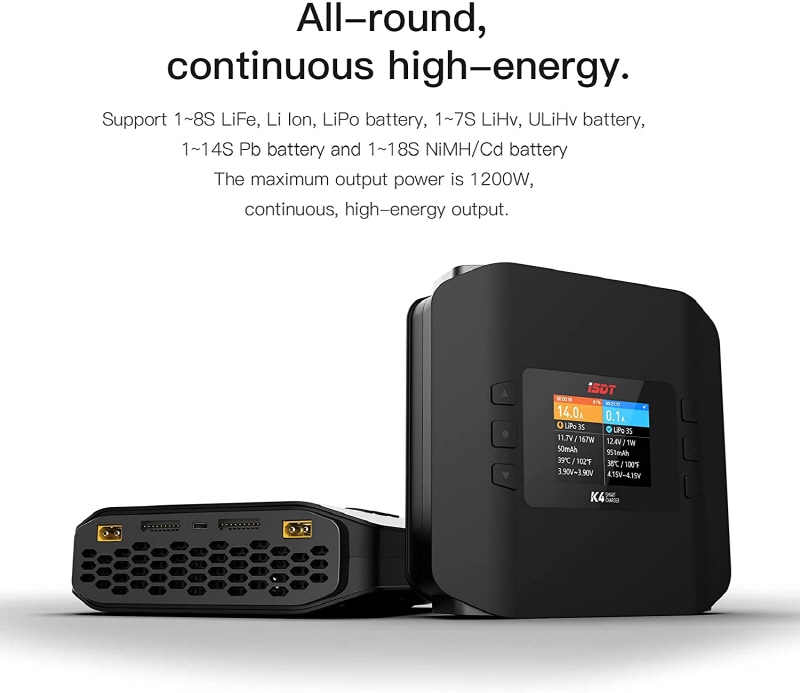

Supported Battery Types & Cell Count: 1~8S LiPo/LiIon/LiFe/1~7S LiHV, 1~14S Pb, 1~18S NiCd/NiMh
Display: Color LCD
Operating Temperature: 0~40¡ÆC
Storage Temperature: -20~60¡ÆC
Dimensions: 176x183x57mm
Weight: 1230g
