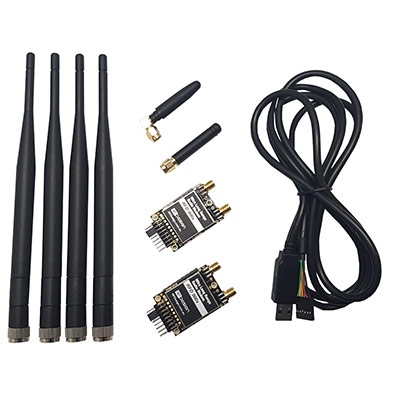

![[팰콘샵] RF004 [CubePilot] RFDesign BUNDLE RFD900x 픽스호크 장거리용 텔레메트리 915MHz 1000mW - 해외구매대행](/shop/data/goods/1665716315140l0.jpg)
적립금 : 6,900원
상품상세설명
RFD900+ 의 업그레이드 버전으로, 기존 RFD900+ 와 혼용하여 사용할 수 없습니다 (호환 안됨)
RFD900+와 RFD900x 시리즈의 주요 차이점은 프로세서를 향상된 무선 송수신기와 함께 32비트 암 기반 프로세서로 교체한 것입니다.
This is the ideal solution for long range telemetry or communications. Two RFD900x modems with antennas for all antenna ports.
※ 같은 제원에 가격이 2/3 수준인 제품도 있으니 참고하시기 바랍니다. (아래 링크)

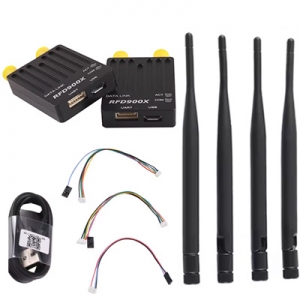

![[팰콘샵] RF004 [CubePilot] RFDesign BUNDLE RFD900x 픽스호크 장거리용 텔레메트리 915MHz 1000mW - 해외구매대행](/shop/data/goods/1714027733327m0.jpg)
[Mayatech] RFD900X 데이터 링크 텔레메트리 시스템 세트- 구매대행
픽스호크 Telemetry, SBUS, PPM 신호 전달, 40km 장거리, 915MHz 1000mW
425,000
The kit consists of:
2 x RFD900x Radio Modems
1 x Antenna, 900MHz Quarter wave monopole 2.1dBi
1 x Antenna, 900MHz Right Angle Quarter wave monopole 2.1dBi
4 x Antennas, 900MHz Half wave dipole 3dBi
1 x FTDI USB cable
You get a cheaper price when purchasing a whole kit !
* Please note that some newer versions of the FTDI VCP driver namely version 2.12.36.1 have been reported as possibly incompatible with the FTDI cables we stock. If you are experiencing issues, we recommend reverting to version 2.12.28 or before.
* Please note the RFD900x is not compatible with the RFD900+
RFD900x New Features:
- New Processor, ARM 32 bit core.
- Air data rate: 500kbit/s.
- AES Hardware accelerated encryption. *Fully working*
- RC PPM Passthrough with telemetry at the same time.
- Fully ESD protected + filtered - Every IO port is protected and filtered.
- Original SiK point to point firmware implemented.
- Asynchronous multipoint firmware, *Beta release*
Features:
- Long range >40km depending on antennas and GCS setup *80km demonstrated by Edge Research labs on a balloon, 57km in India, on Dipoles.
- 2 x RP-SMA RF connectors, diversity switched.
- 1 Watt (+30dBm) transmit power.
- Transmit low pass filter.
- > 20dB Low noise amplifier, high IP3.
- RX SAW filter.
- All I/O ESD protected and filtered.
- Re implemented SiK and Multipoint SiK firmware, field upgradeable, easy to configure.
- Small, light weight.
- License free use in Australia, Canada, USA, NZ
- Note: Not compatible with older modems
Interfaces:
- RF : 2 x RP-SMA connectors
- Serial: Logic level TTL (+3.3v)
- Power: +5v, ~800mA max peak (at maximum transmit power)
- GPIO: 6 General purpose IO (Digita capable).
Specifications:
Frequency Range: 902 - 928 MHz (USA) / 915 - 928 MHz (Australia)
Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
Air Data transfer rates: 12, 56, 64, 100, 125, 200, 224, 500 and 750 kbit/sec (User settable, 64kbit default)*
UART data transfer rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)*
*note these values are correct as of version 3.16 SiK firmware
Output Power: 1W (+30dBm)
Receive Sensitivity: >111 dBm at 12kbps, 105 at 64 kbps and 98 at 200 kbps
Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
Weight: 14.5g
Mounting: 3 x M2.5 screws, 3 x header pin solder points
Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C.
Frequency Range: 902 - 928 MHz (USA) / 915 - 928 MHz (Australia)
Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
Air Data transfer rates: 12, 56, 64, 100, 125, 200, 224, 500 and 750 kbit/sec (User settable, 64kbit default)*
UART data transfer rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)*
*note these values are correct as of version 3.16 SiK firmware
Output Power: 1W (+30dBm)
Receive Sensitivity: >111 dBm at 12kbps, 105 at 64 kbps and 98 at 200 kbps
Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
Weight: 14.5g
Mounting: 3 x M2.5 screws, 3 x header pin solder points
Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C.
Software / GCS Support:
The software solution is an open source development called "SiK". It has been re implemented to suit the new processor architecture available on the 32bit ARM processor core. A boot loader and interface is available for further development and field upgrade of the modem firmware via the serial port.
Most parameters are configurable via AT commands, Eg. baud rate (air/uart), frequency band, power levels.
Integrated support for configuring the RFD900 radios is supported by APM Planner.
The default settings are at 57600 baud, N, 8, 1, and 64k air data rate.
The RFD900x manual is here: RFD900x Manual
The RFD900x SiK software manual is here : RFD900x Peer-to-peer Manual
Software features include:
- Frequency hopping spread spectrum (FHSS)
- Transparent serial link
- Point to Point, or Multipoint networking
- Configuration by simple AT commands for local radio, RT commands for remote radio
- User configurable serial data rates and air datarates
- Mavlink protocol framing (user selectable)
- Mavlink radio status reporting (Local RSSI, Remote RSSI, Local Noise, Remote Noise)
- Automatic antenna diversity switching on a packet basis in realtime
- Automatic duty cycle throttling based on radio temperature to avoid overheating
Compliance:
The RFD900 is designed to be compliant with the following standards:
- FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
- AS/NZS 4268:2012 (Radio equipment and systems - short range devices)
The modem is designed for system integrators who will integrate the modem into their own projects and product prototypes. The user is responsible for compliance with local regulations for radio transmitters.
