상품상세설명

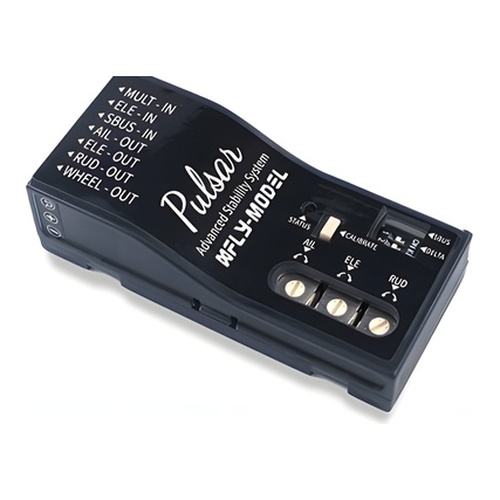

XFly Pulsar 3-Axis Gyro RC Flight Controller  - 비행기 자이로

- 비행기 수평을 잡아주는 자이로 입니다.

Pulsar gyro is a high performance and advanced stability system designed for R/C airplanes. It provides Lock Mode and Balance Mode, allows for SBUS input and moreover, takes the lead in featuring auxiliary function for front gear. With its high quality and versatility, Pulsar is surely a safeguard for your every flight.

- Support Standard Fixed-Wing , Delta-Wing & SBUS Connection.

- 3 Flight Modes

Lock Mode: LED is always on. This mode delivers wind-resistant effect without interfering with pilot's operation.

Balance Mode: LED flashes. When the sticks are released, aileron angle is limited to be ±75 degrees. This mode is recommended for emergency rescue.

Gyro Off Mode: LED is off. Airplane is completely under the control of pilot's transmitter.

- Auxiliary Function For Front Gear

Separate auxiliary channel output is added to control front gear steering servo, which is remarkably helpful for take-off, landing and taxiing straight.

- Calibrate Function

This is designed for airplane level calibration. Mount the gyro in place and put the airplane on a flat surface. Power on the airplane and wait for its self-check. Press the button and hold for 3 seconds, then
release the button --- the control surfaces will oscillate upward and downward for a few times, which means the calibration is completed. Level calibration will affect if the airplane level attitude is correct or
not in the Balance Mode.
