상품상세설명

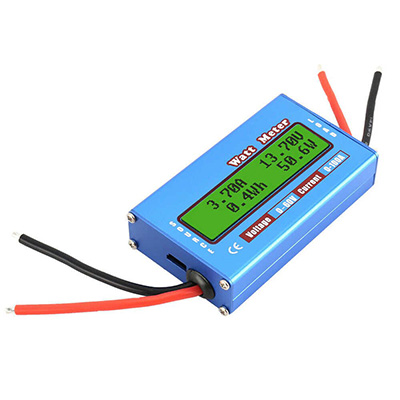

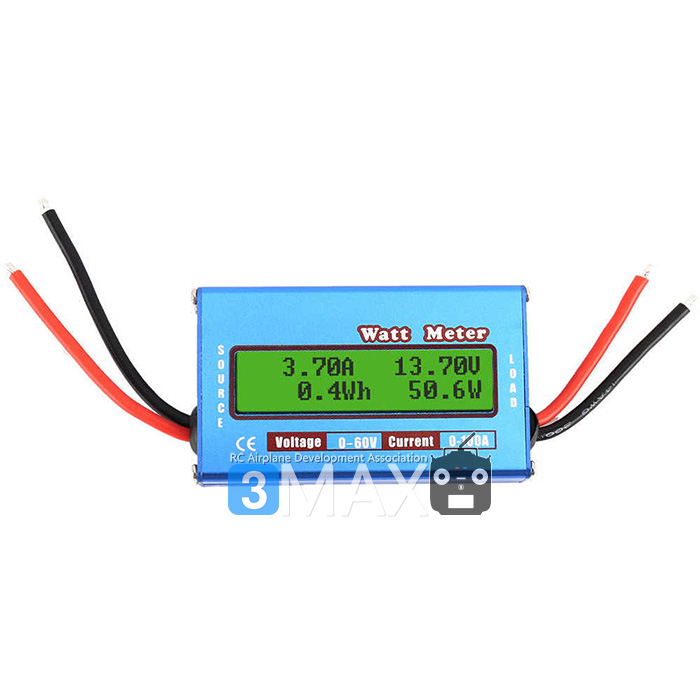

[TR] Digital Watt Meter and Power Analyzer

TAROT사의 비행기, 헬기, 드론, 자동차 전기종 공용 디지털 와트 미터 겸용 파워 아날라이저.

12Cell 지원 사양으로서 백라이트가 내장되어 있습니다.

Measure energy(wh),charge(ah), power(w),current(A) and voltage(V). Digital LCD screen gives clear crisp number readings.
Accurate & precise 0.01 A cuurrent and 0.01 V voltage resolutions.
Rugged- handles 50A continuous and 100 A peak at 60V.
Measures 0 to 60 Volts. Works on 12, 24, 36, and 48 volt battery bank systems.
Connecting load end to the battery provides real-time battery charging reading.
Perfect troubleshooting tool: it's indispensable for analyzing, testing and troubleshooting any DIY DC power project.
Professional RC watt meter is an excellent addition to your RC hobby, DC circuits, Solar system, Boat/RV & Battery Backup systems!


Material: Aluminum alloy
Item color: Blue
Voltage: (0)V-4V-60V 0.01V (Resolution)
Current: 0-100 A 0.01A (Resolution)
Power: 0-6554 W 0.1W (Resolution)
Charge: 0-65 Ah 0.001Ah (Resolution)
Energy: 0-6554 wh 0.1 Wh (Resolution)
Measurement update period: 400mS
Signal sampling rate: sample/s
Data queue sequence time: 2 seconds
In circuit resistance: 0.001 Ohms
Operation current: 7 mA
Auxiliary power voltage: 4.0V ~ 60V

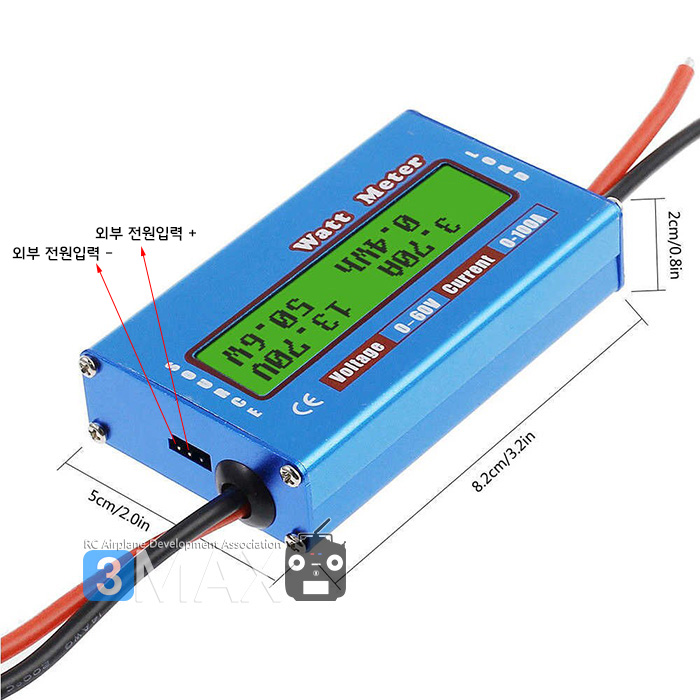

Size: 8.2cm x 5cm x 2cm /3.2in x 2.0in x 0.8in (L x W x H)
Weight: 87g

Package includes:
1 x Digital LCD Battery Analyze
1 x User Manual

<제품이미지>
