Rocket 48DP 3.175mm Hardened Metal Pinion Gear 13T-35T Gear Set

for 1/10 1/12 1/14 RC Buggy Car Monster Truck F540 3650 3660 Brushless Brushed Motor

Features:

【48 Pitch】Make sure your spur gear have the same pitch to work with.

【Diamond Red Gear】Precision manufacturing, precise tooth pitch, strong and wear-resistant.

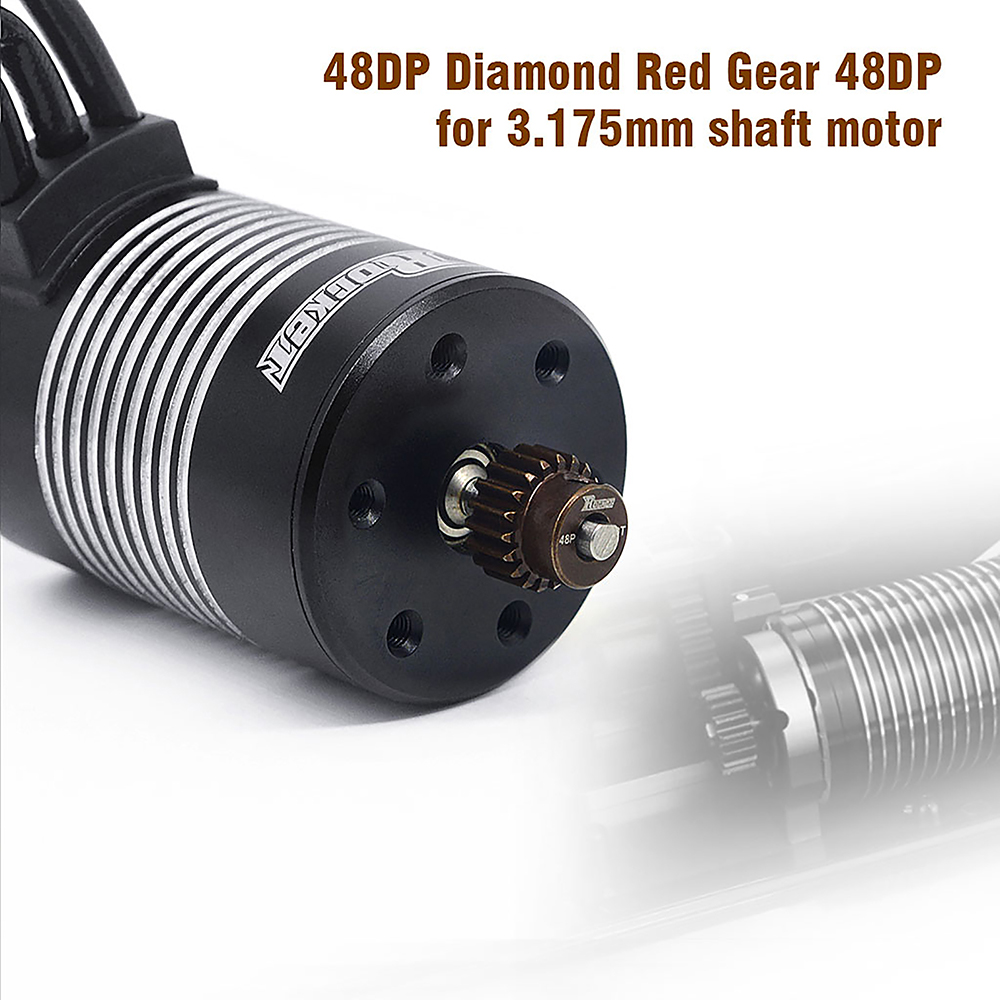

【Inner Diameter: 3.175mm】3.175mm(1/8 inch), Suitable for 1/10 Scale RC Vehicle Plane Boat 3.175mm Motor Shaft, compatible with 1/10 Traxxas Axial HSP Redcat RC Car.

【Work Smoothly】Good machining made less rough and less noise than other pinions that make them roll smoothly.Durable metal construction for long-lasting performance.

Specifications:

Brand: Rocket

Material: Metal

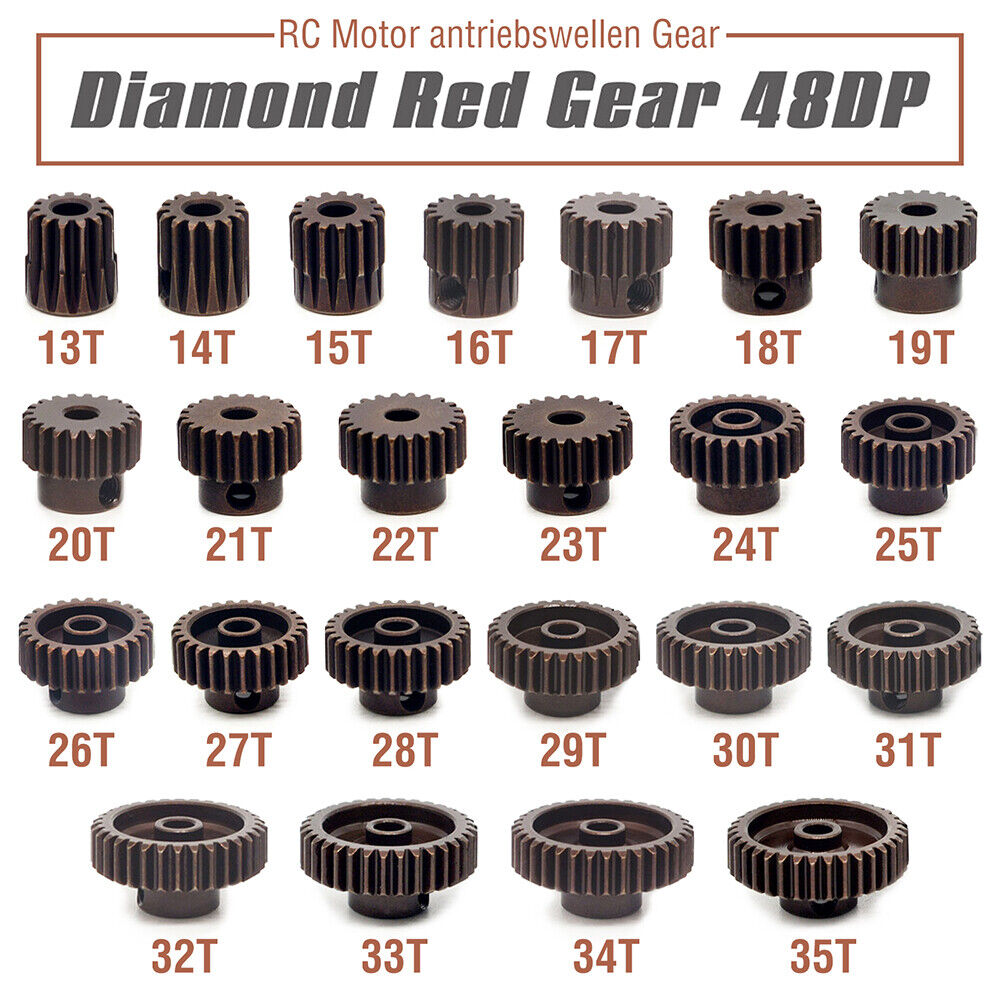

Teeth: 13T 14T 15T 16T 17T 18T 19T 20T 21T 22T 23T 24T 25T 26T 27T 28T 29T 30T 31T 32T 33T 34T 35T optional

Height: 9mm

Tip Diameter

13T ￠3.175*￠7.95*9mm

14T ￠3.175*￠8.48*9mm

15T ￠3.175*￠9.01*9mm

16T ￠3.175*￠9.54*9mm

17T ￠3.175*￠10.07*9mm

18T ￠3.175*￠10.6*9mm

19T ￠3.175*￠11.13*9mm

20T ￠3.175*￠11.66*9mm

21T ￠3.175*￠12.19*9mm

22T ￠3.175*￠12.72*9mm

23T ￠3.175*￠13.25*9mm

24T ￠3.175*￠13.78*9mm

25T ￠3.175*￠14.31*9mm

26T ￠3.175*￠14.84*9mm

27T ￠3.175*￠15.37*9mm

28T ￠3.175*￠15.9*9mm

29T ￠3.175*￠16.43*9mm

30T ￠3.175*￠16.96*9mm

31T ￠3.175*￠17.49*9mm

32T ￠3.175*￠18.02*9mm

33T ￠3.175*￠18.55*9mm

34T ￠3.175*￠19.08*9mm

35T ￠3.175*￠19.61*9mm

Diametral Pitch: 48DP

Suitable shaft diameter: 3.175mm
