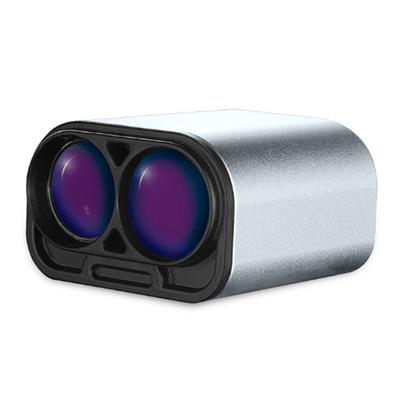

LW20/C

The LW20/C is a small form factor LiDAR

sensor that is both dust and water

resistant. This sensor is ideal for distance

and height measurement.

Applications

AGL (Altitude above ground level)

Position hold

Terrain following

Detect and avoid

IoT sensor

Assisted take-off and landing

Specifications

Measuring range              0.2 … 100 m / 0.6 ... 328 ft

Update rate                     48 ... 5 000 readings per second

Communication                Serial and I2C (3.3 V TTL, 5 V tolerant)

Operating temperatures     10° ... +50 °C / 14° ... 122°F

IP rating                         Unit is IP67

Weight                           19 g / 0.69 oz

Form factor                     30 mm x 20 mm x 43 mm / 1.2 in x 0.8 in x 1.7 in

Power supply                   4.5 V to 5.5 V

Integration                      PX4, ArduPilot, Arduino, Raspberry Pi and LightWare Studio

Refer to the product guide for more details

Benefits

Smallest IP67 rated 100 m / 328 ft microLiDAR™

Weighs only 7.4g / 0.26 oz
