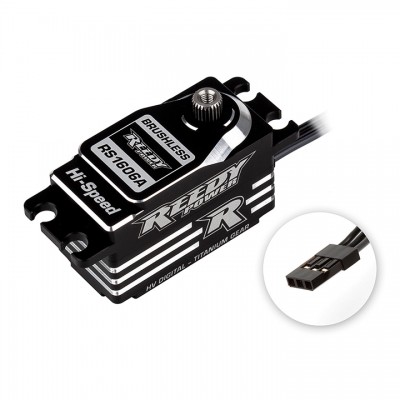

![[팰콘샵] AAK27154 [TEAM ASSOCIATED] AAK27154 Reedy RS1606A Low-Profile Titanium Gear Brushless Hi-Speed HV Servo](/shop/data/goods/1700194220831.jpg)
실시간 문의 (오전10시~오후6시)
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
| 서보 상세 제원 | |
|---|---|
| 토크 | 16 kg/cm |
| 속도 | 0.058 sec/60° |
| 규격 | 40.8 x 20.2 x 26.5 mm (가로x세로x높이) |
| 무게 | 57.2g |
| ※ 토크는 높을수록, 속도는 낮을수록 좋습니다. | |

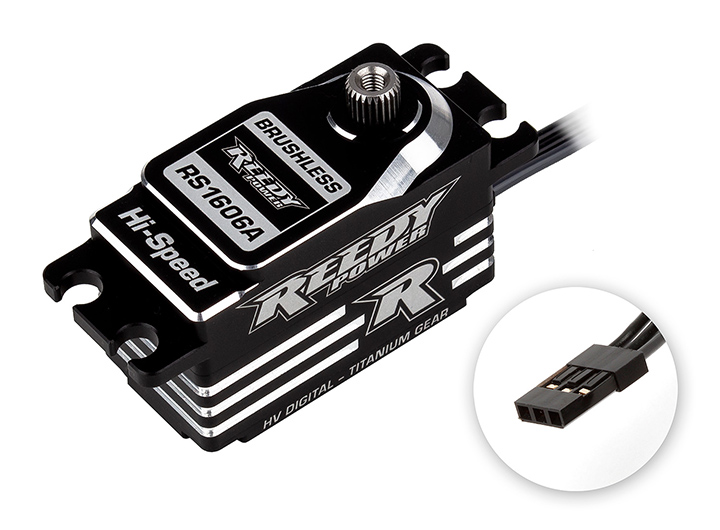

![[팰콘샵] AAK27154 [TEAM ASSOCIATED] AAK27154 Reedy RS1606A Low-Profile Titanium Gear Brushless Hi-Speed HV Servo](/shop/goods/proxy/1000829190.jpg)
Features:
- Full aluminum low-profile case
- Powerful brushless motor
- Waterproof construction
- Ultra-precise metal gears
- Dual ball bearings
- High-voltage compatible
Full aluminum low-profile case
Reedy's all-new Low-Profile Titanium Gear Brushless HV Servos are now available and include a variety of performance features intended for competition! Precision titanium gears add strength, reduce weight, and provide silky smooth operation. A powerful brushless motor produces a combination of lightning quick speeds and maximum torque while an advanced microprocessor improves vehicle control and enhances driver feel. State-of-the-art CNC-machined aluminum case with integrated fins increases rigidity to ensure consistent driving feel while lowering operating temperatures for fade-free operation. Two options, high speed or high torque, are available to suit a variety of on- and off-road applications and driver preferences.
| Input (V): | 4.8 - 8.4 |
|---|---|
| Motor: | Brushless |
| Speed (sec/60 deg.), 6.0V: | .070 |
| Speed (sec/60 deg.), 7.4V: | .065 |
| Speed (sec/60 deg.), 8.4V: | .058 |
| Torque (kg-cm/in-oz), 6.0V: | 13/180 |
| Torque (kg-cm/in-oz), 7.4V: | 14.5/201 |
| Torque (kg-cm/in-oz), 8.4V: | 16/222 |
| Dimensions (mm): | 40.8 x 20.2 x 26.5 |
| Weight (g): | 57.2 |
| Spline: | 25 |
