상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
Matek LED Circle X8 / 16V
- 마텍 원형 LED입니다.
- 허용전압이 14~16V입니다. 4셀 직결 할 수 있습니다.
- 가운데 버튼으로 7가지 색상을 마음대로 바꿀 수 있습니다.
드론축구 후방 LED로 많이 사용합니다.
구성
원형 LED 보드 1개
케이블 1개

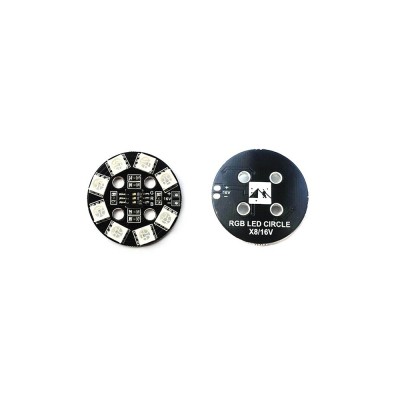

Matek RGB LED CIRCLE X8/16V comes with eight RGB5050 LEDs & one code switch.
Seven colors are selectable by means of code switches.
This LED board gives an eye-catching effect to your multirotors or planes when illuminated.
Specifications
INPUT: 14~16V DC， 4S LiPo
Size: Circle Φ30mm (10mm /Φ3mm Mounting)
Select the colors with 3pin 1.25mm Code switch
Weight: 2.5g
Packing: LED CIRCLE X8/16V, 1pc, Cable 0.3m
Notes
Comes with a 0.3m long cable, users can cut it to a suitable length;
Be ware of the positive and negative poles, as well as the insulation;
Switch the related codes to ON, seven colors are selectable;
The input is in a range of 14~16V DC, can be powered by 4S Lipo.
Selectable Colors & Power @12v
B ON =Blue, 0.64W, 0.04A
R ON =Red, 0.64W, 0.04A
G ON =Green, 0.64W, 0.04A
B+R =Megenta, 1.28W, 0.08A
B+G =Cyan, 1.28W, 0.08A
R+G =Yellow, 1.28W, 0.08A
B+R+G =White, 1.92W, 0.12A
