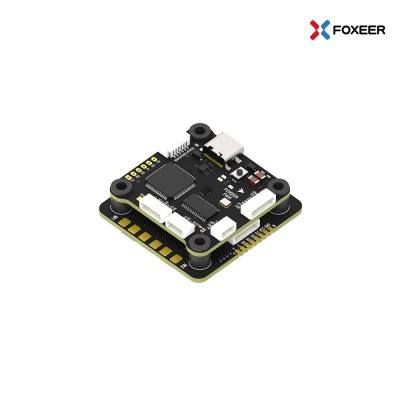

[Foxeer] 폭시어 F405 V2 FC Reaper 55A ESC 8S Stack
ESC + FC 콤보 스택
![[팰콘샵] [Foxeer] 폭시어 F405 V2 FC Reaper 55A ESC 8S Stack](/shop/data/goods/1715866152371.png)
일반가격 : 102,500 (회원 가입시 추가 할인)
적립금 : 1,020원
적립금 : 1,020원
물류창고 :
B
재고 : 물류창고 20개있음
상품번호 : QA85591 (※전화문의시 상품번호를 알려주세요)
Virtual Assistant
Email Us
상품상세설명
Foxeer F405 V2 FC Reaper 55A ESC 8S Stack Video Switcher Servo Barometer
F405 V2 FC + 55A ESC- Foxeer사의 FC와 ESC 콤보 상품입니다.
- F405 V2 FC와 Reaper 55A ESC입니다.
- 자이로는 ICM42688-P을 사용합니다.
- ESC는 BLHeli32펌웨어를 사용합니다.
구성
F405 V2 FC 1개
Reaper 55A ESC 1개
![[팰콘샵] [Foxeer] 폭시어 F405 V2 FC Reaper 55A ESC 8S Stack](https://www.susungrc.com/web/upload/NNEditor/20240419/Foxeer-F405-V2_Stack_5.png)
| Model | Foxeer F405 V2 Flight Controller |
| CPU | STM32F405RGT6 |
| Gyro | ICM42688-P |
| Barometer | DPS310 |
| Power Supply | 4~8S Lipo |
| BEC Output | DC5V/3A; 10V/3A |
| OSD | BF OSD |
| Black Box | 64M Flash Memory |
| UART | 6 Set |
| Connector | DJI; GPS/Compass; 2 Camera Switch; VTX |
| ESC Telemetry | RX1 |
| X8 | Supported |
| ADC | X3 |
| PWM | 1CH |
| Buzzer | YES |
| Smart Audio | YES |
| LED | 1 Set 2812 LED |
| USB | Type-C |
| Fireware | FOXEERF405V2(BetaFlight); F405V2(Ardupilot) |
| Size | 37X37mm |
| Mounting Hole | 30*30mm,Φ4mm |
| Weight(g) | 8.4g |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Model | Foxeer Reaper 55A ESC |
| Firmware | FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9 |
| Continuous /Burst Current | 55A*4 / 80A*4 |
| Input Voltage | DC 9V~36V (3-8S Lipo) |
| BEC | No |
| Telemetry | Supported |
| ESC Programming | BLHeli32 |
| Current Scaling | 70 |
| Input Signal | DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc. |
| Working Temperature | -20℃ ~ +55℃ |
| Working Humidity | 20～95% |
| Storage Temperature | -20℃ ~ +70℃ |
| Mounting Hole | 30.5X30.5mm,Φ4mm/M3 |
| Dimension | 42.5x42x5.5mm |
| Weight | 14.6g |
Stack Package
1 x FC
1 x ESC
8 x M3*8mm silicone grommets
1 x capacity; 5 x M3 nylon nut
1 x 120mm camera cable
1 x 90mm DJI cable
1 x 120mm GPS/Compass cable
1 x FC-ESC cable
1 x 90mm VTx cable
1 x XT60 cable
![[팰콘샵] [Foxeer] 폭시어 F405 V2 FC Reaper 55A ESC 8S Stack](https://www.susungrc.com/web/upload/NNEditor/20240419/Foxeer-F405-V2_Stack_6.png)
