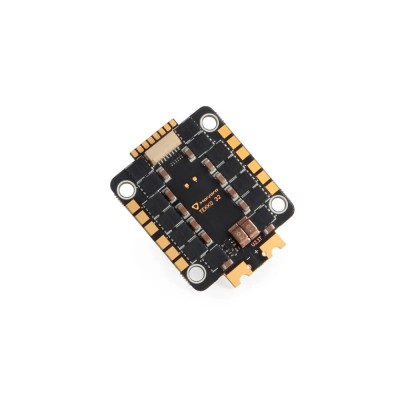

Holybro Tekko32 F4 50A 4in1 ESC BLHeli32

- 3030»çÀÌÁî 50A ESCÀÔ´Ï´Ù.

- 4S~6SÀÇ ÀÔ·ÂÀü¾ÐÀÔ´Ï´Ù.

- BLHeli_32 Æß¿þ¾î¸¦ »ç¿ëÇÕ´Ï´Ù.



±¸¼º

ÇÏ´Ü »çÁø ÂüÁ¶

Features

New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)

PWM Frequency: 16k to 96k

Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specification

Continuous Current: 50A x4

Burst Current: 60A x4

Supports 4-6S battery

Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

ESC telemetry Supported

Onboard analog current sensor

No output BEC

BLHeli_32 firmware

1000uf 35v capacitor included (highly recommended for 6s setup)

Amperage meter scale ratio: 120 (V1.9 Version)

Dimensions: 48x37x6mm / Weight: 13.8g

Mounting holes: M4 30.5x30.5mm (M3 grommets included)

Package includes

Tekko32 F4 4in1 50A ESC *1

M3 Anti-Vibration Silicone Grommet Insert *4

Electrolytic capacitor: 1000uF 35v *1

8pin to 8pin 1mm pitch 65mm cable *1

8pin to 8pin 1mm pitch 25mm cable *1
