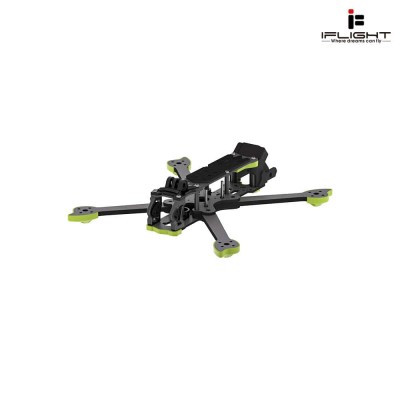

iflight Nazgul XL5 V1.1 Frame Kit

- 5인치 프리스타일/시네마틱 프레임입니다.

- True-X 형태의 프레임입니다.

본 제품은 조립을 요하는 키트 상품 입니다.

모터, FC, ESC 등 기자재는 포함되지 않습니다.

구성품

하단 사진 참조

Description

The iFlight Nazgul5 V3/Nazgul XL5 frame is a 5" freestyle frame.

Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control.

Highlights

5" version also fits 5.1" style propellers

Fits both 30.5x30.5 and 20x20 stacks

Compatible with DJI O3 HD System

5mm arm design for more durability

Popular True-X configuration

LED illuminated Logo

TPU crash-guards

Easy-Swap arms

Changelog : July 15, 2024: Battery Plug mount updated to a fixed form. The frame kit upgraded to V1.1.

Specifications

Product Name: Nazgul XL5 V1.1 Frame Kit

Geometry: True-X

Wheelbase: 245mm

Frame Dimension: L173*W173*H34 mm

Arm Thickness: 5mm

Bottom Plate Thickness: 2.5mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Max Flight Stack Height: 22mm

Max VTX Height: 29mm

Motor Mounting：16x16mm

VTX Mounting：30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Weight: 233g (Included no TPU Parts)

Packing List

1 x Nazgul XL5 V1.1 Frame Kit

1 x GoPro TPU Base Mount

1 x Screw Bag

4 x TPU Armguard

1 x Bottom Plate Front Protection TPU

1 x Bottom Plate Rear Protection TPU

1 x Anti-slip Battery Pad

4 x Motor Wire Shield Tube

2 x Battery Strap(20*250mm)
