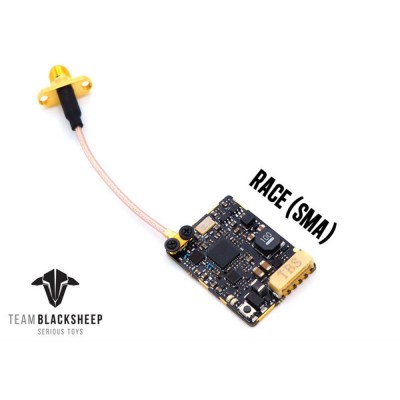

TBS UNIFY PRO 5G8 HV - RACE(SMA)

- Team BlackSheepÀÇ 5.8G ¿µ»ó¼Û½Åº¸µåÀÔ´Ï´Ù.
- Ãâ·ÂÀº 25-200mW °¡º¯ÀÔ´Ï´Ù.
- ·¹ÀÌ½Ì ´ëȸ¿ëÀ¸·Î ¾Ë¸Â½À´Ï´Ù.
- HV(ÇÏÀ̺¼Æ¼Áö)¶ó¼­ ÀÔ·Â Àü¾ÐÀÌ 6¼¿±îÁö °¡´ÉÇÕ´Ï´Ù. ¹èÅ͸® Àü¿ø¿¡ Á÷°áÇصµ µË´Ï´Ù.
- ¾ÈÅ׳ª Ä¿³ØÅʹ SMA¹æ½ÄÀÔ´Ï´Ù.
- U.FL´ÜÀÚ°¡ º¼Æ®·Î °íÁ¤µÇ¾î º¸´Ù °ß°íÇÕ´Ï´Ù.
- ½º¸¶Æ®¿Àµð¿À¿Í º°µµ·Î ¿Àµð¿À ´ÜÀÚ°¡ »ý°å½À´Ï´Ù. º°¸ÅÀÇ ¸¶ÀÌÅ© ¿¬°áÇÏ½Ã¸é µË´Ï´Ù.

·Î¿ì¹êµå °¡´ÉÇÑ ÃֽŹöÀüÀÔ´Ï´Ù.

±¸¼º
¿µ»ó¼Û½Åº¸µå 1°³
ÄÉÀ̺í 1°³
¸Þ´º¾ó

Àü¿ø³Ö°í ºñÇàÀ» ÇÏÁö ¾ÊÀ¸¸é 3ºÐ~3ºÐ30ÃÊ ÈÄ¿¡ ¿µ»óÀÌ ²¨Áý´Ï´Ù.
¹ß¿­¶§¹®¿¡ ±×·±°ÍÀ̸ç, ¿­ÀÌ ½ÄÀ¸¸é ´Ù½Ã Á¤»óÀÛµ¿ ÇÕ´Ï´Ù. °íÀåÀÌ ³ªÁø ¾Ê½À´Ï´Ù.
ºñÇàÁß¿¡´Â Äð¸µÀÌ µÇ¹Ç·Î ÀÌ»ó¾øÀÌ ºñÇà°¡´ÉÇÕ´Ï´Ù.

¾Æ·¡ ¸Þ´º¾ó ¸µÅ©ÀÔ´Ï´Ù.
http://www.team-blacksheep.com/tbs-unify-pro-5g8-manual.pdf




MAIN FEATURES
Smallest, lightest video transmitter on the market
2-6S input power supported
25mW / 200mW power settings
Ultra-clean transmission (up to 16 pilots at once!)
PitMode - power up your quad during a race
Easy OSD, FC and RC channel changes, with fallback button menu
Robust RF amplifier allows powering up without antenna for hours!
Clean powerup and video switching
CE certified

PITMODE - MADE TO RACE
Zero interference even while powered up, it's now a possibility! If you've ever repaired a quad during a race, you'll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW's), and move to frequencies unused by race organizers, to allow you to power up your quad and still see the image! You've got a few meters of range to put your quad through its paces before placing it on that starting grid, and in combination with CleanSwitch you can power on as soon as your channel is available without interrupting any of the active channels.

SMARTAUDIO V2 - FULL CONTROL
SmartAudio technology provides UART and I2C control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. TBS CORE PRO). With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit ... jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!

CLEANSWITCH - NEIGHBOR FRIENDLY
CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly ... that's how we like it at TBS :)

SAY NO! TO DIPSWITCHES
Even though learning binary was a fun mind-game, in practice a single-push-button or OSD-controlled video transmitter is just much easier to operate. Gone are the days of video transmitter cards, stepping on people's channels by mistake, or a mismatch between your goggle and video transmitter frequencies.

SPECIFICATIONS
Operating Voltage: 2S - 6S
Supply current: 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm
Weight: 7g (with SMA, without antenna)
Input Connector: JST GH 7pin (after July 2018)
Antenna Connector: SMA Female Socket with screw mounting holes, U.FL to VTx
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW)

INCLUDED
TBS UNIFY 5G8 Video transmitter
Video Transmitter pigtail cable
TBS UNIFY Pro Manual
TBS SmartAudio Specifications

»ç¿ë¹ýÀº ¾Æ·¡ ¿µ»óÀ» Âü°íÇϽñ⠹ٶø´Ï´Ù^^
