[TR] Sub-Micro FPV 520 VTL HD CAM (NTSC)

Ÿ·Ô»çÀÇ 200~300±Þ ÃʼÒÇü ¼­ºê ¸¶ÀÌÅ©·Î FPV CAM.(600TVL)

µ¿ÀÛ Àü¾ÐÀº 2S~3S(7.4V~11.1V) ÀÔ´Ï´Ù.

TAROT's customized MINI 520TVL small ultra-light high-definition color camera (FPV aerial camera) uses a 120-degree high-definition wide-angle lens, suitable for mini200/250/300 small traversing machines, FPV aerial photography, surveillance and other fields.

The product is small in size and weighs about 5g. It has a built-in voltage-reduction module and does not require voltage reduction. It can be directly connected to a 2S-3SV lithium polymer battery (5V-12V) for power supply.

- Red wire: connect to DC (5V-12V) power input
- Black wire: connect to the negative power supply and video ground
- Yellow line: connect to AV video signal output


- Resolution: 520TV Lines (High Definition)
- Effective pixels: NTSC=720(H)¡¿487(V)
- Video format: NTSC
- Photosensitive chip: 1/4 inch HD Color CMOS
- Video output: 1.0Vp-p/75¥Ø
- Minimum illumination 0.008 Lux (ultra low illumination)
- Power consumption: 40MA ¡¾10%
- Working voltage: DC5-15V ¡¾10%
- Synchronization system: internal synchronization
- Signal to noise ratio: greater than 50dB
- Electronic shutter (N)1/60-1/10000s, (P)1/50-1/10000s
- Working temperature: 0¡É~45¡É


- 520TVL small high-definition color camera ¡¿ 1 (15 ¡¿ 20 ¡¿ 22mm ¡¾ 1mm) 5g

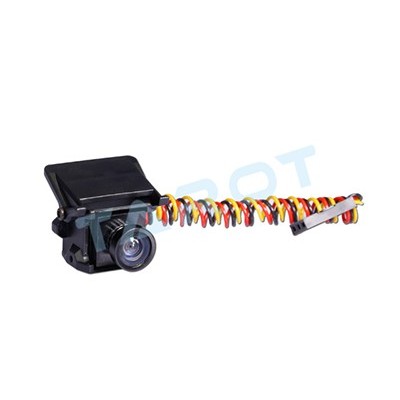

<Á¦Ç° À̹ÌÁö>
