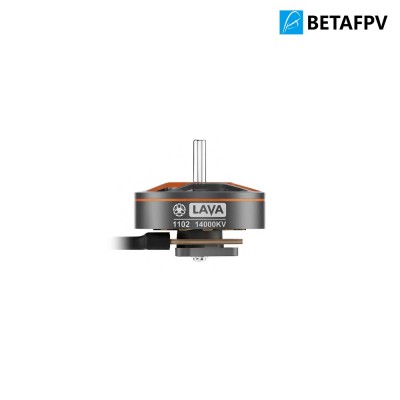

BETAFPV LAVA Series 1102 14000KV Brushless Motor (1pcs, 22mm)

- Femto¿ë ¼øÁ¤ ¸ðÅÍÀÔ´Ï´Ù.

±¸¼º

¸ðÅÍ 1°³

The LAVA Series 1102 Brushless Motor, built for Pavo Femto, achieves nearly 130g peak thrust with advanced tile-shaped magnets,

an optimized magnetic circuit, and improved coil filling ratio. Paired with the whoop's duct, Pavo Femto boasts a thrust-to-weight ratio exceeding 6.75:1.

Designed for versatility, it features four M2 propeller mounting holes for compatibility with diverse propellers and whoops, making it ideal for various DIY projects.

Prioritizing power, efficiency, and extended flight times, the LAVA 1102 ensures robust performance for every pilot.

Bullet Points

• Designed for Pavo Femto: Tuned 14000KV motors paired with the whoop¡¯s duct gain enable Pavo Femto to achieve an impressive 6.75:1 thrust-to-weight ratio.

• Outstanding Efficiency: Advanced tile-shaped magnets and optimized coil design ensure efficiency above 1.5g/W at peak 130g thrust.

• Lightweight Design: Weighs just 3.4g/3.6g, minimizing overall payload for better agility.

• DIY Ready: Includes 4 M2 mounting holes to fit a wide range of props and drone builds.

Specifications

Item: LAVA Series 1102 Brushless Motors

KV: 14000KV

Maximum power: 84.1W

Maximum current: 10.51A

Rated voltage: 2S

Weight: 3.4 (¡¾0.1)g (22mm cable length), 3.6 (¡¾0.1)g (44mm cable length)

Shaft diameter: ©ª1.5mm

Shaft length: 5mm

Wire gauge: 28AWG

Wire length: 22mm/44mm

Connector: JST1.25-3Pin

Motor mounting hole size: 3*M1.4 EQS ©ª6.6

Propeller mounting hole size: 4*M2 EQS ©ª5

Unleashing Performance

The LAVA Series 1102 Brushless Motor, a new addition to the LAVA Series, is designed specifically for Pavo Femto.

With advanced tile-shaped magnets, an optimized magnetic circuit, and improved coil filling ratio, it achieves approximately 2.1g/W efficiency during steady flights.

Even at peak thrust of 130g, the motor maintains an efficiency above 1.5g/W, providing exceptional power while extending flight times.

DIY Flexibility

Equipped with four M2 propeller mounting holes, the LAVA 1102 motor ensures compatibility with a

variety of propellers and whoops, offering versatile DIY options for pilots.

Recommended Parts

Props: Gemfan 1611 3-Blade Propellers (1.5mm Shaft), Gemfan 1608 3-Blade Propellers (1.5mm Shaft)

Quad: Pavo Femto Brushless Whoop Quadcopter

Frame: Pavo Femto Brushless Whoop Frame

FC: F4 2-3S 20A AIO FC

Battery: LAVA 2S 450mAh / 550mAh Battery

Package

1 * LAVA Series 1102 Brushless Motor

4 * M1.4 * 3 Phillips Flat Head Screws

4 * M1.4 * 4 Phillips Flat Head Screws
