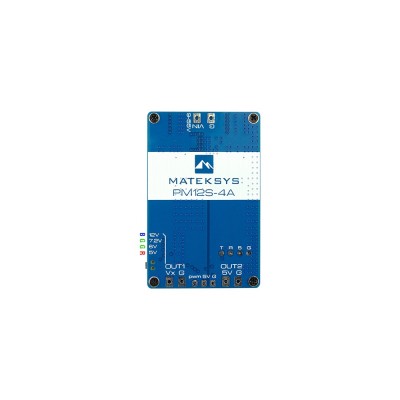

Matek POWER MODULE PM12S-4A
구성
파워 모듈 1개
Specifications
Wide 9V to 55V Operating Input Range with TVS protection
2x independent Step-Down Voltage Regulators
OUT-1 Vx, 5V / 6V / 7.2V / 12V output options(5v default). 4A continuous, 5A Peak. ON/OFF is controllable by PWM signal.
OUT-2 5V (Fixed), 4A continuous, 5A Peak
Output ripple: 20mV (VIN=50V, Output 5v @ 4A), 40mV (VIN=50V, Output 12V @ 4A),
Size & Weight: 50 x 32 x 7mm, 18g
Packing: 1x PM12S-4A (no wires)
마텍 홈페이지에 가시면 세팅에 관한 많은 자료를 찾아보실 수 있습니다.
![[팰콘샵] [Matek] 마텍 파워 모듈 (PM12S-4A)](https://www.susungrc.com/web/upload/NNEditor/20250807/Mateksys_PM12S-4A_4.jpg)
Settings
1. Set the OUT-1(Vx) voltage
Output voltage indicators, 5V Red, 6V Green, 7.2V Green, 12V Blue
Press and hold the button for 3 seconds to enter the setting of the OUT-1 voltage.
The LED on the current output voltage will blink. then press button to choose the voltage between 5V(Red), 6V(Green), 7.2V(Green), 12V (Blue) .
The value will be saved if no button action within 3 seconds.
2. PWM control
PWM Freq & Range: 50Hz-330Hz, 900-2100
OUT-1 Default output is ON if no PWM signal connected
Connect the PWM pin and GND to a spare PWM channel on the receiver or flight controller.
OUT-1 will be turned OFF when the auxiliary switch’s pwm value becomes higher than 1800. It will be turned ON when the value falls below 1200.
