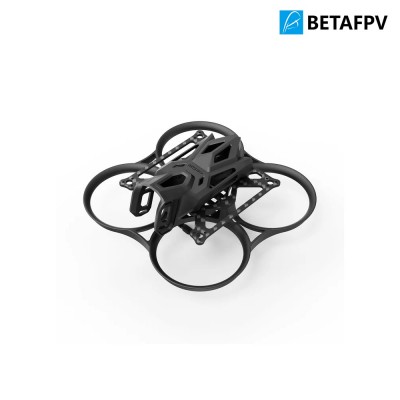

BETAFPV Pavo Pico II Brushless Whoop Frame for DJI O4 Air Unit

- Pavo Pico II ¿ë ÇÁ·¹ÀÓŶÀÔ´Ï´Ù.

- »ö»óÀº ºí·¢ÀÔ´Ï´Ù.

±¸¼ºÇ°

ÇÏ´Ü »çÁø ÂüÁ¶

The Pavo Pico II Brushless Whoop Frame delivers the ultimate DJI O4 integration,

combining effortless assembly with just four screws and a supported structure with guided mounting points for exceptional rigidity.

The newly designed carbon plate seamlessly accommodates both DJI O4 and O4 Pro, future-proofing your investment while maintaining perfect compatibility.

This precision-engineered foundation perfectly complements the vibration-damping O4 Bracket II,

working in unison to eliminate jello effect and ensure buttery-smooth, professional video footage.

Bullet Points

• O4 Air Unit Bracket II: The integrated bracket with 4 shock-absorbing balls eliminate jello for butter-smooth video.
• Simplified Assembly: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
• O4 & O4 Pro Ready Carbon Plate: A redesigned baseplate provides seamless compatibility with both DJI O4 and O4 Pro, offering stunning HD footage and ultimate build versatility.
• Unmatched Durability: The integrated injection molding and supported design create a rock-solid, lightweight foundation for confident flying.

Specifications

Item: Pavo Pico II Brushless Whoop Frame

Material: PA12/PP

Wheelbase: 80mm

Color: Black/Transparent Gray

Carbon Plate Thickness: 1.5mm

Camera Mounting Spacing: 14mm

Flight Controller Mounting Hole Size: 25.5¡¿25.5mm, compatible with regular whoop FCs

Motor Mounting Hole Size: 3-M1.4-¥õ6.6mm

Battery Slot Size: 16*12.7mm

Weight: 19g (O4 frame), 9g (whoop duct)

Diagram

Pavo Pico II Frame

The Pavo Pico II frame revolutionizes assembly simplicity. Featuring embedded nuts, it requires just four screws for a secure connection

that withstands crashes and ensures hassle-free building. Its advanced injection-molding technology combines a supported structure and three guided mounting points,

guaranteeing perfect carbon plate alignment every time while eliminating flex for an incredibly rigid platform.

This streamlined approach makes building a durable and high-performance setup easier than ever.

The newly designed carbon plate seamlessly integrates both the DJI O4 and O4 Pro, future-proofing your build and empowering

you to capture stunning HD footage without compromise. With pre-tuned PID parameters optimized for both O4 systems,

achieving peak performance is effortless--simply select your configuration via the OSD and fly with confidence.

For pilots seeking even greater versatility, the frame supports extensive DIY customization.

Attach battery straps or 3D-printed components to accommodate various battery sizes,

tailoring your setup to match specific flight preferences and performance requirements.

Recommended Parts

Quadcopter: Pavo Pico II Brushless Whoop Quadcopter

Motor: LAVA1102 | 14000kv Brushless Motor

Propeller:  GF 45mm 3-Blade Propeller

Battery: LAVA 2S 450mAh 75C Battery, LAVA 2S 550mAh 75C Battery

FC: F4 2-3S 20A AIO FC V1

Supported HD VTX: DJI O4 Air Unit, O4 Air Unit Pro (not included in the package)

Pavo Pico II Brushless Whoop Frame (O4 Frame Version)

1 * Pavo Pico II Carbon Plate

1 * Pavo Pico II Whoop Duct

1 * Top Plate for O4 Air Unit Bracket II

1 * Bottom Plate for O4 Air Unit Bracket II

2 * 5.8G VTX Antenna

6 * Shock-absorbing Balls for Flight Controller (8mm)

6 * Shock-absorbing Balls for O4 Air Unit Bracket II (8mm)

6 * Shock-absorbing Pads for O4 Air Unit Bracket II (1.5mm)

6 * M2*14 Flat Head Socket Cap Screws

6 * M2*4 Socket Head Cap Self Tapping Screws

8 * M1.4*6 Phillips Flat Washer Head Tapping Screws

1 * Phillips Screwdriver

1 * H1.5 Hex Screwdriver
