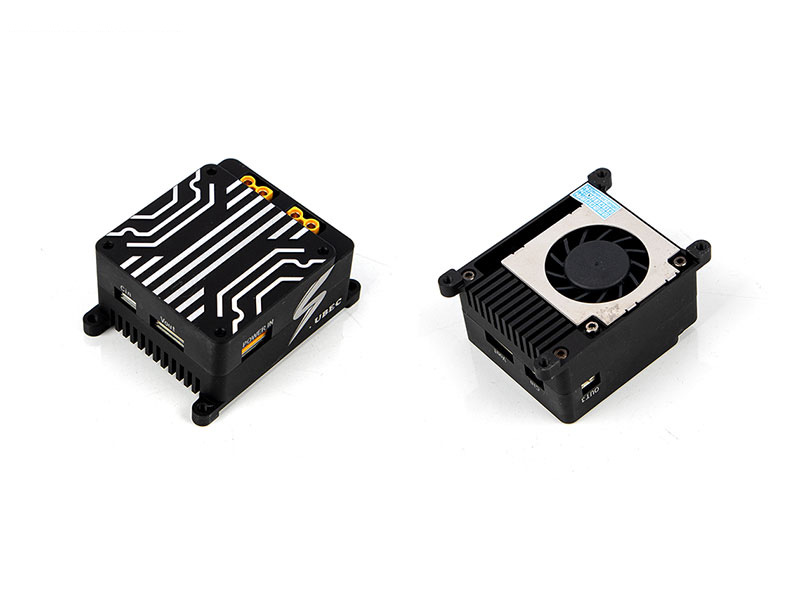

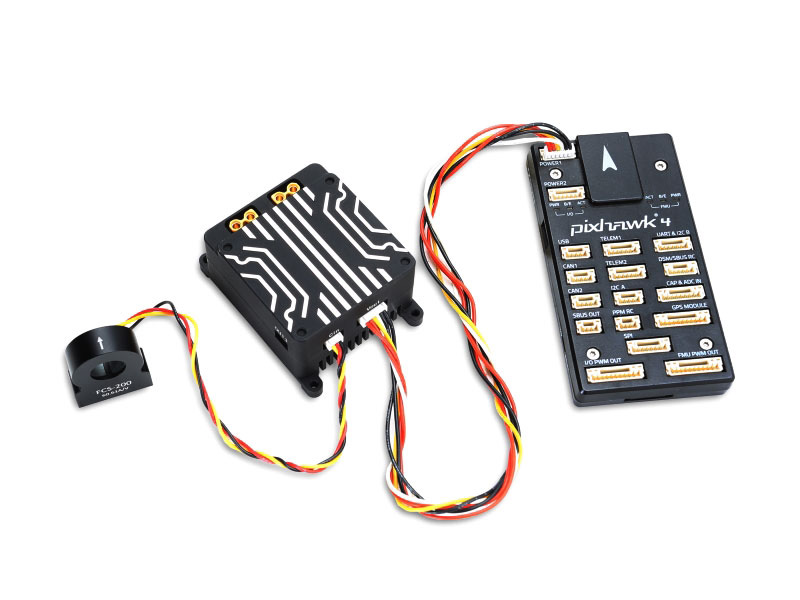

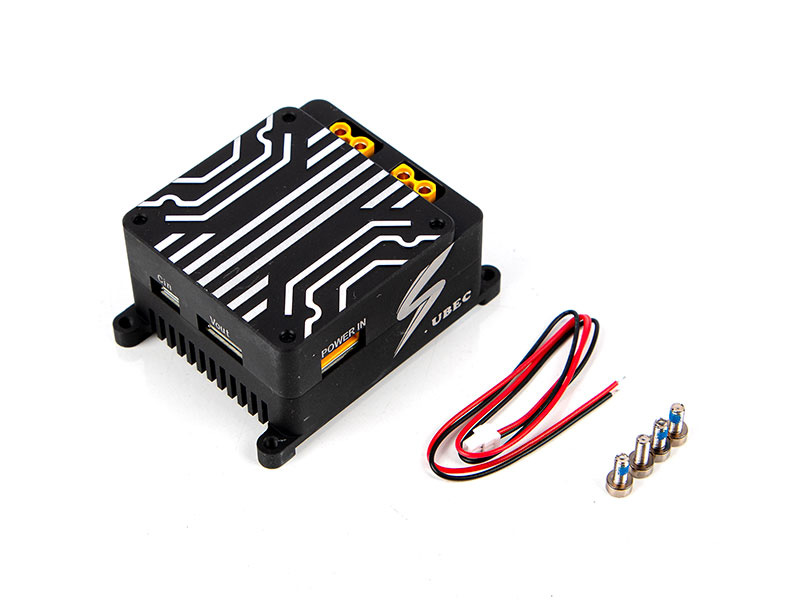

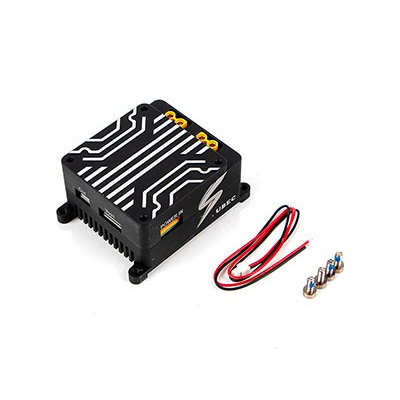

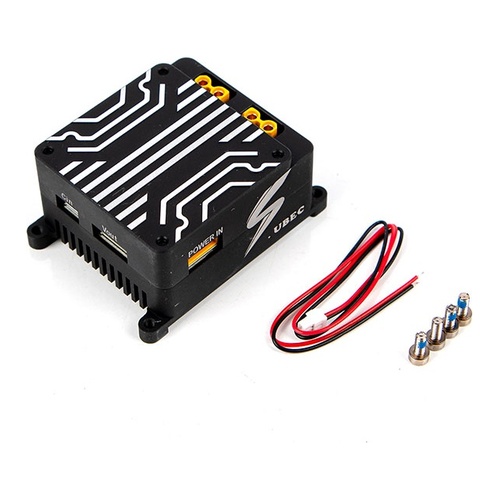

[Tarot] Pixhawk Ammeter Power Module (S.UBEC/10A/80V/120W)

타롯사의 PixHawk FC용 Ammeter 하이 파워 모듈 세트.(120W)

S.BEC 내장형으로 최대 10A BEC 출력 및 최대 80V까지 입력이 가능한 PMU 입니다.

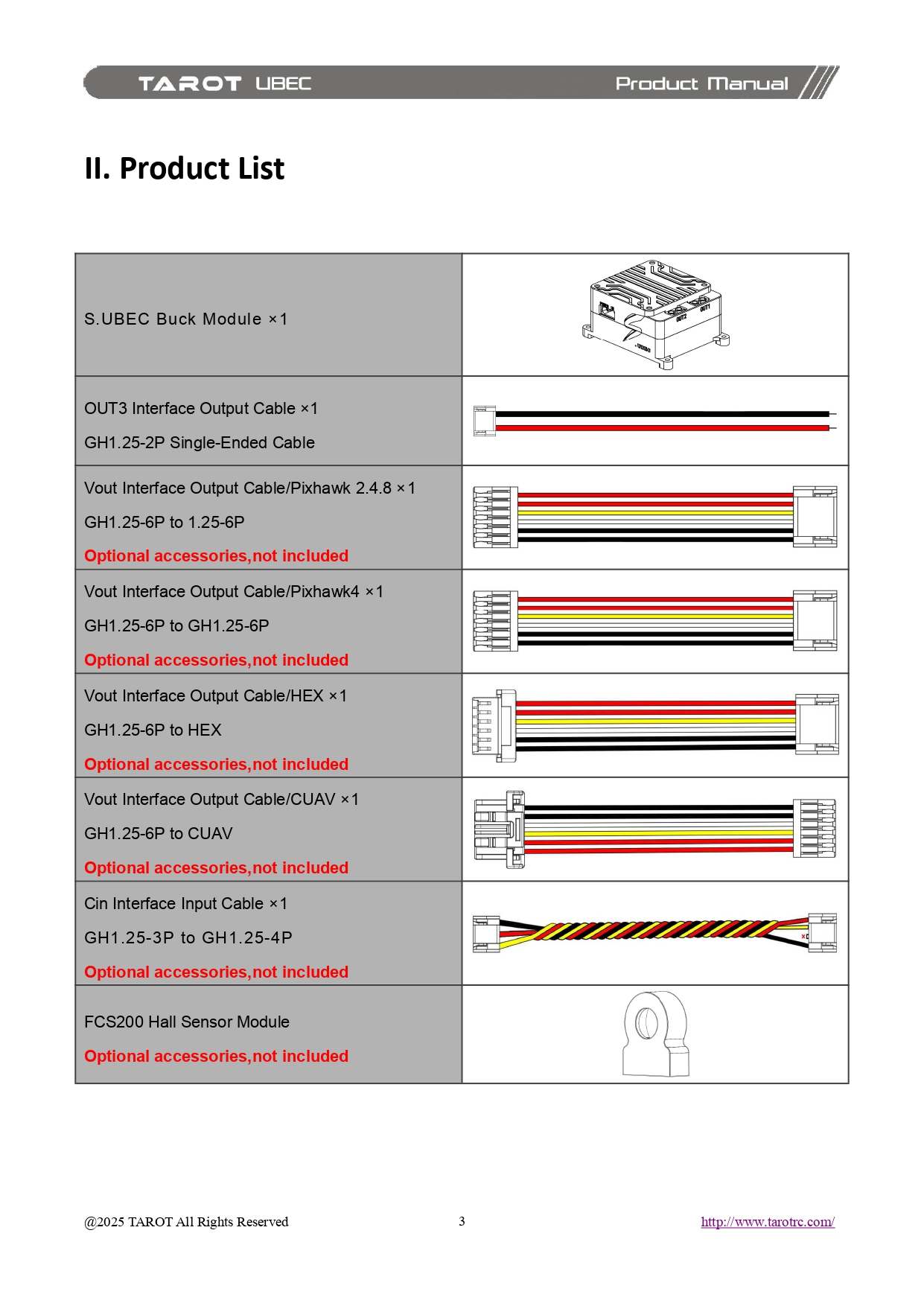

Pixhawk 버젼별 연결 컨넥터(별매품)는 아래 이미지를 참고 하세요.

[팰콘샵] TL3304 [TR] Pixhawk Ammeter Power Module (S.UBEC/10A/80V)

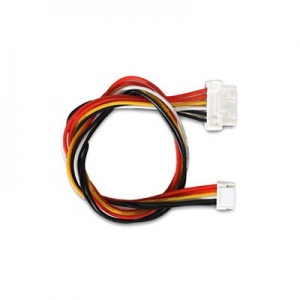

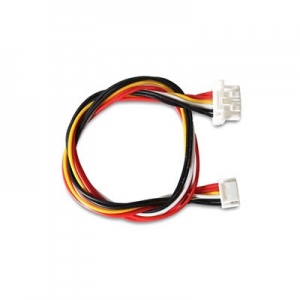

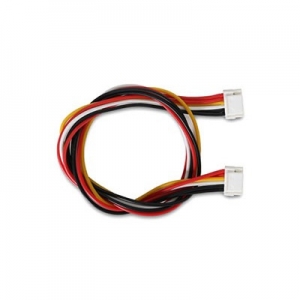

[TR] Pixhawk Voltage/Current Meter Cable/CUAV
3,000

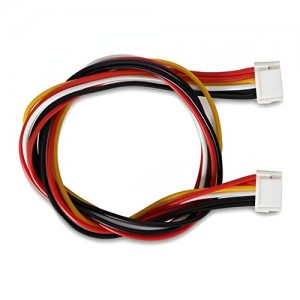

[TR] Pixhawk Voltage/Current Meter Cable/Hex1.25(Cube)
3,000

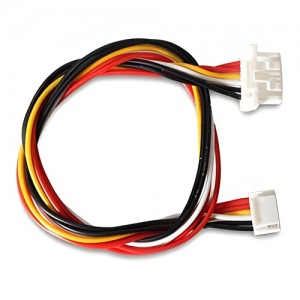

[TR] Pixhawk Voltage/Current Meter Cable/GH1.25(PX4)
3,000

[TR] Pixhawk Voltage/Current Meter Cable/1.25(PX2.4.8)
3,000

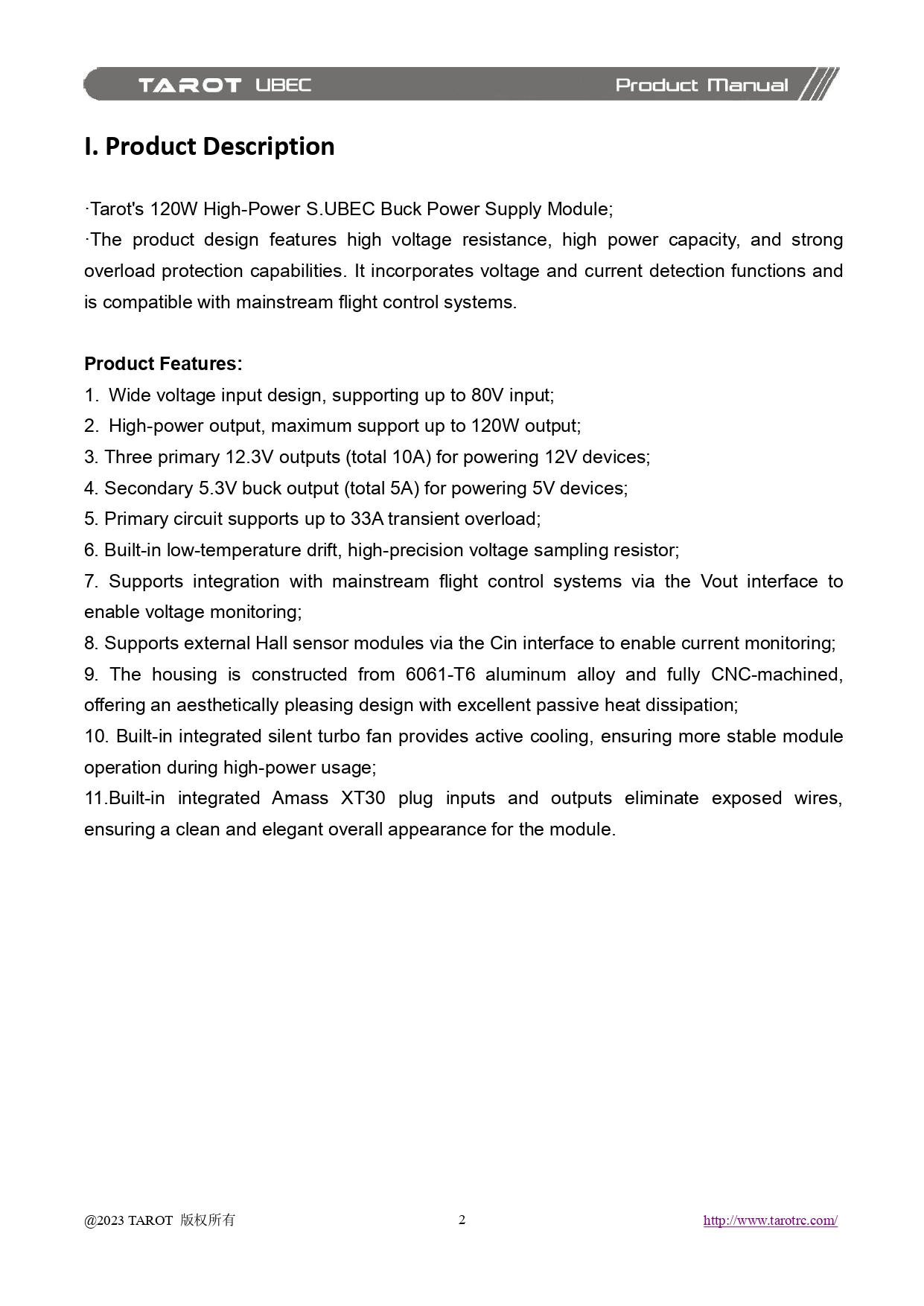

- Tarot's 120W High-Power S.UBEC Buck Power Supply Module;

- The product design features high voltage resistance, high power capacity, and strong overload protection capabilities. It incorporates voltage and current detection functions and is compatible with mainstream flight control systems.

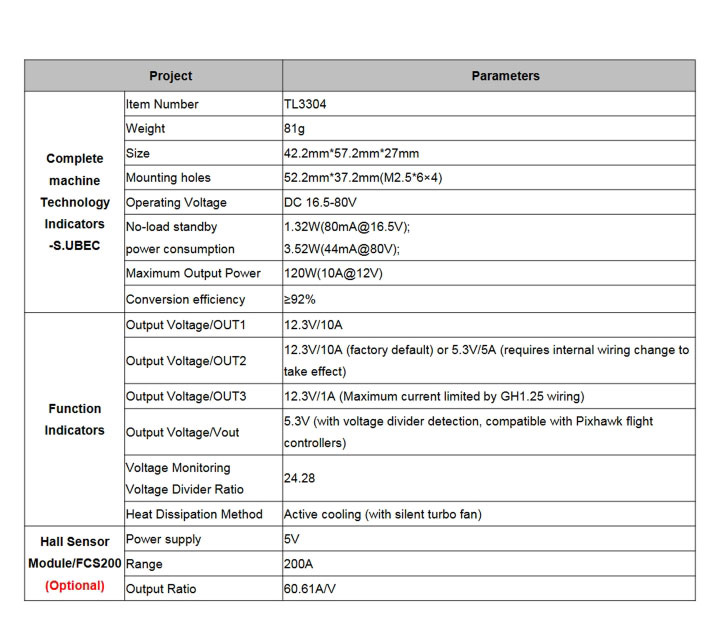

1. Wide voltage input design, supporting up to 80V input;
2. High-power output, maximum support up to 120W output;
3. Three primary 12.3V outputs (total 10A) for powering 12V devices;

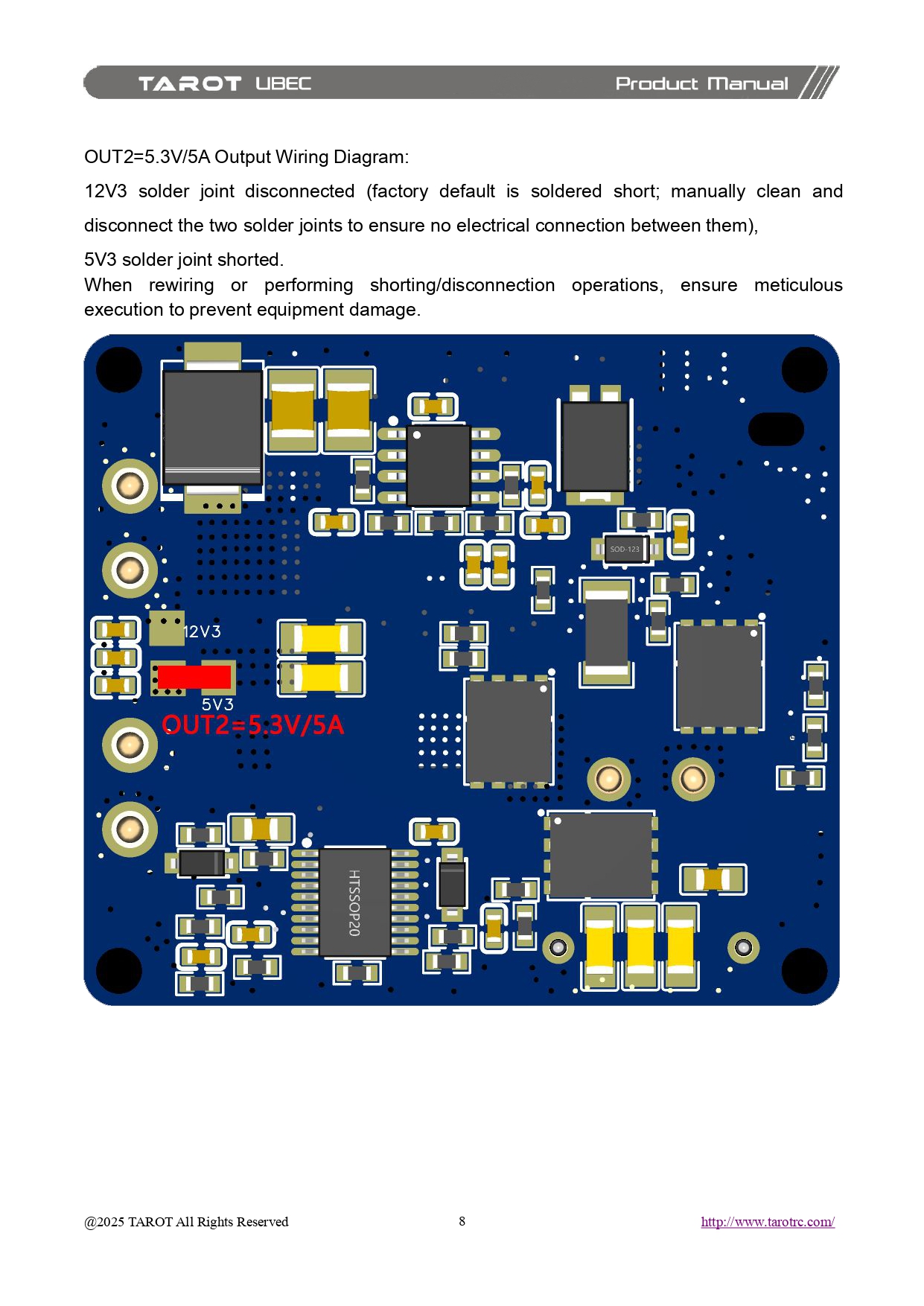

4. Secondary 5.3V buck output (total 5A) for powering 5V devices;
5. Primary circuit supports up to 33A transient overload;
6. Built-in low-temperature drift, high-precision voltage sampling resistor;

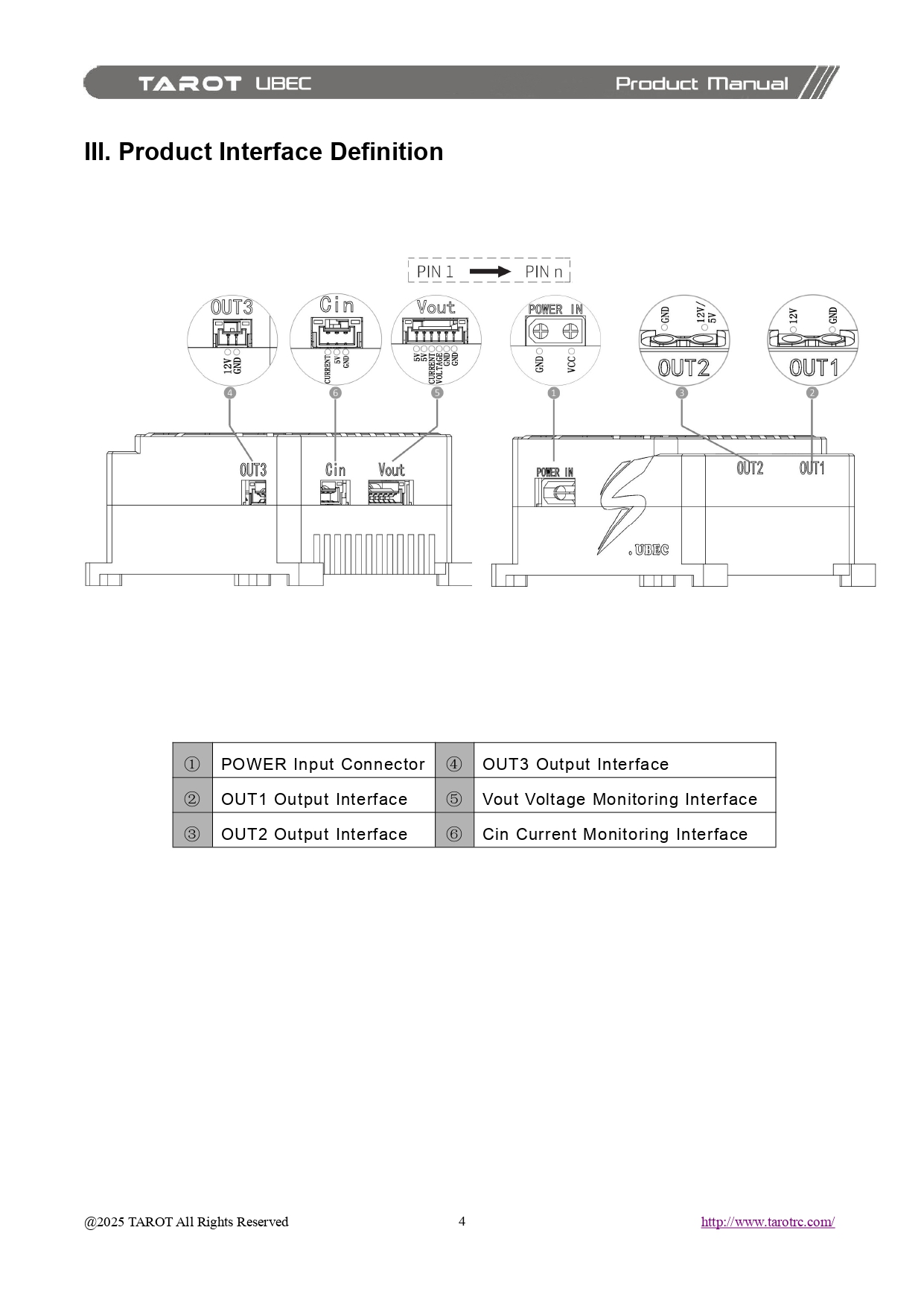

7. Supports integration with mainstream flight control systems via the Vout interface to enable voltage monitoring;

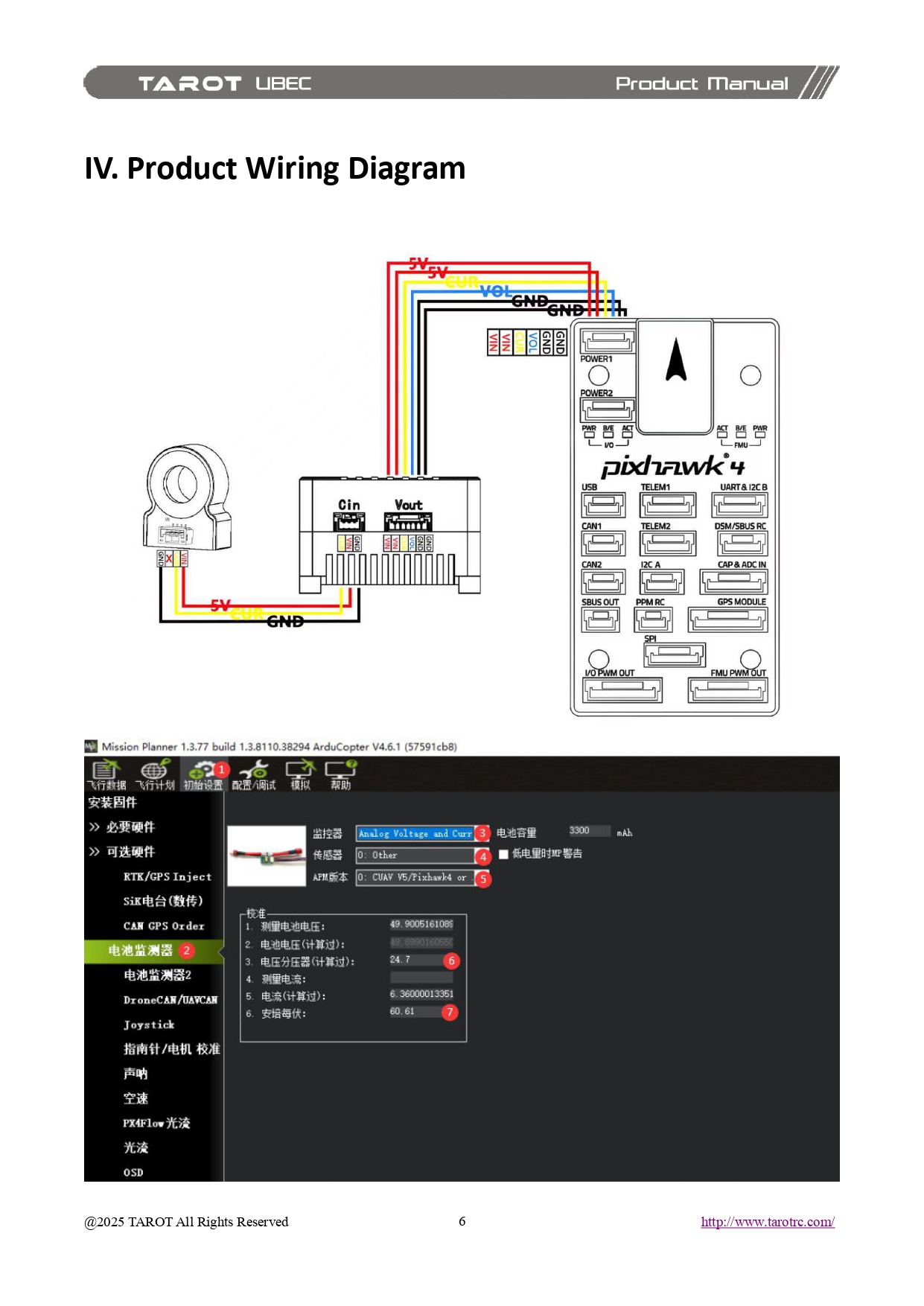

8. Supports external Hall sensor modules via the Cin interface to enable current monitoring;

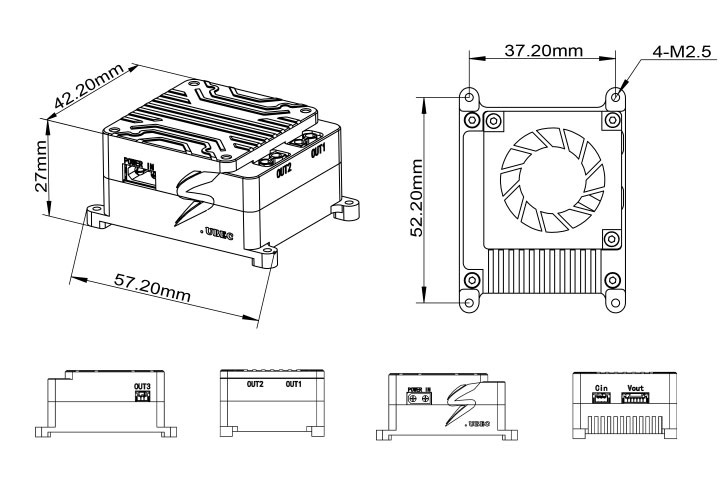

9. The housing is constructed from 6061-T6 aluminum alloy and fully CNC-machined, offering an aesthetically pleasing design with excellent passive heat dissipation;
10. Built-in integrated silent turbo fan provides active cooling, ensuring more stable module operation during high-power usage;
11.Built-in integrated Amass XT30 plug inputs and outputs eliminate exposed wires, ensuring a clean and elegant overall appearance for the module.
