상품상세설명

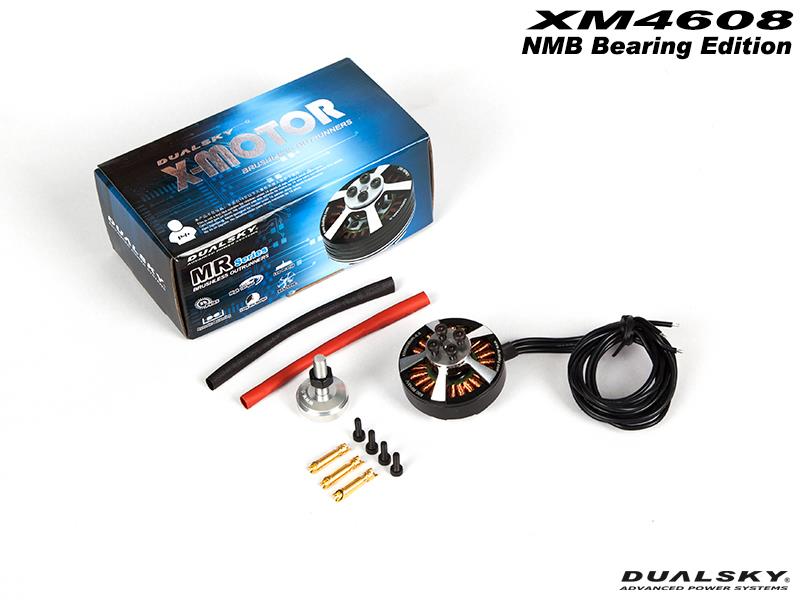

DUALSKY XM4608MR-10 Brushless Motor for Multicopter(22pole/590KV)

새로운 700~800 Wheel Base 멀티콥터를 위해 설계된 신형 MR Series.

멀티콥터 전용으로 설계된 22pole 규격 Super Torque, High Efficiency Motor로서 휠 베이스 기준 700~800급 Quad/Hexa Copter 또는 X8용 기체에 적합합니다.

(QUAD COPTER 기준 전비중량 2.8Kg 전후/Hexa Copter 기준 4.0Kg 전후)

파워 시스템은 4Cell(14.8V)을 기준으로 14x5.5~15x5.5in MR Type Carbon Prop을 사용합니다.

변속기는 PolyTronics사의 XM40HV(Simon-K)와 최상의 매칭이 됩니다.

MR 전용 프롭 및 YOKE 타입 프롭을 모두 사용할 수 있도록 전용 Prop Adaptor 및 각종 악세서리가 포함되어 있습니다.

DualSky사의 MR Seires 모터는 모두 일본산 MineBee 베어링만을 사용합니다.

Features
22 poles brushless motor, specially designed for High-end Multi-rotor/UAV systems
Based on proven TE-MR technology, all parts are newly designed
2nd generation stator design, still using the best 0.2mm material, improved motor efficiency
New winding method, lower IR, remarkable lower temperature after long running time
Detachable stator, easier to maintain
Imported over-sized ball bearing, low noise, ultra-long working life
Short shaft design, better to work with MR propellers
Optimized Dualsky "Star" appearance with precise secondary processing, artistic and high-precision
high-precision rotor, dynamically balanced on both size, lowest resonance in RC industry
New stator cover, protect power wires
Multiple mounting holes, compatible with DJI frames
Extra long silicone power wire, easier for installation
Laser-etching model data and serial number
Comes with full propeller adapters, compatible with both airplane and multi-rotor propellers
There are two types of motors for each motor size to fit the different flight requirements: high power type and long running time type
Recommended to work with Dualsky MRP series propellers to achieve best working efficiency
Recommended to work with Dualsky MR series ESC (400Hz control frequency)
Fully tested to pass quality inspection in Dualsky Shanghai Factory
