상품상세설명

서보 상세 제원
토크	5.8 kg/cm
속도	0.14 sec/60°
규격	38.4 x 18.5 x 34.5 mm (가로x세로x높이)
무게	32g
※ 토크는 높을수록, 속도는 낮을수록 좋습니다.

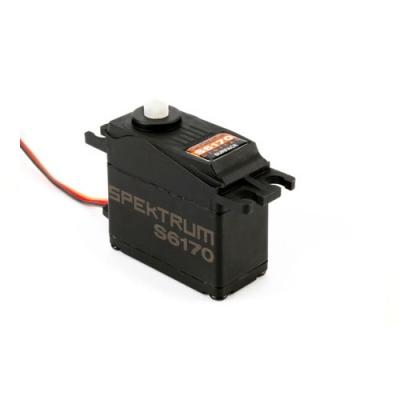

S6170 Standard Digital Surface Servo

Features

• 65 oz.-in. torque torque at 6.0V-perfect for most 1/10 2WD vehicles
• Long lead for use in bigger chassis such as some short course trucks—servo can be installed without a servo extension
• .16 sec/60 degrees provides a quick response as a steering or throttle servo
• Waterproof case design protects electronic components

Specifications

Size Category: Standard
Type: Digital
Application: 1/10 scale 2WD vehicles
Torque: 70 oz-in (5.0 kg-cm) @ 4.8V; 80 oz-in (5.8 kg-cm) @ 6.0V
Speed: 0.17 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6.0V
Length: 1.51 in (38.4mm)
Width: 0.73 in (18.5mm)
Height: 1.36 in (34.5mm)
Bushing Or Bearing: Bearing
Bearing: Single
Motor Type: Brushed
Connector Type: Universal
Gear Type: Nylon
Voltage: 4.8 - 6.0V
Weight: 1.2 oz (32 g)

---
