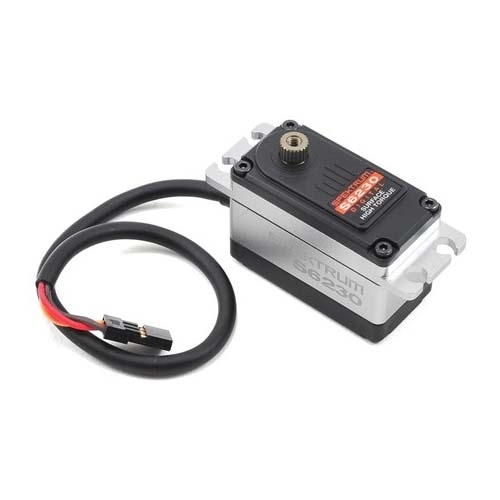

[SPEKTRUM] S6230 Digital Surface Servo (차량용)
![[팰콘샵] SPMSS6230 [SPEKTRUM] S6230 Digital Surface Servo (차량용)](/shop/data/goods/fm99998837_1792148285.jpg)
판매가격139,800 원회원 가입시 추가 할인
적립금1,390 원
물류창고
C
재고
물류창고 1개있음
상품번호QQ98837※ 전화문의시 상품번호를 알려주세요
매진임박현재 잔여 수량이 1개 밖에 없습니다!
Email Us
상품상세설명
믿을 수 있는 팰콘샵, 6가지 안심 약속
99.9% 실재고
22년 전문가
확실한 기술지원
출고 전 촬영
실시간 배송알림
Since 2004
| 서보 상세 제원 | |
|---|---|
| 토크 | 22.4 kg/cm |
| 속도 | 0.14 sec/60° |
| 규격 | 41 x 20.8 x 30 mm (가로x세로x높이) |
| 무게 | 59.5g |
| ※ 토크는 높을수록, 속도는 낮을수록 좋습니다. | |
The Spektrum S6230 servo offers a high-torque solution in a compact form factor for 1/10 class vehicles. For select 2wd and 4wd buggy platforms, a shorty style servo is preferred to allow for extra real-estate to mount electronics in the chassis. Additionally rock crawlers, monster trucks, and touring cars can benefit from this servos smaller than average size.
Key Features:
- Removable wire harness with different lengths available
- 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
- Aluminum case for good heat dissipation
- Aluminum mounting tabs
- NMB dual main bearings
- 23T output shaft
Specifications:
- Size Category: Specialty
- Type: Digital
- Application: 1/10 Buggy, Truck, On-Road
- Torque: 311 oz-in (22.4kg-cm) @ 6.0V
- Speed: 0.14 sec/60 deg @ 6.0V, at no load
- Length: 1.61 in (41mm)
- Width: 0.82 in (20.8mm)
- Height: 1.18 in (30mm)
- Weight: 2.1 oz (59.5g)
- Bushing Or Bearing: Bearing
- Bearing: Dual
- Motor Type: Coreless
- Connector Type: Z-connector, removable
- Gear Type: Metal
- Gear Material: Steel, Aluminum
- Current Draw Idle: 9.8 mA @ 6.0V
- Current Draw Stall: 4900mA @ 6.0V
- Voltage: 6.0V
