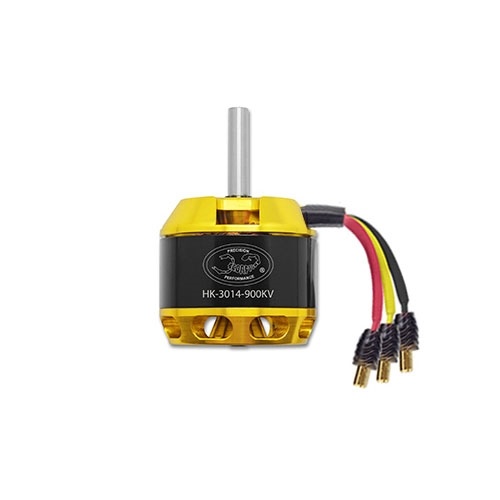

The Scorpion HK-30 series motors have been developed for the newer electric helicopter that are now coming onto the market. This HK-3014-900 KV motor designed to provide long flight time and power that you need to use for Goblin 380, while still maintaining excellent efficiency and cool running characteristics.
Scorpion HK-30 Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to with stand high temperatures, making a motor that is virtually impossible to burn up in normal use.
This motors come with 4.0mm male bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller with matching heat shrink tubing. For maximum strength, motors feature an 5 mm diameter at the output shaft to fit standard size pinion gears.
Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.
For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!
Specifications
Stator Diameter
30.0 mm(1.181 in)
Stator Thickness
14.0 mm(0.551 in)
No. of stator Arms
12
No. of stator Poles
10
Motor Wind
11T Turn Delta
Motor Wire
7-Strand 0.25 mm
Motor Kv
900KV RPM/Volt
No-Load Current
(IO/10V) 1.09 Amps
Motor Resistance(RM)
0.065 Ohms
Max Continuous Current
28 Amps
Max Continuous Power
650Watts
Weight
119 Grams (4.19 oz)
Outside Diameter
37.5 mm (1.476 in)
Shaft Diameter
4.98 mm (0.196 in)
Body Length
34.5 mm (1.358 in)
Overall Shaft Length
57.0 mm (2.244 in)
Max. Peak Current
43 Amp (2 Seconds)
Max. Peak Power
1000 Watts (2 Seconds)
Max. Lipo
6S
Drive Frequency
8kHz
Included in the Box
1 x Scorpion HK-3014-900KV 5mm shaft motor 3 x Female Connectors 3 x Heat Shrink 4 x M3*0.5 Screws
