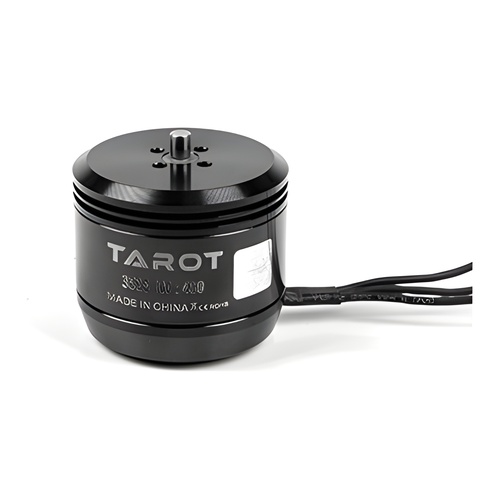

-Tarot 3515/400KV brushless motor designed for aerial photography, mapping, surveying and other long flight time application scenarios. -Made of international standard aerospace aluminum with high precision CNC machining in Japan (precision 0.001mm) -Each motor is inspected by strict quality standards to ensure consistency from batch to batch.
1: New semi-enclosed structure design, lightweight, high strength, fast heat dissipation, effectively prevent gravel and debris from entering the interior of the motor, with good ventilation and heat dissipation effect. 2: Use of extreme durable high-quality imported bearings, more stable rotation. 3: Fully hand-wound, each motor factory has been dynamic, static testing to ensure the consistency of the motor. 4: IP35 dustproof and waterproof protection, unique structure to provide you with better safety assurance.
- Support lithium battery section: 6S - Propeller: 14-16 inch - Stator diameter:35mm - No-load current:0.5A - Stator end thickness:15mm - Number of stator ends:12N - Number of motor poles:14P - Rotational speed: 400KV±5% - Motor outer diameter:42mm - Shaft diameter:4mm - Motor height:35mm - Max. continuous current:28.4A - Max. continuous power:630W - Internal resistance:85mΩ - Propeller mounting hole pitch:12mm - Motor mounting hole distance:25mm - Motor weight:142g
- 3515/400KV brushless motor×1 - Propeller metal mounting piece Φ2.26mm×1 - M3*6 cup head screws×4 - M3*8 semi-round head screws×4 - PC packing box×1
[HobbyWing] XRotor-40A ESC for Multicopter(Wired Type)
세계 최대의 변속기 메이커 하비윙사의 멀티콥터 전용 ESC Series.
복잡한 변속기 프로그래밍을 최대한 단순하게 설계, 멀티콥터에 최적화된 리니어 리스펀스를 구현한 멀콥전용 변속기.(Opto 방식)
변속기 PCB에 Wire가 부착된 Type 입니다.
600~800급 쿼드, 헥사용
1. Features
1.1 Special core program for multi-rotor controllers greatly improves throttle response. 1.2 Specially optimized software for excellent compatibility with disc-type motors. 1.3 All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive. 1.4 The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable. 1.5 Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) . 1.6 Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components. 1.7 MOSFET with extra-low resistance brings high performance and great current endurance.
2. Specifications
Model
Con. Current
Peak Current (10s)
BEC
LiPo
Programm Item
Weight
Size
Typical Applications* (For reference）
XRotor-10A
10A
15A
No
2-3S
Timing (High/Intermediate)
6.5g
36.5 x 16.4 x 4.1
250 Class Quadcopter
XRotor-20A
20A
30A
No
3-4S
Timing (High/Intermediate)
14g
52.4 x 21.5 x 7
330/450 Class Quadcopter
XRotor-40A
40A
60A
No
2-6S
Timing (High/Intermediate)
26g
68 x 25 x 8.7
550/650 Class Quadcopter
Note: The "Typical Application" in the above form only refers to quadcopter (with 4 motors). When the ESCs are installed on multi-Rotors with 6/8/16 motors, the applicable axle distance can be larger than the value listed in the above form.
3. Compatible or Matchable ESCs
250 QAV
Model
SunnySky 1806
EMAX/Tarot 1806
KV Rating
2000KV
2300KV
1430KV
2280KV
Propellers (2-blade)
5043
6040
5043
6040
5030
6040
5030
6040
Voltage Max. Current
11.1V 6.3A
7.4V 6.1A
11.1V 11.3A
11.1V 9.4A
7.4V 8.6A
11.1V 15.4A
7.4V 1.6A
11.1V 2.7A
7.4V 2.3A
11.1V 4A
7.4V 4.4A
11.1V 8A
11.1V 11.3A
Recommended ESCs
10A
10A
15A
15A
15A
20A
10A
10A
10A
10A
10A
15A
15A
250/300 QAV
Model
T-MOTOR 2204
SunnySky 2204
EMAX 2204
KV Rating
1400KV
2300KV
2300KV
2300KV
Propellers (2-blade)
5030
6020
3050
6020
5043
6040
5030
6030
Voltage Max. Current
11.1V 2.3A
11.1V 3A
11.1V 9A
7.4V 5.7A
11.1V 10.2A
11.1V 7.8A
11.1V 12.2A
12V 7.5A
8V 6.4A
12V 11.5A
Recommended ESCs
10A
10A
15A
15A
15A
15A
20A
15A
10A
15A
Note: 1806 size and 2204 size motors have been widely used on the 250/300 level QAVs. The operating currents will be quite different when paring the same ESC with different batteries (2S/3S) and propellers. Please select the right ESC as per the typical parameters listed out below.
4. Compatibility Test
Compatibility Test Result of Motors and XRotor ESC
Model Brand
Motor Mode
KV
Test Conditions
Compatibility Test Result
Propeller
Voltage
HLY (HengLiYuan)
4822
690
1238/1340
4S Lipo
Passed
390
1238/1240
6S Lipo
Passed
4225
610
1238
4S Lipo
Passed
390
1238/1447
6S Lipo
Passed
SunnySky
V3508
580
APC1238
4S Lipo
Passed
X4112S
400
1447/1550
4-6S Lipo
Passed
485
1447/1550
4-6S Lipo
Passed
X4108S
380
1447/1550
4-6S Lipo
Passed
480
1447/1550
4-6S Lipo
Passed
600
1447/1550
4S Lipo
Passed
X2212
980
1047
3S Lipo
Passed
V2216
900
1047
3S Lipo
Passed
X4110S
400
1238/1550
4-6S Lipo
Passed
Crazy Motor
5008
335
1555/1655
6S Lipo
Passed
Feiyue
5008
340
17-18 inch
6S Lipo
Passed
DualSky
XM5015
390
1550
6S Lipo
Passed
XM5010
700
1450
3S Lipo
Passed
4010
880
1150
3S Lipo
Passed
T-Motor
3506
650
1238/1340
3S Lipo
Passed
3510
430
1340/1550
6S Lipo
Passed
4014
330
1550
6S Lipo
Passed
3508
380
1340/1550
6S Lpo
Passed
........
<제품 이미지>
XRotor Series - 40A(Wired Type)
제품 구성품 4 : [TR] Heavy Duty 16x6.5in Folding Prop (CW)

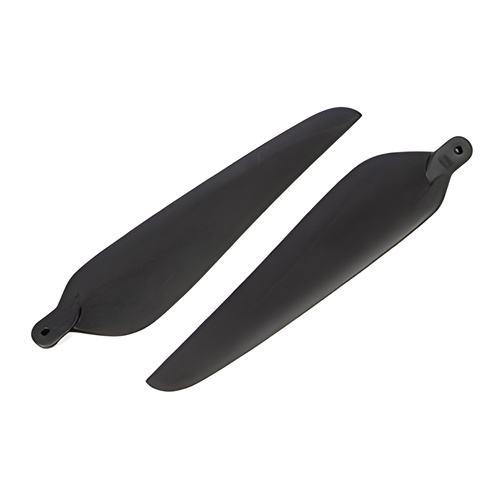

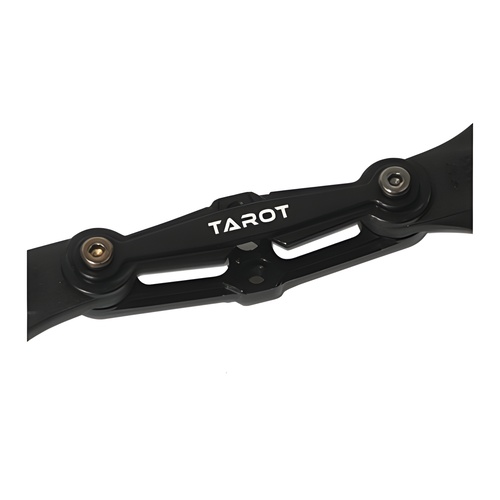

[Tarot] Heavy Duty 16x6.5in
Folding Prop (CW)
타롯사의 5008MR(340KV)/P5010(300KV)/4008MR(320KV)/Dualsky
XM5015HD-6/7(340KV/390KV) 모터 등과 같은 중형 모터용 폴딩 프롭 세트.(유지 보수용)
헤비 리프트 타입으로서 CW(위에서 봤을 때 시계방향) 1 Set 구성입니다.
아래 이미지의 3, 4 번 모터 방향입니다.
프롭 고정용 볼트 및 와셔 포함.
·1665 Folding Props from Tarot;
·Moulds from Switzerland MIKRON 5-axis machining center
manufacturing;
·Uses new optimized wing design and high strength engineered materials;
·Ensures good flexibility and wing stability;
·More than 10% efficiency gains and more power reserves are available;
·Suitable for Quadrotor, Hexarotor, Octorotor and other multi-rotor UAVs.
Size:16 inch
Length of single props:185mm
Weight of single props:about 12g
Center hole diameter: 3.0mm
Mounting base thickness:4.5mm
제품 구성품 5 : [TR] Heavy Duty 16x6.5in Folding Prop (CCW)

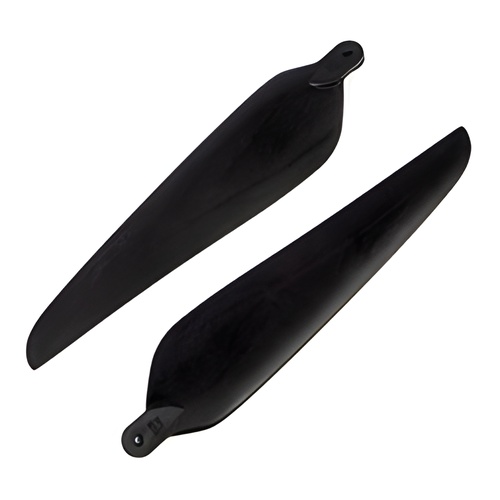

[Tarot] Heavy Duty 16x6.5in
Folding Prop (CCW)
타롯사의 5008MR(340KV)/P5010(300KV)/4008MR(320KV)/Dualsky
XM5015HD-6/7(340KV/390KV) 모터 등과 같은 중형 모터용 폴딩 프롭 세트.(유지 보수용)
헤비 리프트 타입으로서 CCW(위에서 봤을 때 반시계방향) 1 Set 구성입니다.
아래 이미지의 1, 2 번 모터 방향입니다.
프롭 고정용 볼트 및 와셔 포함.
·1665 Folding Props from Tarot;
·Moulds from Switzerland MIKRON 5-axis machining center
manufacturing;
·Uses new optimized wing design and high strength engineered materials;
·Ensures good flexibility and wing stability;
·More than 10% efficiency gains and more power reserves are available;
·Suitable for Quadrotor, Hexarotor, Octorotor and other multi-rotor UAVs.
Size:16 inch
Length of single props:185mm
Weight of single props:about 12g
Center hole diameter: 3.0mm
Mounting base thickness:4.5mm
