RadioMaster continues to lead open-source RC innovation, building on the trusted global legacy of the TX16S series.

The TX16S MK3 elevates performance, precision, and ergonomics to new levels.

Looking for something even more refined? Check out the TX16S MK3 MAX, which features industry-leading AG02 CNC full aluminum

Hall-Effect gimbals, aluminum CNC buttons and knobs, and a carbon-look case for a truly premium experience.

TX16S MK3 — Evolution of the Legend.




Features

• High-Performance MCU : Powered by the STM32 H7 chip for maximum processing power.

• Touchscreen Display : 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

• Precision Gimbals : V6 quad-bearing Hall sensor gimbals (AG02 compatible)

• RGB Programmable Gimbal Light Rings : LUA-controlled, customizable LED gimbal lighting.

• Internal RF Module : Dual-band Gemini 2.4GHz and Sub-G 900MHz

• Smart Balance Battery Circuit : Maximizes battery efficiency and longevity for better battery life.

• Powerful Cooling System : Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.

• Digital audio : Greater sound quality and reduced interference.

• Dual Foldable Antennas : Compact and easy to store without compromising signal strength.

• Built-in Microphone : For future feature expansion.

• Automatic back light adjustment : Makes the screen easier to read indoors and out.

• Built-in Motion Sensor : Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

• Storage : Built-in flash memory with external SD card support.

• Removable shoulder switch panels : Customize your setup with modular switch panels.

Specification

• Item : TX16S MK3 Radio Controller

• Color : Black / Transparent Charcoal

• Voltage Range : 6.6 - 8.4V DC

• Working Current : 1.10A (at max RF output power)

• Radio Firmware : EdgeTX (require 3.0.0 or higher)

• Built-in RF Module : ExpressLRS 2 x LR1121

• Frequency : ISM 2.4GHz and Sub-G 900MHz

• Number of Channels : Up to 16ch

• Gimbal : V6 Hall sensor gimbals (standard)

• MicroSD Card Slot : Yes (card not included)

• Built-in Flash : Yes

• Display : 5-inch IPS touchscreen (800 X 480 resolution)

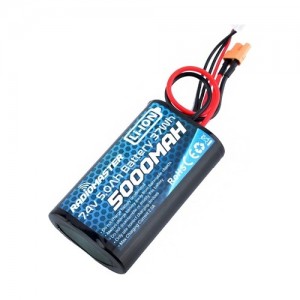

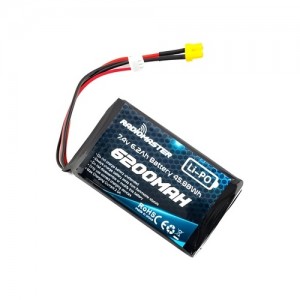

• Battery : Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)

• Upgrade Method : USB / EdgeTX Companion PC software

• Module Bay : JR-compatible module bay for additional modules

• Dimensions : 200*178*88mm

• Weight : 813g  (without battery)



Powered by the advanced STM32H7 processor, it offers lightning-fast performance, smooth operation, and instant responsiveness.

The bright 5-inch 480¡¿800 IPS touchscreen provides a sharp, sunlight-readable interface for easy navigation and programming.

Featuring the Gemini-X dual-band ExpressLRS system with dual LR1121 transceivers, the TX16S MK3 ensures ultra-reliable,

low-latency control across both 2.4GHz and 900MHz bands, providing exceptional signal stability and link quality.

The TX16S MK3 Standard features new V6 quad-bearing Hall-Effect gimbals, using the same high-performance chipset found in the AG02 for improved precision and stability.

External adjustments for travel, centering, and tension let you fine-tune the feel exactly to your preference.

Programmable LED gimbal light rings add a new layer of customization and function, allowing pilots to assign visual indicators for modes,

warnings, or status cues while giving the radio a distinctive, personalized look.



A full-size powerhouse built around the classic, proven TX16S layout—trusted by pilots worldwide.

Every switch, slider, and potentiometer is exactly where it belongs, delivering complete control without compromise.

Modular switch panels allow personalized configurations to match any flying style.

Every aspect of the TX16S MK3 demonstrates thoughtful evolution—powerful, ergonomic, and built for pilots who expect nothing but excellence.



Package Includes

1 * TX16S MK3 Radio Controller

1 * TX16S MK3 Signature Carry Case

1 * 18650 Battery Tray

2 * Replacement Shoulder Panels

1 * Type-C Cable

1 * Screen Protector

1 * 1.5mm Hex Wrench

4 * Low Tension Gimbals Springs

2 * Gimbal Stick Set Screws

1 * Nylon Neck Strap (Lanyard)

1 * RadioMaster Sticker Set

1 * TX16S MK3 Manual

1 * Inventory Card

<¸ðµå º¯°æ ¹æ¹ý>

TX16S MK3 is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology.

It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers.

Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures.

Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.

Find out more about ExpressLRS here

TX16S MK3 is now compatible with mLRS!
The mLRS project offers an open-source, high-performance radio system based on LoRa technology, operating at 2.4 GHz, 915/868 MHz,

and 433 MHz/70 cm, designed to deliver a secure, reliable, and robust link under any conditions.

mLRS is designed with MAVLink and MSP optimization in mind, while also providing a transparent serial link, making it suitable for a wide range of applications.

Its design ensures the strongest possible signal integrity while maintaining a relatively high data rate, balancing performance and reliability without compromise.

Find out more about mLRS here
Visit the online mLRS Web Flasher here



±¸¼º

RP1 ¼ö½Å±â 1°³
T¾ÈÅ׳ª 1°³
¸Þ´º¾ó

The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS.

The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip.

The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.

The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.

Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range.

Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!



• Improved PCB design is better for heat dissipation.
• Upgraded rigid antenna with greater durability and performance.
• LED on the top side of PCB.
• Solder pads are improved and easier to solder to.



Package Includes
1 * RP1 ExpressLRS 2.4ghz Nano Receiver
1 * 65mm UFL 2.4Ghz T Antenna
1 * User Manual
