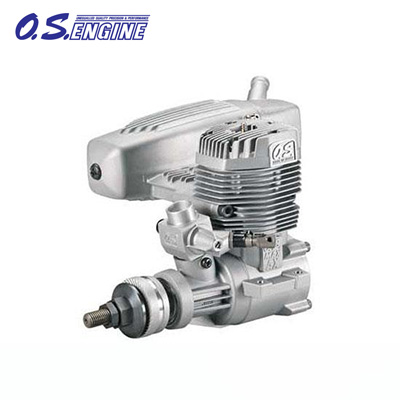

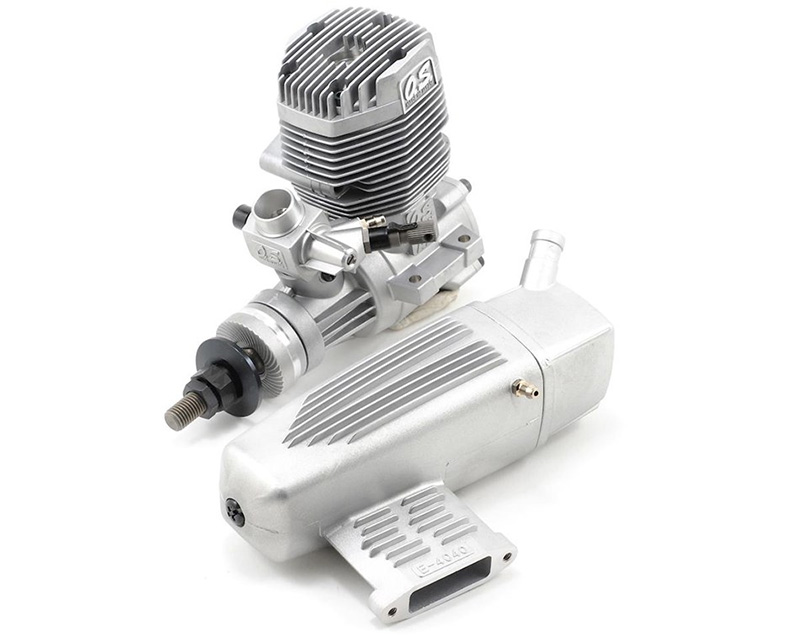

Name: [OS ENGINE] OS 75AX ABL .75 Airplane Glow Engine w/Muffler
Brand: OS ENGINE
SKU: QA03878
Price: 358000 KRW
Availability: InStock

[OS ENGINE] OS 75AX ABL .75 Airplane Glow Engine w/Muffler

머플러, 플러그 포함

38. 엔진, 머플러> 비행기 엔진> O.S

판매가격358,000 원회원 가입시 추가 할인

적립금3,580 원

물류창고

재고 물류창고 2개있음

상품번호QA03878※ 전화문의시 상품번호를 알려주세요

매진임박현재 잔여 수량이 2개 밖에 없습니다!

바로구매

장바구니

상품후기

Email Us

이미지	상품명	선택

기타 필요한 옵션상품 총합계:
0원

옵션 상품을 포함하여 장바구니 담기 >

믿을 수 있는 팰콘샵, 6가지 안심 약속

99.9% 실재고

22년 전문가

확실한 기술지원

출고 전 촬영

실시간 배송알림

Since 2004

Same mounting dimensions as the O.S. Max .61FX Advanced Bi-Metallic Liner process uses a double layer of plating material rather than one thick layer.

This helps the metal bond to the cylinder and makes the plating more durable. Also, the plating process is more consistent, resulting in a more precise fit between piston and sleeve for better compression and longer life.

Power Box muffler design provides more volume for increased power in a very compact shape Angular head design offers increased surface area for better cooling Ball bearing-supported crankshaft 61A carburetor with diagonally placed needle valve eliminating remote needle valve placement

INCLUDES

O.S. Max 75 AX ABL Aircraft Engine with E3010 muffler, carburetor,
8 glow plug, illustrated instruction manual

SPECIFICATIONS

Displacement: 0.75 cu in (12.3cc)
Bore: 1.02 (25.8mm)
Stroke: 0.93 (23.5mm)
Practical RPM: 2,000-16,000 RPM
Power Output: 2.4 PS, 2.37HP15,000 RPM
Weight: 20.39 ounces (578g) wo muffler
26.46 ounces (750g) w muffler
Recommended Props: 14x6, 14x8, 15x7
Crankshaft thread size: 516-24
Distance from center of engine to drive hub: 2.62 (66.6mm)
Distance between exhaust bolt mounting holes 42mm
Height from crankcase bottom to top of cylinder head: 4.07 (103.5mm)
Heightcrankshaft center to top of cylinder head: 3.20 (81.5mm)
Width including mounting tabs: 2.4 (61mm)
Width not including mounting tabs: 1.67 (42.6mm)
Width between mounting holes same side: .98 (25mm)
Width between mounting holes opposite side: 2.04 (52mm)
Diameter of muffler body: 1.92 (48.8mm)
Angle of muffler in relation to engine: 4
Length from end of crankshaft to back of crankcase 5.09 (129.5mm)

High Speed Needle: 1.5 - 2 turns out from fully closed
Low Speed Needle: 2mm gap between the needle and spray bar at full
throttle (looking down the neck of the carb)
