High performance in a compact package!

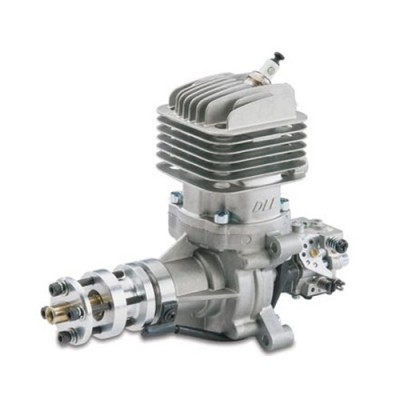

Producing 400 rpm more than the DLE-30, the DLE-35RA offers gas power convenience and performance in a popular size — great for pattern pilots and any fliers eager to give their aerobatic aircraft an extra edge. The rear exhaust design is ideal for tuned pipe setups.

• Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
• Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
• Included muffler's two outlets reduce back pressure and improve performance.
• Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
• Specifications:
  Stock Number: DLEG0435
  Displacement: 34.9 cc (2.13 cu in)
  Bore: 1.52 in (38.5 mm)
  Stroke: 1.18 in (30 mm)
  Total Weight: 2.77 lb (1.26 kg)
  RPM Range: 1,500-8,500
  Output: 4.1 hp @ 8,500 rpm
  Requires: Unleaded gasoline, oil, ignition battery & propeller
  Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

  Technical Data:
  Ignition Battery: 4.8V-12V NiMH, LiPo or LiFe pack (Voltage regulator required if LiPo or LiFe pack is used.)
  Compression Ratio: 7.6:1
  Gasoline/Oil Mix: 30:1
  Replacement Spark Plug: DLEG3526
  Weight Breakdown: Engine: 33.02 oz (936 g); Muffler: 2.61 oz (74 g); Ignition: 5.26 oz (211 g)


  Recommended Products:
  HCAM6426 Hobbico LiFeSource 6.6V 1800mAh 10C LiFe Receiver Pack
  XOAQ1810 Xoar 18x10 Beechwood Propeller

  Recommended Options:
  DLEG3526 DLE 35RA-K26 Spark Plug
  DLEG0301 DLE Prop Drill Guide 30, 35RA & 40
  DLEG5525 DLE Onboard Digital Tachometer
  DLEG9205 DLE Gas Engine Kill Switch v2.0
  FPWM0290 FlightPower 5A Voltage Regular (if LiPo or LiFe pack is used)
  XOAQ1908 Xoar 19x8 Beechwood Propeller
  XOAQ2008 Xoar 20x8 Beechwood Propeller
  XOAQ2010 Xoar 20x10 Beechwood Propeller

  See your favorite hobby retailer for additional recommendations.
  See engine manual for proper break-in procedures.
