Glow size — gasoline economy & ease!

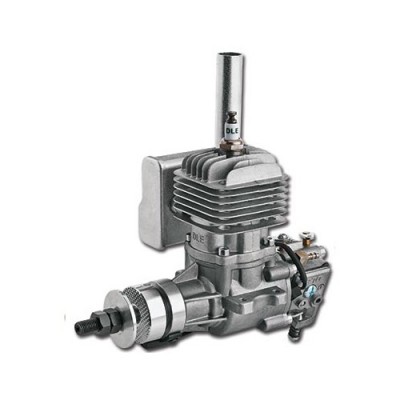

Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow...and a solid buy for value and performance.

Specifications:
Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 14x10, 15x8, 16x6, 16x8, 17x6
Suggested Break-in Prop: n/a

Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required with LiPo or LiFe pack.)
Compression Ratio: 10.5:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG2126
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)

Recommended Products:
ONXM2205 Onyx NiMH Receiver 6.0V 2000 AA Flat Universal Plug
XOAQ1608 Xoar PJA 16x8 Beechwood Propeller

Recommended Options:
FPWP2212 FlightPower FP25 7.4V 2100mAh LiPo Battery w/Star Plug
HCAM6416 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ1606 Xoar PJA 16x6 Beechwood Propeller
XOAQ1706 Xoar PJA 17x6 Beechwood Propeller

See your favorite hobby retailer for additional recommendations.
See engine manual for proper break-in procedures.
