Big Power for Big Aircraft

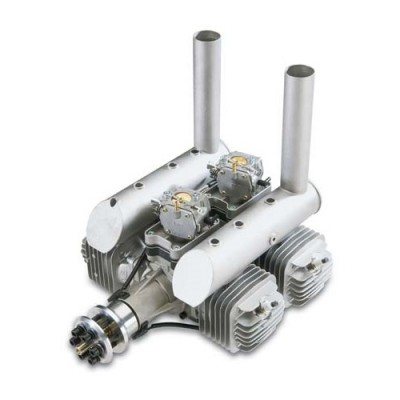

At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get — including mufflers, mount, standoffs and a 6-bolt prop hub — the value-to-price ratio is impressive, too.

Specifications:
Stock Number: DLEG0222
Displacement: 13.6 cu in (222.5 cc)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 12.37 lb (5.61 kg)
RPM Range: 1,000-7,500
Output: 21.5 hp @ 7,500 rpm
Requires: Gasoline, oil, two ignition batteries & propeller
Includes: dual electronic ignition, 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, throttle arm extension, mount & mounting template
Suggested Propellers: 32x10, 32x12 & 34x10

Technical Data:
Ignition Battery: two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (Voltage regulator required with LiPo or LiFe use.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG2226

Recommended Products:
ONXM2205 (2) Onyx NiMH Receiver 6.0V 2000 AA Flat Universal Plug
XOAQ3210 Xoar 32x10 Beechwood Propeller

Recommended Options:
DLEQ1701 DLE Propeller Drill Guide DLE-170/DLE-222
DLEG2226 DLE 222-Q26 Spark Plug
FPWM1212 FlightPower FPRX 7.4V 2100mAh LiPo Batteries
FPWM0290 (2) FlightPower 5A Voltage Regulators (if a LiPo or LiFe pack is used.)
HCAM6426 (2) Hobbico LiFeSource 6.6V 1800mAh 10C LiFe Packs
XOAQ3212 Xoar 32x12 Beechwood Propeller
XOAQ3410 Xoar 34x10 Beechwood Propeller

See your favorite hobby retailer for additional recommendations.
See engine manual for proper break-in procedures.
