Features

• High Voltage (HV) capable (4.8-8.4v input range)
• Perfectly suited for sport and trainer type model aircraft requiring standard size servos
• Excellent performance and value for its class (8.3kg-cm and .17 sec/60¡Æ @8.4v)

• Low wear and tightly meshed all metal gear train
• Dual bearing supported drive train helps maximize smooth operation
• Operating Frequency: 200hz to 333hz

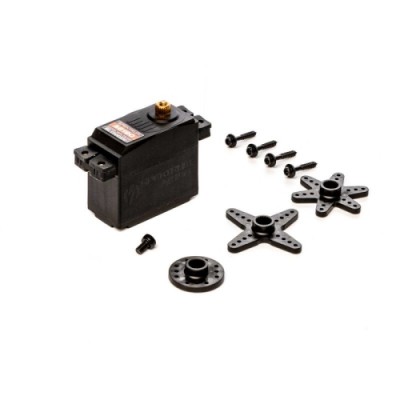

A6190 Standard Metal Gear HV Digital Servo

The Spektrum A6190 Metal Gear High Voltage Digital servo offers impressive performance for pilots looking for an excellent value standard size servo for their Sport and Trainer aircraft. High voltage capable, the A6190 can produce 8.3kg-cm (115 in-oz) of torque at 0.17 sec/60¡Æ speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a 5-pole ferrite motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise position control. Like all Spektrum servos, the A6190 delivers reliability, consistency and performance that are second to none.

Bearing	Dual BB
Bushing Or Bearing	Bearing
Deadband	<1µs
Gear Type	Metal
Input Voltage	4.8V-8.4V
Servo Speed	0.22 sec/60 deg @ 6.0V; 0.17 sec/60 deg @ 7.4V; 0.13 sec/60 deg @ 8.4V
Maximum Servo Torque	40-99 oz-in
Overload Protection	No
Product Height	1.58" (40 mm)
Product Length	1.47" (37 mm)
Product Weight	1.9 oz (54g)
Product Width	0.78" (20 mm)
Programmable	No
Servo Operating Voltage	4.8 - 8.4V (HV)
Servo Size Category	Standard
Servo Type	Digital
Spline Count	23 - Tooth
Torque	90 oz-in (6.48kg-cm) @ 6.0V; 98 oz-in (7kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V
