제품 구성품 1 : [TR] Q330 PDB Edition Frame Kit 드론 키트

TAROT Q330 Frame PDB Edition - KIT

Tarot사의 QAV330 Racing Quad Kit.(V2)

파격적인 가격, 깜찍한 사이즈에 Trust 구조의 엔지니어링 플라스틱으로 제작된 튼튼한 Arm 사양 등등... 초보자 입문 및 교보재용으로 적합한 프레임 입니다.

상판 프레임은 PCB 패턴 설계로 변속기 및 전원 라인은 손쉽게 솔더링이 가능합니다.

Q330은 비등방형 프레임 휠로서 크루즈 비행 등에 적합합니다.

Looking for a little more maneuverability from your next quadcopter?

Q330 frame with downswept style arms that will produce a better CG and will increase the overall maneuverability with total yaw authority.

The latest design also includes super tough glass filled nylon arms with vertical struts to reduce weight and increase the strength of each arm.

The new style arms have pre-molded landing skids to keep your setup simple, however the frame has additional mounting holes for FPV equipment etc.

The lower deck of the Q330 has an integrated printed distribution board (PDB) for neat and easy equipment installation.

The upper and lower deck spacing has been increased to allow for additional equipment to be fitted without ruining the aesthetics of your quadcopter.

• Glass filled nylon arms for increased strength and durability
• Lightweight arm design
• Integrated PDB for easy wiring and tidy installation
• Increased internal space for additional electronics/equipment
• Additional mounting holes for frame upgrades

• Frame Diameter: 330mm
• Frame Spacing: 30mm
• Frame Weight: 150g
• Material: Glass fiber (center plates), Nylon filled glass fiber (arms)

• 4 x 2204 / 2206 Size motors
• 4 x 6045 Props
• 4 x 12~20amp ESC's
• Flight Controller
• FPV Gear (optional)
• 3S 1300-1200mAh LiPoly battery


제품 구성품 2 : [RadioLink] 미니 픽스호크 크로스플라이트 비행컨트롤러 + TS100 Mini M8N GPS

제품 구성품 3 : [RTS] RS2205-2300KV 레이싱드론용 정방향 모터

[RTS] RS2205-2300 Race Spec' Motor(2300KV/CW)

현존 최고의 출력 특성을 자랑하는 RTS사의 레이싱 드론용 RS2205 컴피티션 파워 시스템!

일반적인 저가형 P-Type 네오디움이 아닌 N-Type(N52) 네오디움 자석을 채용, 아울러 일본산 MineBee(NMB) 베어링이 기본사양으로 탑재, 또한 하드한 추락에도 휘지 않고 버틸 수 있도록 고주파 열처리된 Hollow(중공) 방식의 탄소강 샤프트를 채용!

BM5045 프롭과 조합시 최대 모터당 1.1Kg이라는 극악 파워(?)를 뿜어내는 괴물 모터입니다.

정피치 모터(CW) 모터 1개 구성입니다.

※ 주의 : 모터에는 CCW 로 표기되어 있으나, 실제로 프롭 어댑터가 은색인 정방향(CW) 제품입니다.

혼동을 방지하기 위해 팰콘샵에서는 정방향(CW)으로 표기하고 있습니다.

RTS RS2205 Race Spec Motors ;

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This “cool” feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.

Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.

Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.

Key Features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

Windings made from copper of high purity



- Model: RS2205

- KV: 2300kv

- Weight: Approx. 30g with wires

- Wire AWG: 20AWG

- Stator Diameter: 22mm

- Stator Height: 5mm

- Shaft Diameter: 3mm

- Configuration: 12N14P

- Motor Diameter: 27.9mm

- Motor Height: 31.7mm

- Prop Adapter Shaft Thread: M5

- Input voltage: 3S-4S (12.6 - 16.8v)

- KV2300 With HQ5045 BN Max.thrust:1024g


제품 구성품 4 : [RTS] RS2205-2300KV 레이싱드론용 역방향 모터

[RTS] RS2205-2300 Race Spec' Motor(2300KV/CCW)

현존 최고의 출력 특성을 자랑하는 RTS사의 레이싱 드론용 RS2205 컴피티션 파워 시스템!

일반적인 저가형 P-Type 네오디움이 아닌 N-Type(N52) 네오디움 자석을 채용, 아울러 일본산 MineBee(NMB) 베어링이 기본사양으로 탑재, 또한 하드한 추락에도 휘지 않고 버틸 수 있도록 고주파 열처리된 Hollow(중공) 방식의 탄소강 샤프트를 채용!

BM5045 프롭과 조합시 최대 모터당 1.1Kg이라는 극악 파워(?)를 뿜어내는 괴물 모터입니다.

역피치 모터(CCW) 모터 1개 구성입니다.

※ 주의 : 모터에는 CW 로 표기되어 있으나, 실제로 프롭 어댑터가 검정색인 역방향(CCW) 제품입니다.

혼동을 방지하기 위해 팰콘샵에서는 역방향(CCW)으로 표기하고 있습니다.

RTS RS2205 Race Spec Motors ;

Introducing the Emax Race Spec family of high performance brushless motors for multirotor FPV racing. Redesigned and engineered to perform better than most in it’s class, every motor is precision crafted within tight tolerances. Paired with performance driven props from any leading manufacturer will result in unreal thrust.

Cooling:
The unique fins machined into the bell draw up cool air from the motor base and through the coils as the motor spools up. The faster it spins, the more air it ventilates. Cooling fins significantly reduce heat soak by at least 30%. This “cool” feature allows the RS2205 to not only have a longer lasting motor, but also harness the power of N52 magnets.

N52 Magnets:
Uses the highest grade magnets. Better acceleration, stopping power, and sustained RPMs during high kv.

Bearings:
Genuine Japanese NMB Bearings provide long lasting, smooth performance.

Thrust:
Produces over +1,000g of thrust using 4S and GF5045BN.

Key Features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.

Windings made from copper of high purity



- Model: RS2205

- KV: 2300kv

- Weight: Approx. 30g with wires

- Wire AWG: 20AWG

- Stator Diameter: 22mm

- Stator Height: 5mm

- Shaft Diameter: 3mm

- Configuration: 12N14P

- Motor Diameter: 27.9mm

- Motor Height: 31.7mm

- Prop Adapter Shaft Thread: M5

- Input voltage: 3S-4S (12.6 - 16.8v)

- KV2300 With HQ5045 BN Max.thrust:1024g


제품 구성품 5 : [CY] Cyclone-35A BLHeli_S ESC (2S~5S) for Racing Drone

[Cyclone] Cyclone-35A BL Heli-S ESC (DShot150/300/600/One Shot)

초 소형! 초 경량!

최신 EFM8BB21F16G 칩셋을 장착한 소형 드론용 변속기로서 BL Heli-S 및 Shot 150/300/600 디지털 쓰로틀 방식을 지원합니다.

6-레이어, 6온스 도핑된 PCB를 사용, 대전류에도 충분히 버틸 수 있도록 설계, 아울러 RGB 컬러 LED 칩이 장착되어 있습니다.

입력전압은 최대 5S (18.5V)까지 가능합니다.

- Utilizes high-performance EFM8BB2 50MHz MCU

- Capacity : 30A

- Input Voltage: 2S~5S(7.4V~18.5V)

- Continuous Current : 30A

- Burst Current(10s) : 40A

- BEC : NO(Opto)

- Programming : YES

- PCB+ power cord length: 12cm

- PCB+ signal line length: 16cm

- Dimension : 13x25x5.4mm

- Weight: 5.4g(incl' Wire and Harness)

<Features>

The latest EFM8BB21F16G high speed control chip.
A 6-layer, 3-ounce copper-thick and high-quality PCB is adopted, and the layered layout of large current and small control signal is adopted to enhance the anti-jamming ability. The gold plating process on PCB surface can effectively improve the current resistance and heat dissipation ability of electric regulation.
Integrated RGB multi-color bright LED night light, night flight is even more dazzling.
It supports BLHeli-S and DShot 150/300/600 digital throttle. It has strong anti-jamming ability and quick response.
By default, the hardware PWM is turned on and the Damped Light hardware PWM drives the motor. The noise is low and the throttle response is smoother.
Damped Light mode, regenerative braking function, make motor deceleration more sensitive and effective, control more precise; Active continuous current technology, so that the battery recovery power, prolong the duration.

- Voltage: Support 2-5S power supply
- Working current: 35A / Continuous current 35A, peak 45A/10s
- Support protocols: dshot 125/300/600, oneshot 125
- Weight: 6g
- Size: 13*28.5
- Power cord length: 18AWG 90mm
- Signal line length: 150 mm


<제품 이미지>

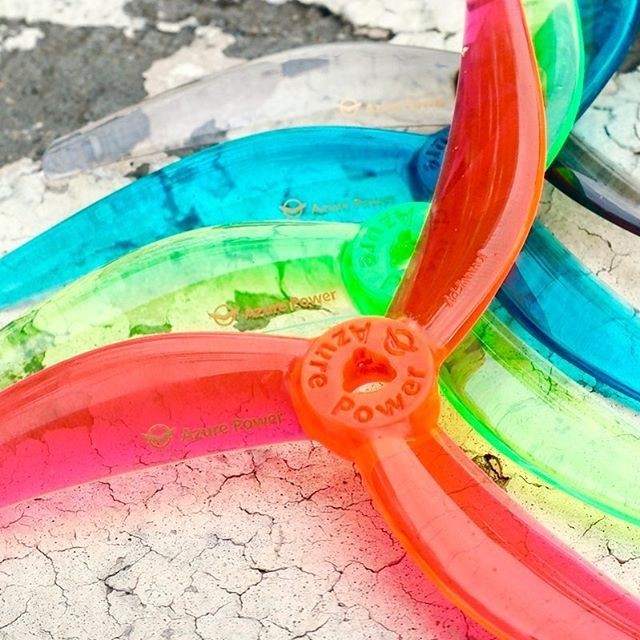

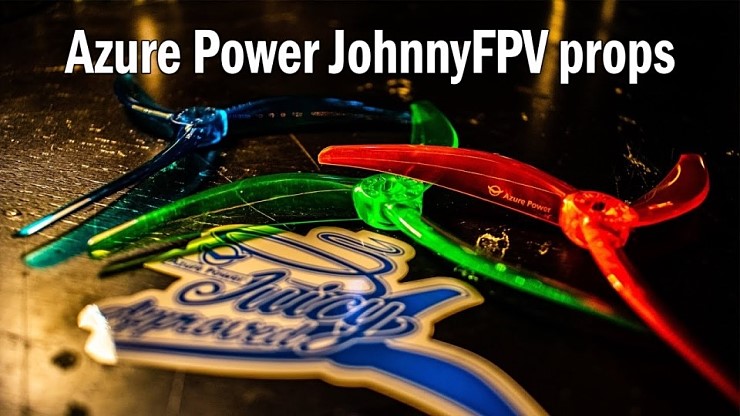

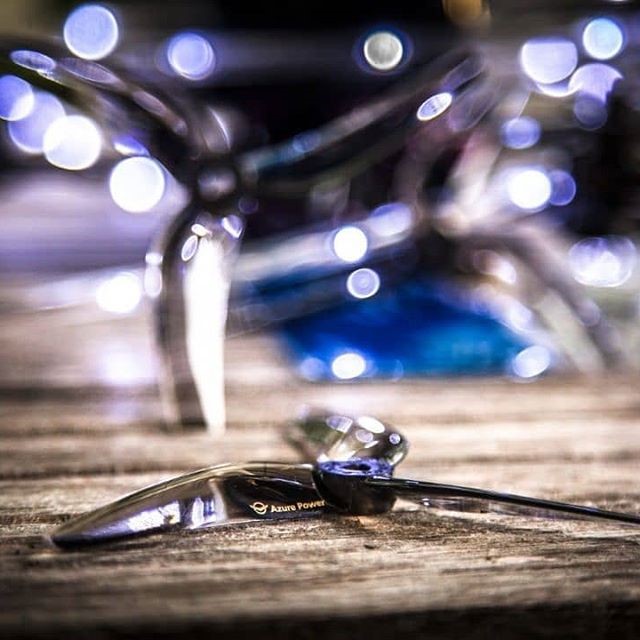

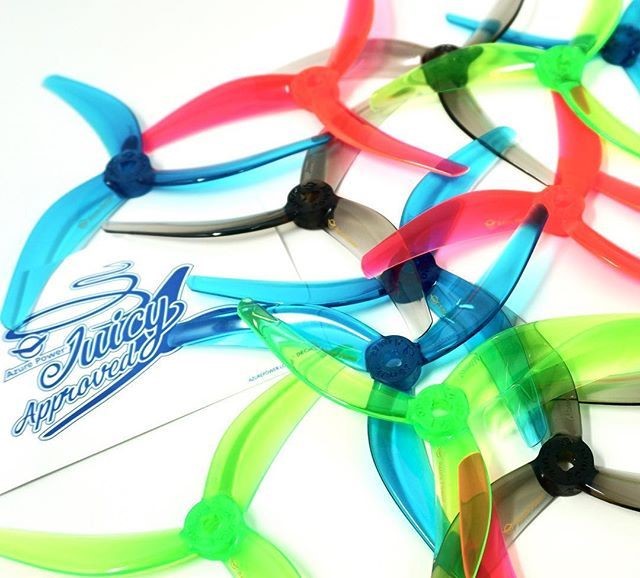

제품 구성품 6 : [Azure Power] 4.8x3.8 프리스타일 프롭펠라 (1대분)

Azure Power 3 Blades Johnny Freestyle, POPO Compatible

Material & Style

제품 구성품 7 : PT-B1400N-SP55 (11.1V, 3S1P, 55C /JST-XT) 리튬 폴리머 배터리

Poly-Tronics 7th Generation 1,400mAh (11.1V, 3S1P, 55C+/JST-XT)

PT-B1400N-SP55 (11.1V, 3S1P, 55C+)

제품 구성품 8 : ST450 멀티 충전기 (220V 입력, 2~4S LiPo, LiHV, LiFe, NiMH)

※ 기본적으로 XT60 충전 코드가 같이 포함되어 있습니다.

배터리 잭이 XT60 이 아니면 충전 코드나 변환잭이 별도로 필요합니다.

제품 구성품 9 : [Flysky] 스트라이커 ST10 10채널 드론용 조종기 + ST-RX8s 수신기 세트
