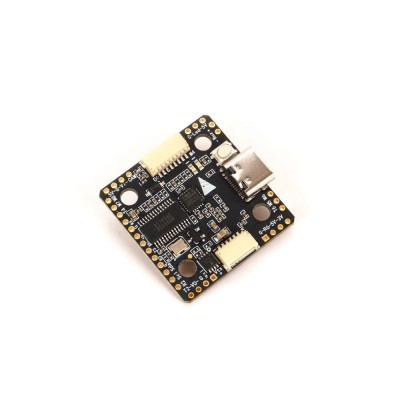

Kakute H7 Mini Flight Controller

- 2020 »çÀÌÁî FCÀÔ´Ï´Ù.

- BMI270 ÀÚÀ̷μ¾¼­¸¦ »ç¿ëÇÕ´Ï´Ù.

- 5V/2A BEC°¡ ³»ÀåµÇ¾î ÀÖ½À´Ï´Ù.

- µðÁöÅÐ/¾Æ³¯·Î±× VTX ¸ðµÎ »ç¿ë °¡´ÉÇÕ´Ï´Ù.

- °£°áÇÏ°í È¿À²ÀûÀÎ ±¸Á¶¸¦ °®°í ÀÖ½À´Ï´Ù.

±¸¼º

ÇöóÀÌÆ® ÄÁÆ®·Ñ·¯ 1°³

The Holybro Kakute H7 Mini is a Flight Controller full of features including onboard VTX ON/OFF Pit Switch with battery voltage,

HD System/VTX & 4in1 ESC plugs, barometer, OSD, 6x UARTs, easy soldering layout and much more.

The Kakute H7 Mini builds upon the best features of its F7 predecessor and further improves on hardware components and layout.

HD ready, it has an easy plug to power HD system like Caddx Vista while supporting analog system. It features an onboard

¡°VTX ON/OFF Pit Switch¡± that allows you to completely power off the video transmitter using a switch on your RC transmitter.

Great if you are working on your drone, waiting for the GPS to get a fix, getting ready for a race while preventing it from overheating or interfering with others flying.

It has 6x dedicated UART ports with built-in inversion for peripherals, 4in1 ESC plug, and x8 compatible with M5-M8 Signal Pads, allowing

easy support for x8 Octocopter configuration. The integrated BetaFlight OSD makes it easy to display important information on your FPV

display like battery voltage, flight time, warnings, RSSI, smart audio features and more. It is also ready for autonomous flight with the on-board barometer.

There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.

Update: Version 1.3 now has 1Gb Nand-Flash memory & BMI270 (instead of MPU6000)

Specification

• MCU - STM32H743 32-bit processor running at 480 MHz

• IMU - BMI270 (Currently shipping)

• Barometer - BMP280

• OSD - AT7456E

• Onboard Flash: 128Mbits

• VTX ON/OFF Pit Switch - Switch can be enable using USER1 in Betaflight Mode tab.

Warning: Do not enable this pit switch if you are using DJI FPV Remote Controller

• 6x UARTs (1,2,3,4,6,7)

• 9x PWM Outputs (8 Motor Output, 1 LED)

• Battery input voltage: 2S-6S BEC 5V 2A

• Mounting - 20 x 20mm, ¥Õ3.6mm hole with M3 & M2 Grommets

• Dimension - 31x30x6mm

• Weight - 5.5g

• JST-SH1.0_8pin port (For 4in1 ESCs)

• JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)

Package Includes

1x Kakute H7 Mini Flight Controller

4x M2 Silicon Grommets

4x M3 Silicon Grommets

1x JST-SH1.0_8pin Cable (For ESCs)

2x JST-SH1.0_6pin Cable (For DJI Air Unit)

1x JST-SH1.0_6pin Colored Silicon Cable (For Caddx HD System and other VTX)
