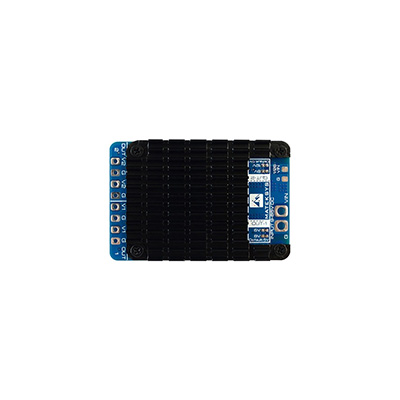

Matek POWER MODULE PM20S-2
- 2가지 출력이 동시에 나오는 듀얼BEC입니다.
- 대형 방열판이 장착되어 있습니다.
- 입력전압은 20셀까지 가능합니다.(85V)
- 막강한 출력을 보여주는 BEC입니다.
- 대형 기체에 강력 추천드립니다.
1번 BEC 5.3V / 6.1V / 8.1V 출력 선택. 연속 15A , 최대 22A
2번 BEC 5.3V / 8.1V / 12.2V 출력 선택. 연속 15A, 최대 22A
구성
하단 사진 참조
PM20S-2 is made with 100V DC components.
Support 9V to 85V DC operating Input voltage with 85V TVS protection
2x independent Step-Down Voltage Regulators
Regulator 1 , 5.3V / 6.1V / 8.1V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
Regulator 2 , 5.3V / 8.1V / 12.2V output options. supports typical continuous output current of up to 15A, Peak current of up to 22A.
1K:25K voltage divider built-in for 3.3V based voltage ADC
Size & Weight: 61x40x15mm, 63g
Regulator 1
Output voltage 5.3V / 6.1V / 8.1V options.
Output voltage tolerance 1.5%
Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
Supports typical continuous output current of up to 15A, Peak current of up to 22A.
Output ripple 25mV (VIN=42V, Output 5.3V @ 5A), 35mV (VIN=58V, Output 5.3V @ 15A)
Standby current: 10~30mA
Reverse Input voltage protection: No
Thermal Shutdown 150C
Output Short-circuit tolerant (1 seconds)
Overcurrent protection & self-recovery
Tip: Input voltage >= 15V is required for continuous output current of 15A
Regulator 2
Output voltage 5.3V / 8.1V/12.2V options.
Output voltage tolerance 1.5%
Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
Supports typical continuous output current of up to 15A, Peak current of up to 22A.
Output ripple 58mV (VIN=58V, Output 12V @ 5A)
Standby current: 10~30mA
Reverse Input voltage protection: No
Thermal Shutdown 150C
Output Short-circuit tolerant (1 seconds)
Overcurrent protection & self-recovery
Tip: Input voltage >= 15V is required for continuous output current of 15A
마텍 홈페이지에 가시면 세팅에 관한 많은 자료를 찾아보실 수 있습니다.
![[팰콘샵] 마텍 PM20S-2 파워 모듈](https://www.susungrc.com/web/upload/NNEditor/20250306/Mateksys_PM20S_4.jpg)
| 4~8S Input | 9-10S Input | 11-14S Input | 15~20S Input | |
| Output | Single BEC continuous output. After continuous running for 5 minutes, the board temperature stabilized at 80~90℃. No Thermal shutdown @ Room Temperature 20℃. | |||
| 5.3v | 15A | 15A | 15A | 13A |
| 6.1V | 15A | 15A | 15A | 12A |
| 8.1V | 15A | 15A | 13A | 12A |
| 12.2V | 15A | 13A | 10A | 10A |
| Peak output current 22A. Peak current usually makes sense for servos. Servos do not always run at continuous high loads. | ||||
