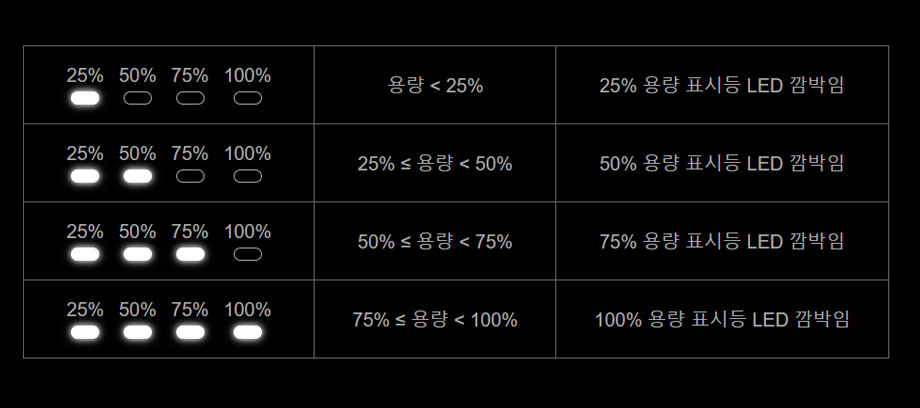

ESC ¼³Á¤ ÇÁ·Î±×·¥ : https://esc-configurator.com

< »ó¼¼ Á¦¿ø >

- Utilizes high-performance EFM8BB2 50MHz MCU

- Capacity : 45A

- Input Voltage: 2S~6S(7.4V~22.2V)

- Continuous Current : 45A

- Burst Current(10s) : 55A

- BEC : NO(Opto)

- Programming : YES

- PCB+ power cord length: 12cm

- PCB+ signal line length: 16cm

- Dimension : 13x28.5x5.4mm

- Weight: 6.6g(incl' Wire and Harness)

• Using the latest EFM8BB21F16G high speed control chip. By default, the hardware for PWM is turned on and the Damped Light hardware for PWM drives the motor. The noise is low and the throttle response is smoother.
• A 6-layer, 3-ounce copper-thick and high-quality for PCB is adopted, and the layered layout of large current and small control signal is adopted to Enhance the anti-interference ability. The gold plating process on for PCB surface can effectively improve the current resistance and heat dissipation ability of ESC.
• The ESC supports BLHeli-S and DShot 150/300/600 digital throttle. It has strong anti-interference ability and fast response capability.
• Integrated for RGB multi-color bright LED night light, night flight is even more dazzling.
• Damped Light mode, regenerative braking function, make motor deceleration more sensitive and effective, control more precise; Active continuous current technology, so that the battery recovery power, prolong the duration.

< ÇȽºÈ£Å©(¾ÆµÎÆÄÀÏ·µ)¿¡ »ç¿ë½Ã º¯¼Ó±â ¼³Á¤ ¹æ¹ý >

* Âü°í : ÀÌ ¼³Á¤ ÇÏÁö ¾Ê°í ±×³É ÀÏ¹Ý º¯¼Ó±âó·³ MAIN OUT ´ÜÀÚ¿¡ ¿¬°áÇؼ­ ¾²¼Åµµ ¹«¹æÇÕ´Ï´Ù.

 ÀÌ ¼³Á¤À» ÇÏ´Â ÀÌÀ¯´Â LED ¸¦ ÄѰųª, DSHOT ±â´ÉÀ» »ç¿ëÇϱâ À§ÇÔÀÔ´Ï´Ù.

BRD_SAFETY_DEFLT = 0 (¾ÈÀü ½ºÀ§Ä¡ ±â´É OFF)

MOT_PWM_TYPE = 6 (DSHOT 600)

SERVO_BLH_AUTO = 1 (BLHeli Æнº¾²·ç ±â´É È°¼ºÈ­)

SERVO1_FUNCTION = 0 (MAIN OUT ´ÜÀÚÀÇ Ãâ·ÂÀ» ²û)

SERVO2_FUNCTION = 0

SERVO3_FUNCTION = 0

SERVO4_FUNCTION = 0

SERVO9_FUNCTION = 33 (AUX OUT ´ÜÀÚÀÇ Ãâ·ÂÀ» ÄÔ)

SERVO10_FUNCTION = 34

SERVO11_FUNCTION = 35

SERVO12_FUNCTION = 36

À§¿Í °°ÀÌ ¼³Á¤ÇÏ°í, º¯¼Ó±â¸¦ MAIN OUT ÀÌ ¾Æ´Ñ AUX OUT ¿¡ ¿¬°áÇÑ ÈÄ,

ÇȽºÈ£Å© ÀçºÎÆà ÈÄ ¾Æ·¡ÀÇ ESC ¼³Á¤ ÇÁ·Î±×·¥¿¡ Á¢¼ÓÇؼ­ º¯¼Ó±â ¼³Á¤ÀÌ °¡´ÉÇÕ´Ï´Ù.

ESC ¼³Á¤ ÇÁ·Î±×·¥ : https://esc-configurator.com

BLHeli_S Æß¿þ¾î ¼³Á¤¿¡ ´ëÇÑ ÀÚ¼¼ÇÑ ³»¿ëÀº ¾Æ·¡ µ¿¿µ»óÀ» Âü°íÇϼ¼¿ä.

We suggest our customers upgrade their modules and receivers' ELRS version to 3.3.0. Significantly,
the module and receiver have to be in the same ELRS version, otherwise, the frequency cannot match successfully.

Click to download the firmware of the ELRS Nano Receiver(V3.3.0 Version).


Know More About ExpressLRS
ExpressLRS is an open-source RC link for RC applications. Everyone could find this project on Github or join the discussion in Facebook Group.

ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance
in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported
with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in
ELRS receiver, ELRS TX module for JR bay, or Nano bay. BETAFPV team take part in this project and provide a series of ExpressLRS components.



Configuration & Bind
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board.
So make sure your flight controller board supports the CRSF serial protocol.
Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.

The connection between the ELRS Nano receiver and the FC board is shown below.
Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator "Ports" tab.


On the "Configuration" tab, select "Serial-based receiver" on the "Receiver" panel, and select "CRSF" as the protocol.
Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.

Nano receiver could enter binding status by power on/off three times.

• Plugin and unplug nano receiver three times;
• Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
• Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
• If the receiver has a solid light, it's bound.

Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.

BETAFPV ELRS Nano receiver user manual download.

These folding TPU holders for BETAFPV's ExpressLRS 2.4G receiver have been designed by Ridwan Hughes to be reusable and easily printable.
You could download the STL file on Thingiverse.



Package
1 * BETAFPV ELRS Nano receiver
1 * BETAFPV T antenna
2 * Spare shrink tube
4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
1 * pin header 1x4
1 * Nano receiver user manual
