Convenience and power for quarter scale!

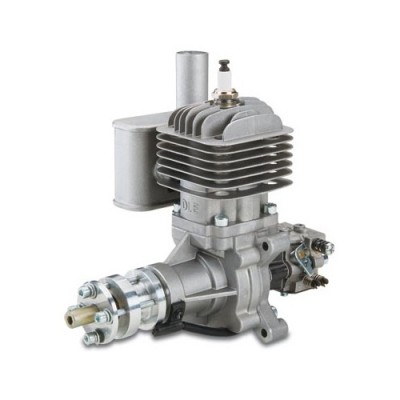

With the DLE-30, you get the economy of a gasoline engine in the size of a glow engine.

Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance.

A rear-mounted pumper carb ensures easier installs and smooth idling before you fly — and dependable fuel flow while you are flying.

Specifications:
Stock Number: DLEG0031
Displacement: 30.5 cc (1.861 cu in)
Bore: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Weight: 2.4 lb (1.10 kg)
RPM Range: 1,600-8,500
Output: 3.7 hp @ 8,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & manual
Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
Suggested Break-in Prop: 18x8

Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPopack (Voltage regulator required with LiPo or LiFe use.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: DLEG3526
Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)

Recommended Products:
ONXM2205 Onyx NiMH Receiver 6.0V 2000 AA Flat Universal Plug
XOAQ1808 Xoar PJA 18x8 Beech Propeller

Recommended Options:
FPWP2212 FlightPower FP25 7.4V 2100mAh LiPo Battery w/Star Plug
FPWM0290 FlightPower 5A Voltage Regulator (if LiPo or LiFe pack is used.)
HCAM6416 Hobbico LiFeSource 6.6V 1100mAh 10C LiFe Pack
XOAQ1810 Xoar PJA 18x10 Beechwood Propeller
XOAQ1908 Xoar PJA 19x8 Beechwood Propeller
XOAQ2008 Xoar PJA 20x8 Beechwood Propeller
DLEG0301 Propeller Drill Guide 30/35RA/40T

See your favorite hobby retailer for additional recommendations.
See engine manual for proper break-in procedures.
