상품상세설명

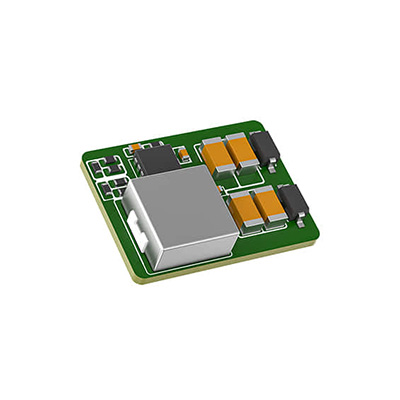

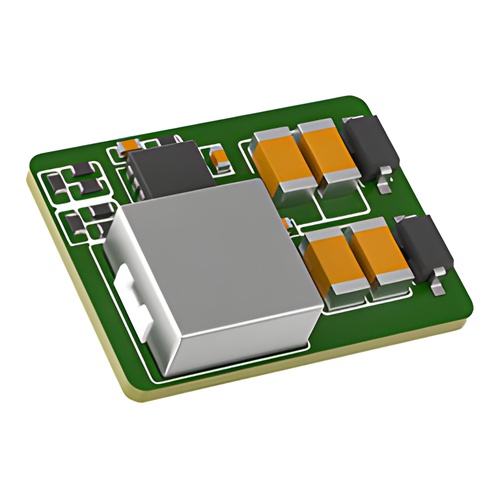

Blitz BEC Module V1.1

- Blitz사의 BEC 보드입니다.

- 6셀 사용이 가능합니다.

- 연속2A/최고3A의 출력입니다.

- 출력전압은 5V와 12V 중 선택하실 수 있습니다.

12V라고 적힌 패드에 납땜으로 쇼트시키시면 12V출력이 됩니다. 기본은 5V입니다.

구성

BEC 1개

PRODUCT DESCRIPTION

The BLITZ ESC features step-down switch mode, high-efficiency synchronous rectification,

and the ability to step down from an input voltage of up to 35V to a low output stable voltage, which makes it ideal for step-down voltage applications.

It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (6 to 35V).

* Short connect ON-12V, the output voltage is 12V. When disconnected, the output voltage is 5V.

Features

- Step-down switch mode

- High-efficiency synchronous

- Wide 6V to 35V Input voltage range

- The voltage output can be 5V or 12V adjustable. (default 5V)

Specs

- Input voltage: 6-35V

- Output voltage / current: 5V or 12V. Average 2A / Peak 3A

- Conversion efficiency: the average efficiency of output 12V is above 92%, and the average efficiency of output 5V is above 88%.

- Size: 12*14*4.5mm

- Pins distance: 2.55mm

- Weight: 1.8g

Package Included

- BLITZ PSM BXN 5D2UD6 BEC * 1pc

- Connecting cables *1 set

* If there is sparking phenomenon when the power is turned on, it is recommended that the input voltage should not exceed 26V.
