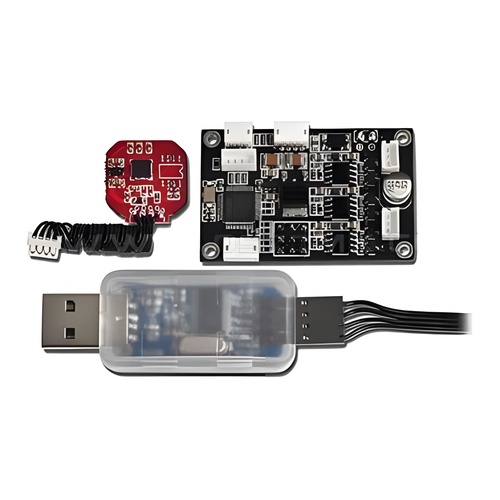

TAROT T-2D Gimbal Stabilizer Control Board
Set (w/USB)
TAORT T-2D 짐벌용 2축 자이로 센서 및 컨트롤 보드 세트.(유지 보수용)
PC GUI Program 연결용 USB 젠더 포함.
· Apply to GOPRO brushless gimbal TL68A08 and other similar products. Be
utilized to filming and aerial photography.
· GOPRO Hero3 AV line out
· Reverse power supply protection and power voltage compensation.
· 2-axis stabilization. Pan, tilt and roll stabilization.
· Two control mode: attitude locking mode and attitude following mode (FPV).
· Adjustable gains and 3D attitude display on PC software
· Support stick rate mode and position mode.
· Supported receiver type: conventional/S-BUS/DSM2/DSMJ/DSMX
· Supported transmitter type: PPM/PCM/2.4G
· Operating supply: DC 7.4V~14.8V (12V recommended)
· Operating current:200mA- 500mA
· Operating temperature: -15°C ~ 65°C
· Max angular rate: 2000° /sec
· Max acceleration: 16g
· Update rate:2000Hz
· Control range: -45°~45°(roll)¡A-135°~90°(tilt)
· Applicable camera : GOPRO Hero3
· Power supply port: DC 7.4V~14.8V (12V recommended)
· Gimbal controller connector: Via USB module connected to the computer, used to
adjust the gimbal controller parameter and status monitoring.
· Motor driver connector: Via USB module connected to the computer, used to
adjust the motor driver module( motor poles and power), and voltage and current
monitoring.
· Receiver and camera control connector¡G
· R: conventional receiver roll channel input
· T: conventional receiver tilt channel input
· C: conventional receiver stick mode channel input (rate mode and position
mode)
· S: S-BUS receiver or conventional receiver camera input
· P: camera control servo output (Infrared camera module can be connected)
· +: 5V output
· -: power ground
· Satellite port: to connect satellite receiver
· Roll and tilt motor port: Used to connect motor
· Sensor port: Used to connect sensor module
