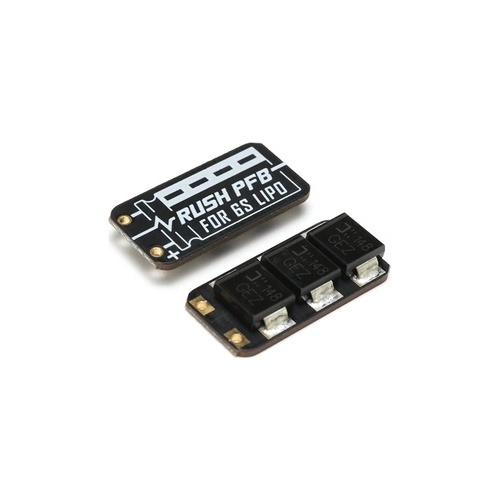

RUSH FPV BLADE POWER FILTER BOARD LITE
- 배터리의 전류를 안정화 시켜주는 콘덴서와 스파크 방지 기능이 들어간 보드입니다.
- 6셀 리포 배터리까지 사용 가능합니다.
구성
콘덴서 1개
PCB w/TVS 1개
The RUSH BLADE Power Filter Board Lite by RUSHFPV was created to help the RUSH BLADES ESCs achieve complete filtering due to its compact structure and high power.
Excessive voltage peaks can cause interference to other components. Current surges generated during crashes can also have a strong impact on the MOSFET's and the power supply and can cause damage.
The RUSH PFB Lite is small in size and can be installed in more compact builds as a supplementary device for the filter.
It is equipped with a single 35V 470uF high-speed solid capacitors, and the parallel ESR is very low 5 m0 (TEST FREQ @10KHz)!
It has a good filtering effect on high-frequency interference generated by ESC.
There are 3 high-power TVS diodes on board, which can cut voltage peaks at ns speeds,
and absorb high-voltage surges caused by collisions of the propeller during a crash in time to protect the
field-effect tube and other components from the surge. We recommend installing it in a high-power 6S brushless system.
